Wheel Sensor Replacement

NOTE: Install the sensors carefully to avoid twisting the wires.

Front

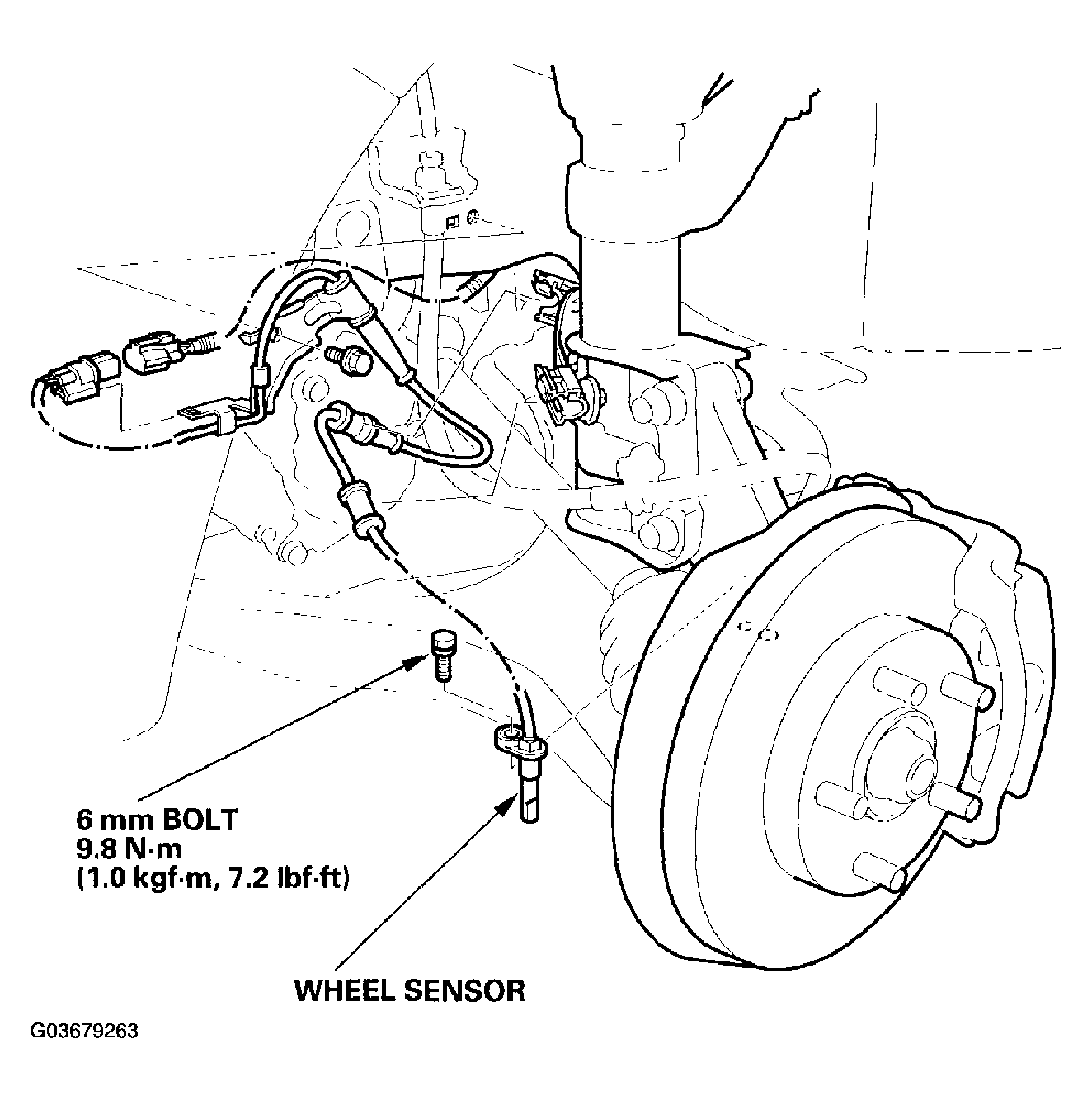

Fig 1: Installing Sensors And Torque Specifications (Front)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

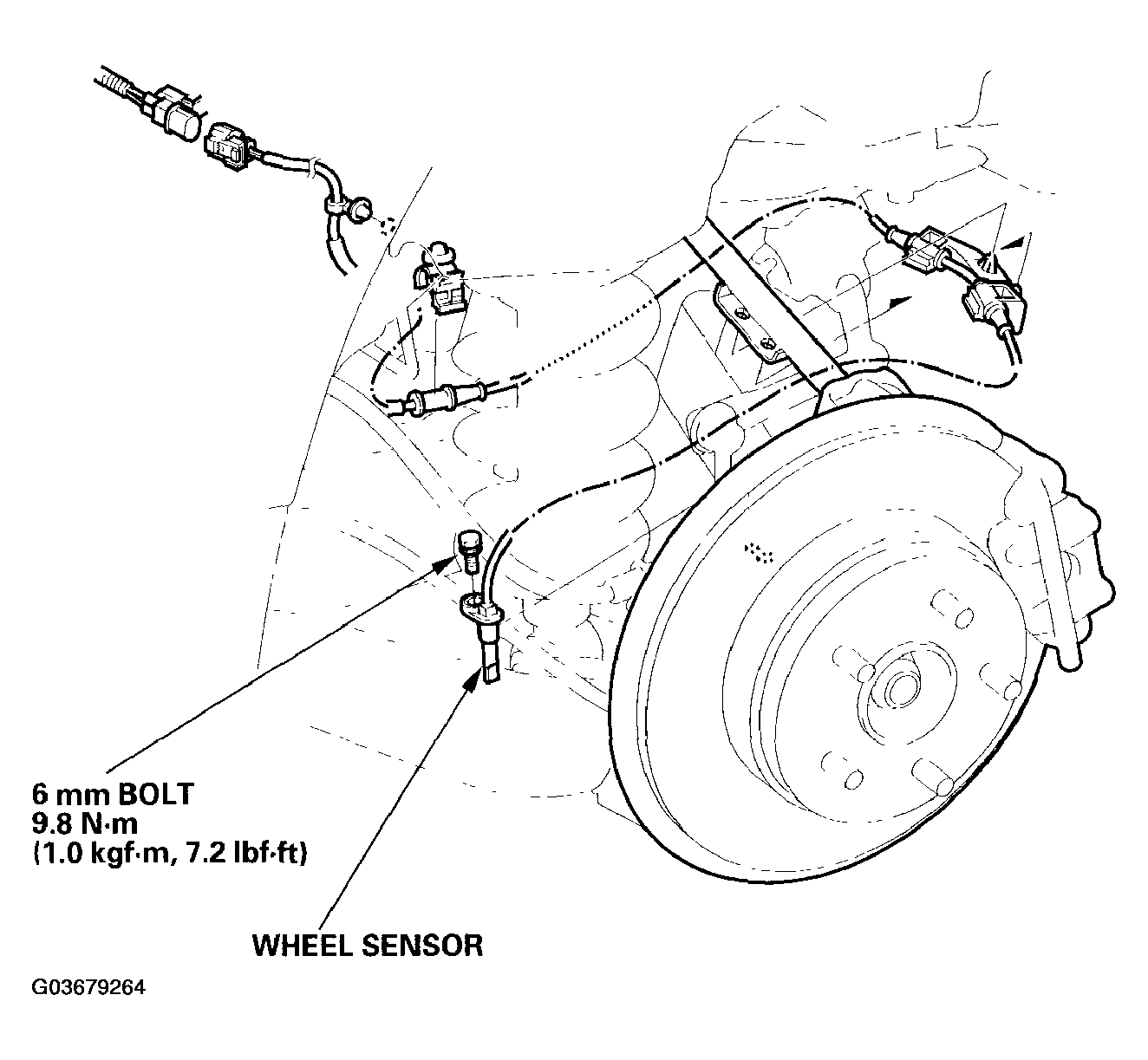

Fig 2: Installing Sensors And Torque Specifications (Rear)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
