ABS Modulator-Control Unit Removal and Installation: Removal

Push in the locking tab (A) and pull up the lock (B) of the ABS modulator-control unit 47P connector (C), and the connector disconnects itself.

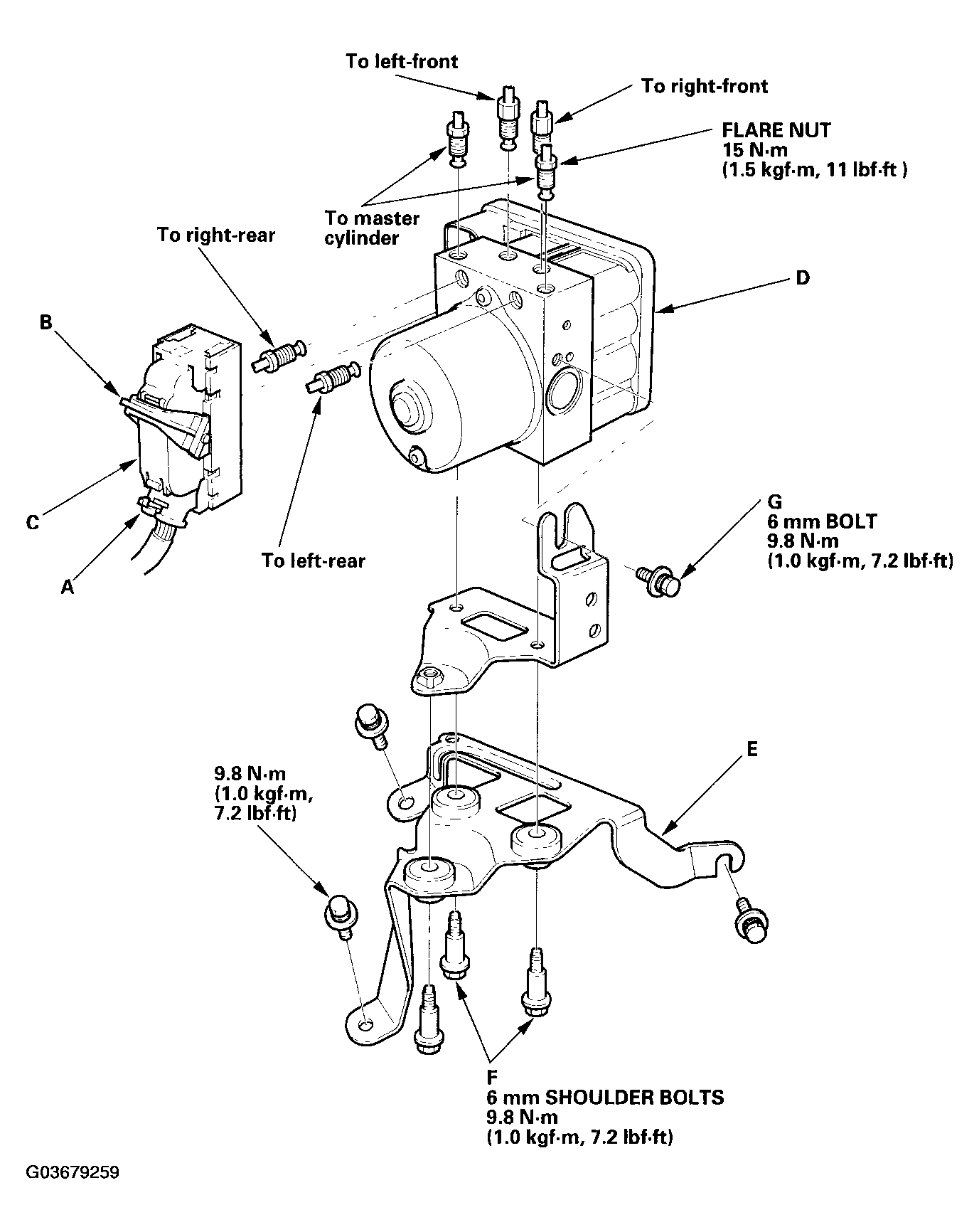

Fig 1: Pushing In Locking Tab And Pull Up Lock Of ABS Modulator-Control Unit 47P Connector With Specified Torques
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines.
Remove the ABS modulator-control unit (D) bracket (E) from the body.
Remove the two 6 mm shoulder bolts (F) and 6 mm bolt (G) from the bracket, then remove the ABS modulator-control unit from the bracket.
