ABS Modulator-Control Unit Removal and Installation: Installation
- Install the ABS modulator-control unit on the bracket, then tighten the two 6 mm shoulder bolts and 6 mm bolt.
- Install the ABS modulator-control unit/bracket on the body.
- Align the connecting surface of the ABS modulator-control unit 47P connector.

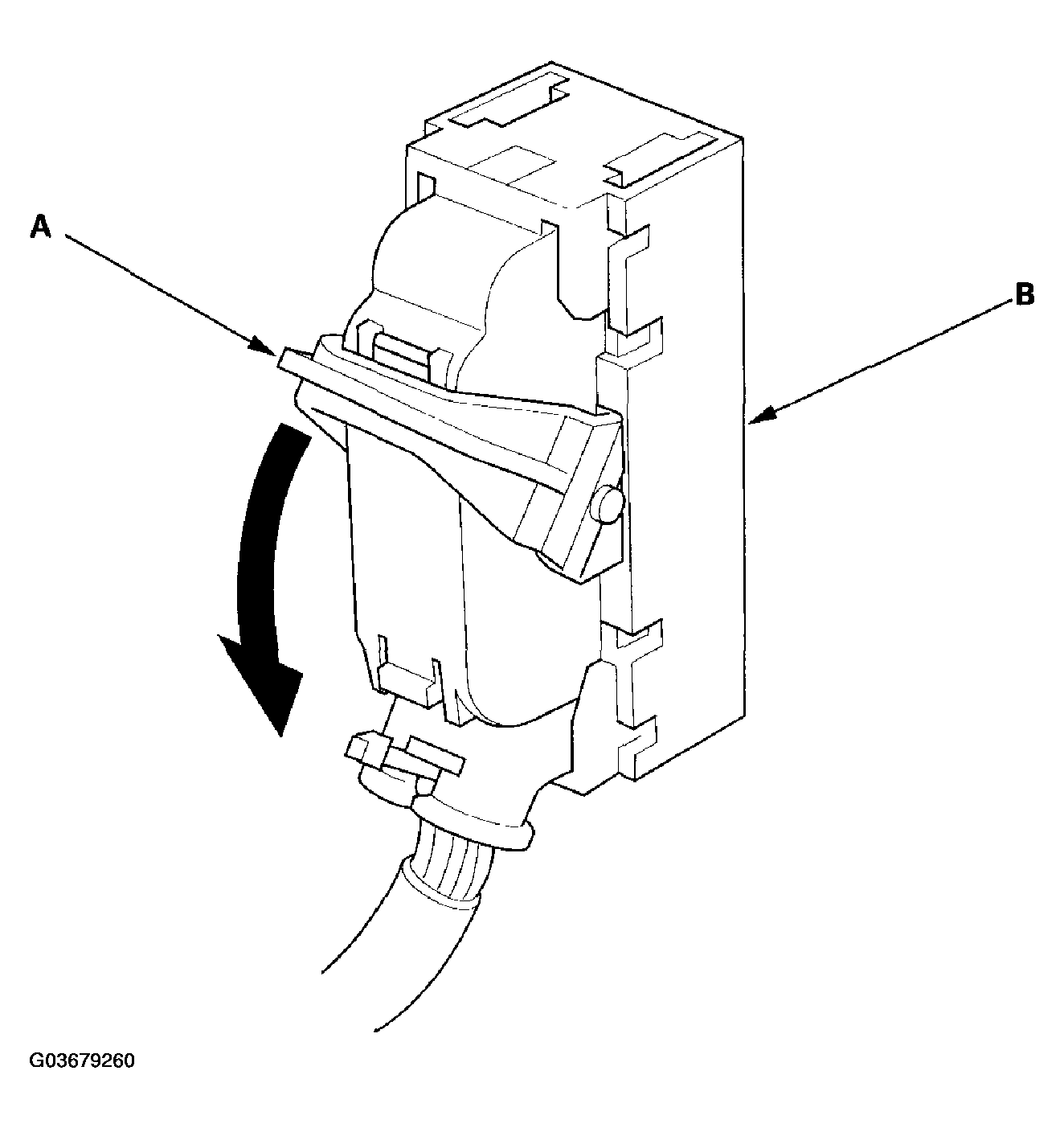

- Push in the lock (A) of the ABS modulator-control unit 47P connector (B), then connect the connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect the six brake lines.
- Bleed the brake system, starting with the front wheels (see
BRAKE SYSTEM BLEEDING
).
- Start the engine, and check that the ABS indicator and brake system indicator go off.
- Test-drive the vehicle, and check that the ABS indicator and brake system indicator do not come on.
