Passenger's Window Motor Test

Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the passenger's power window motor.

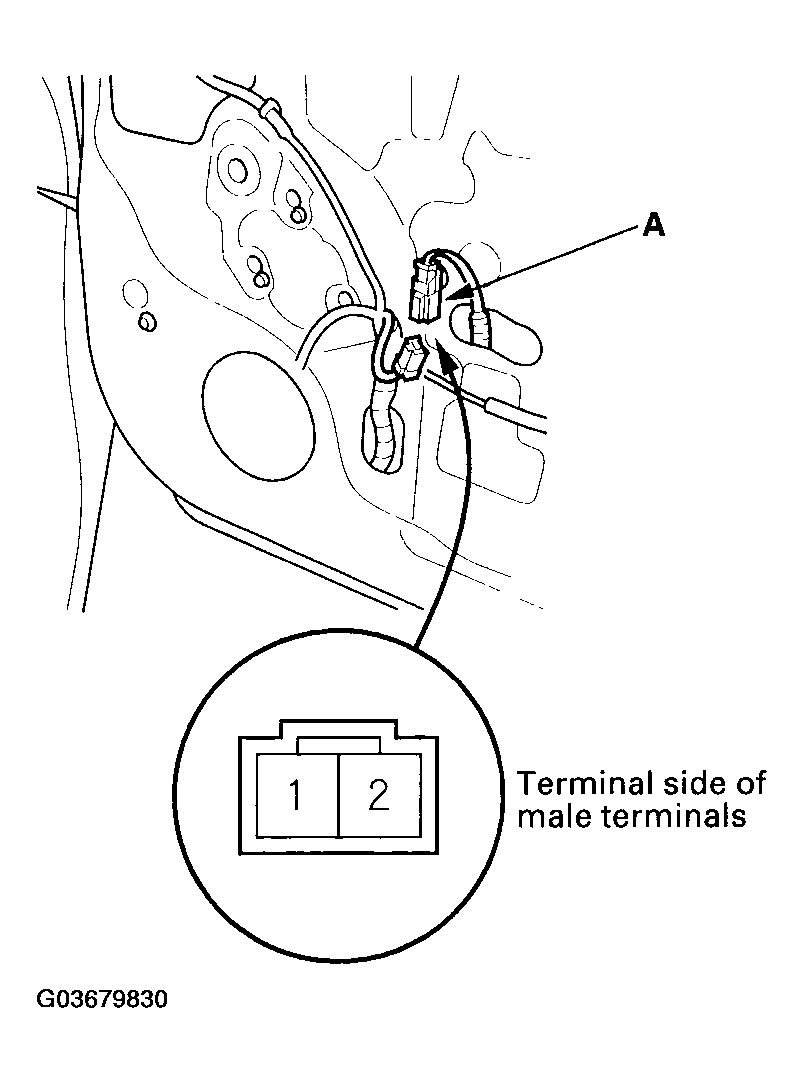

Fig 1: Disconnecting 2P Connector From Passenger's Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor in each direction by connecting battery power and ground according to the table.
NOTE: To prevent damage to the motor, disconnect one lead as soon as the motor stops running.

Fig 2: Motor Testing Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
