Power Mirror Switch Test/Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 13P connector from the power mirror switch (A).

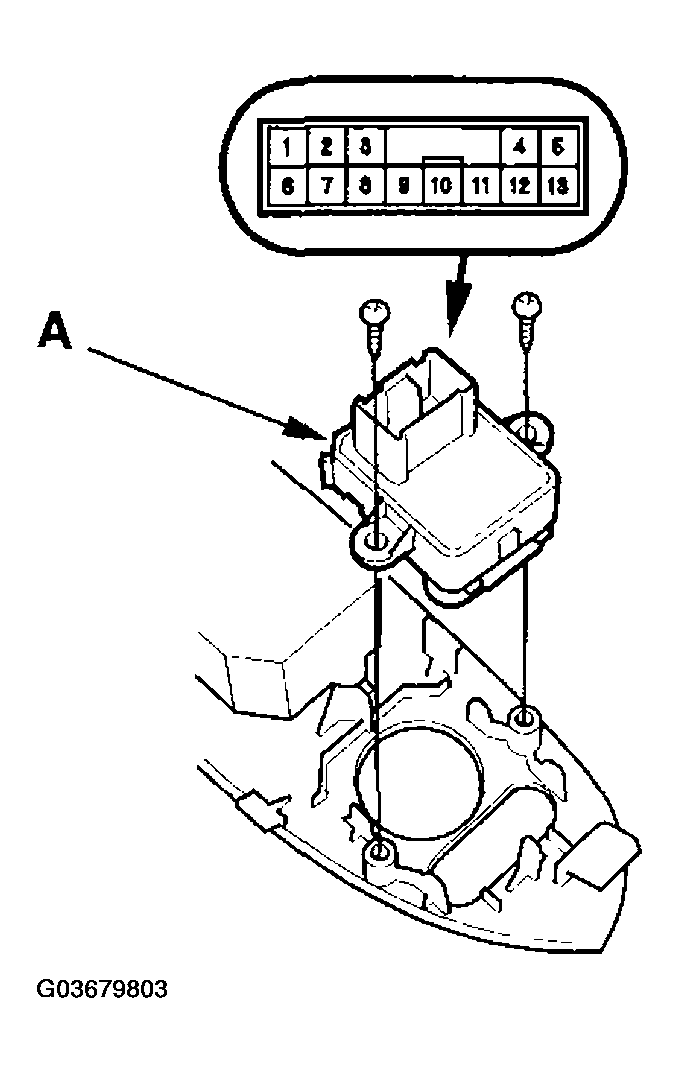

    Fig 1: Disconnecting The 13P Connector From The Power Mirror Switch
    G03679803Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

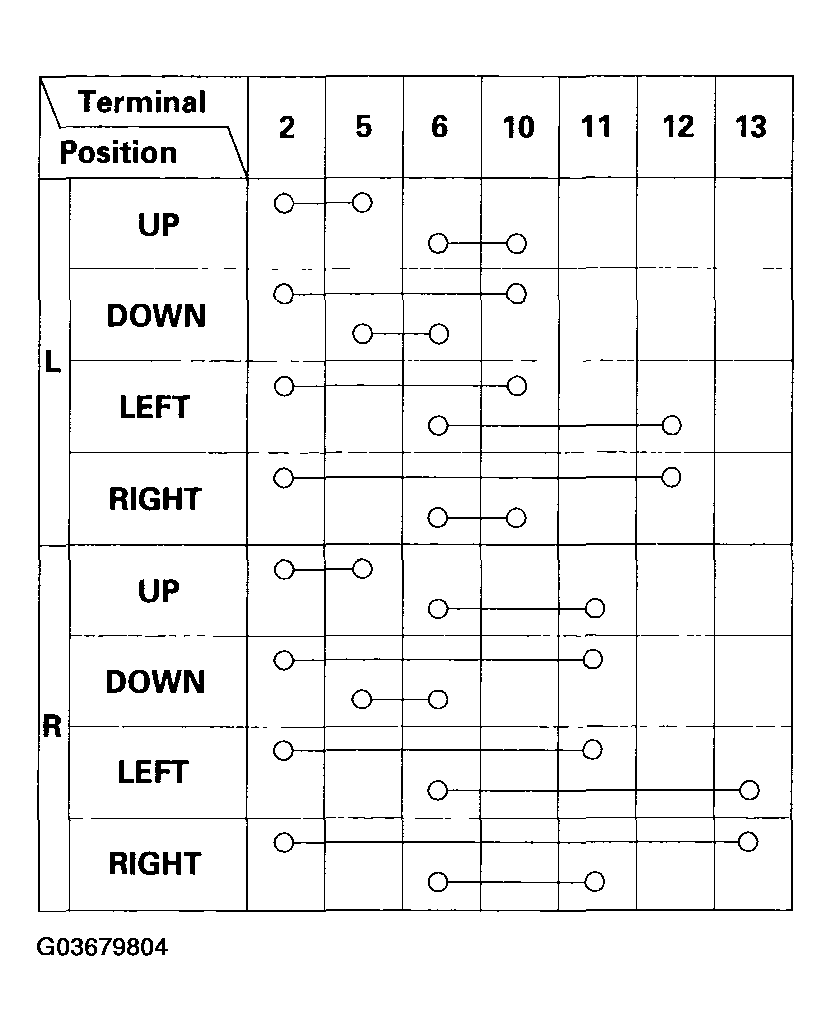

    Fig 2: Checking Continuity Between The Terminals In Each Switch Position
    G03679804Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, remove the screws and replace the switch.
