Rear Subframe Torque

NOTE: After loosening the subframe mounting bolts, be sure to replace them with new ones.

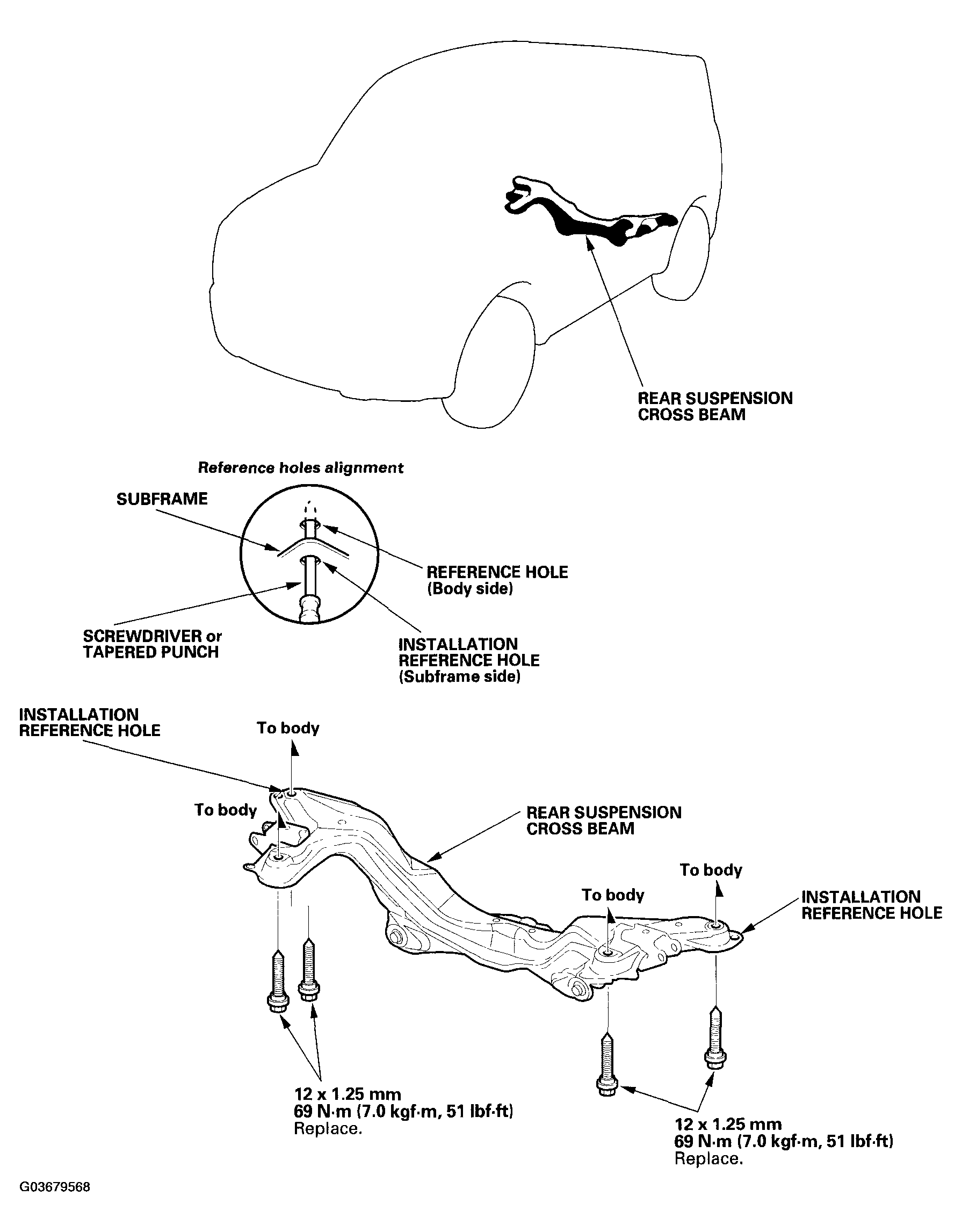

Fig 1: Replacing Rear Subframe & Torque Specifications
G03679568Courtesy of AMERICAN HONDA MOTOR CO., INC.
