Home >> Honda >> 2003 >> Element DX, 2.4 YH2, Automatic >> Repair and Diagnosis >> Body & Frame >> Frames, Subframes & Crossmembers >> Subframe Replacement >> Front Subframe Torque

Front Subframe Torque

NOTE: After loosening the subframe mounting bolts, be sure to replace them with new ones.

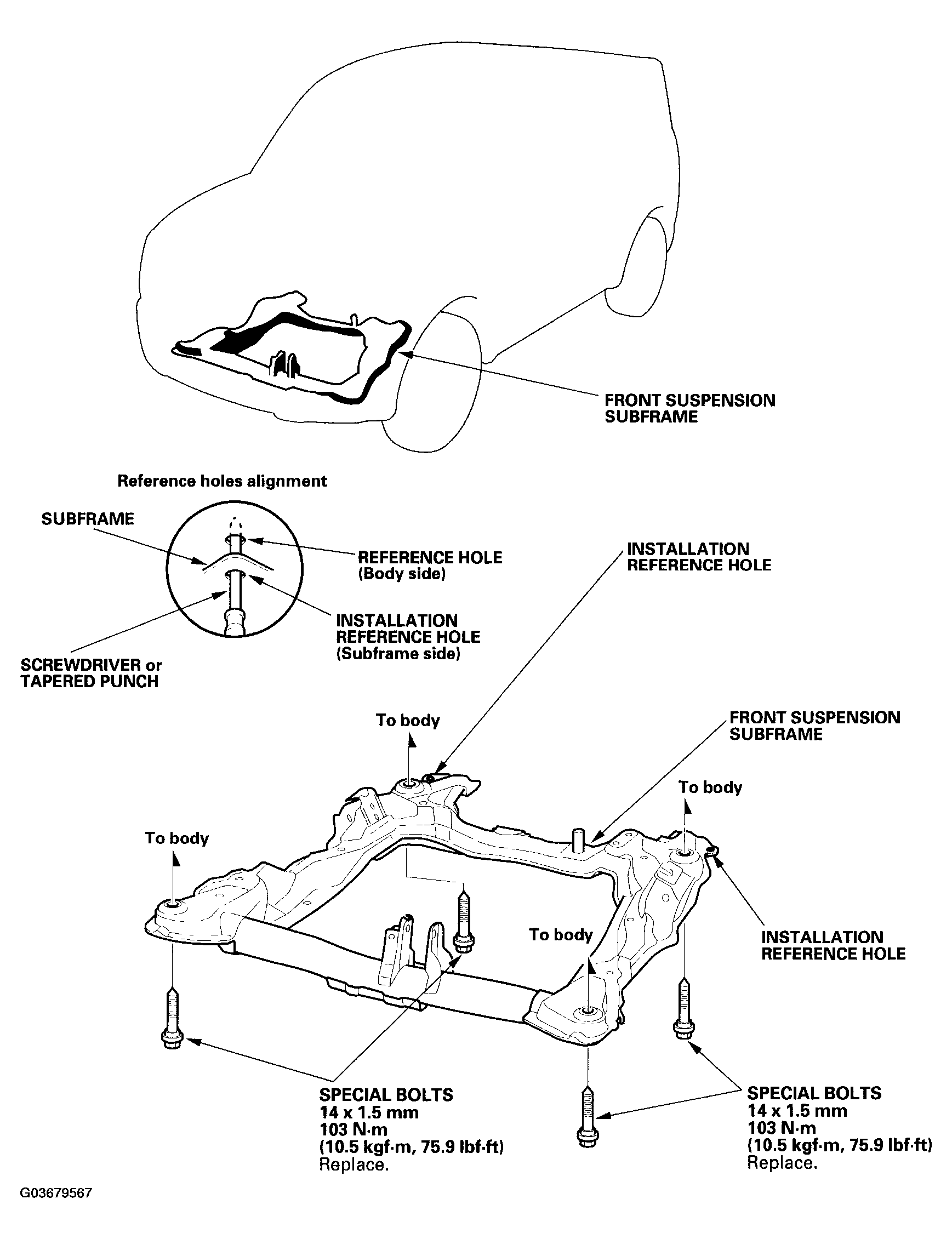

Fig 1: Replacing Front Subframe & Torque Specifications
G03679567Courtesy of AMERICAN HONDA MOTOR CO., INC.
