Frame Repair Chart
>>
Side View
Side View

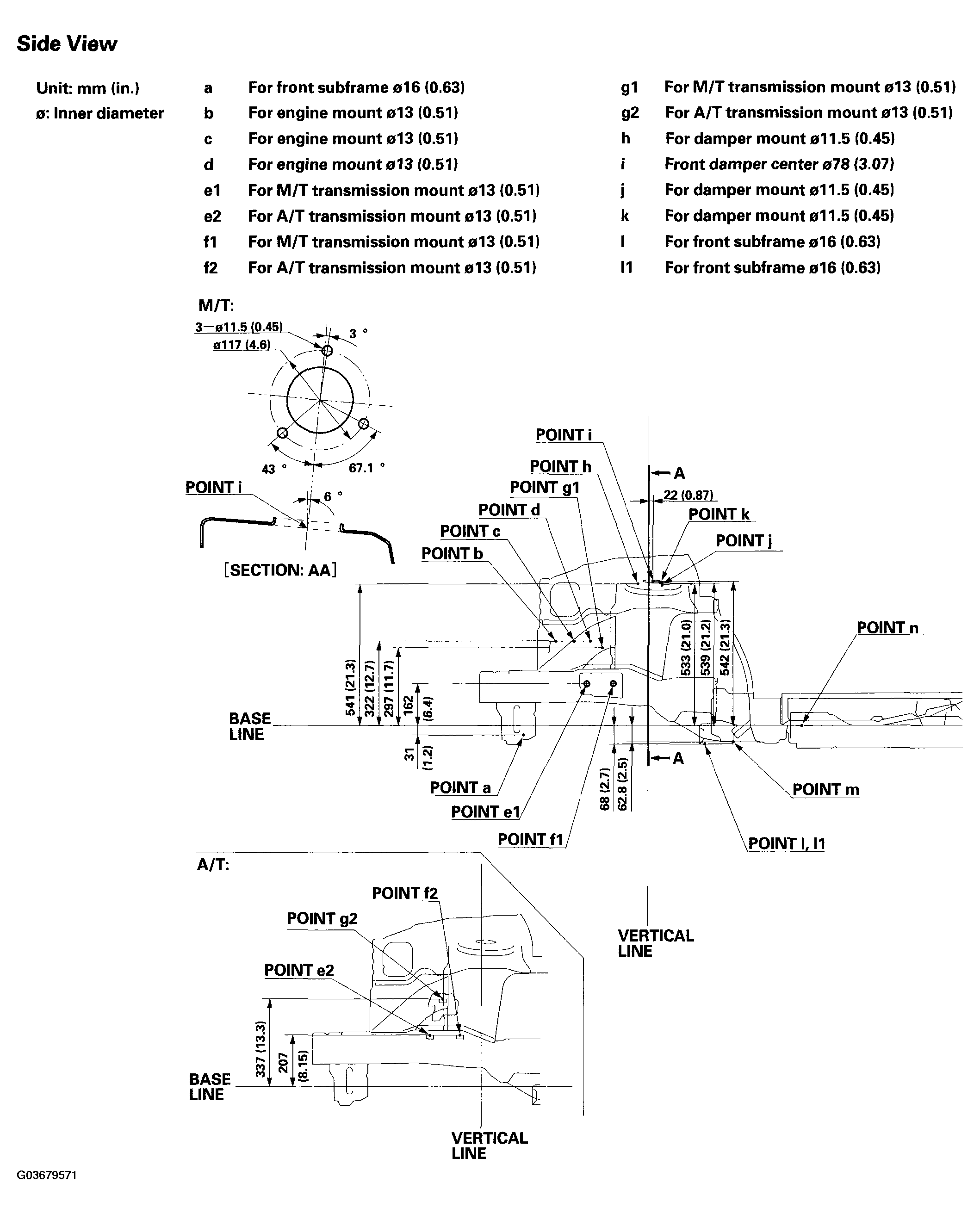

Fig 1: Identifying Frame Repair Chart Side View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

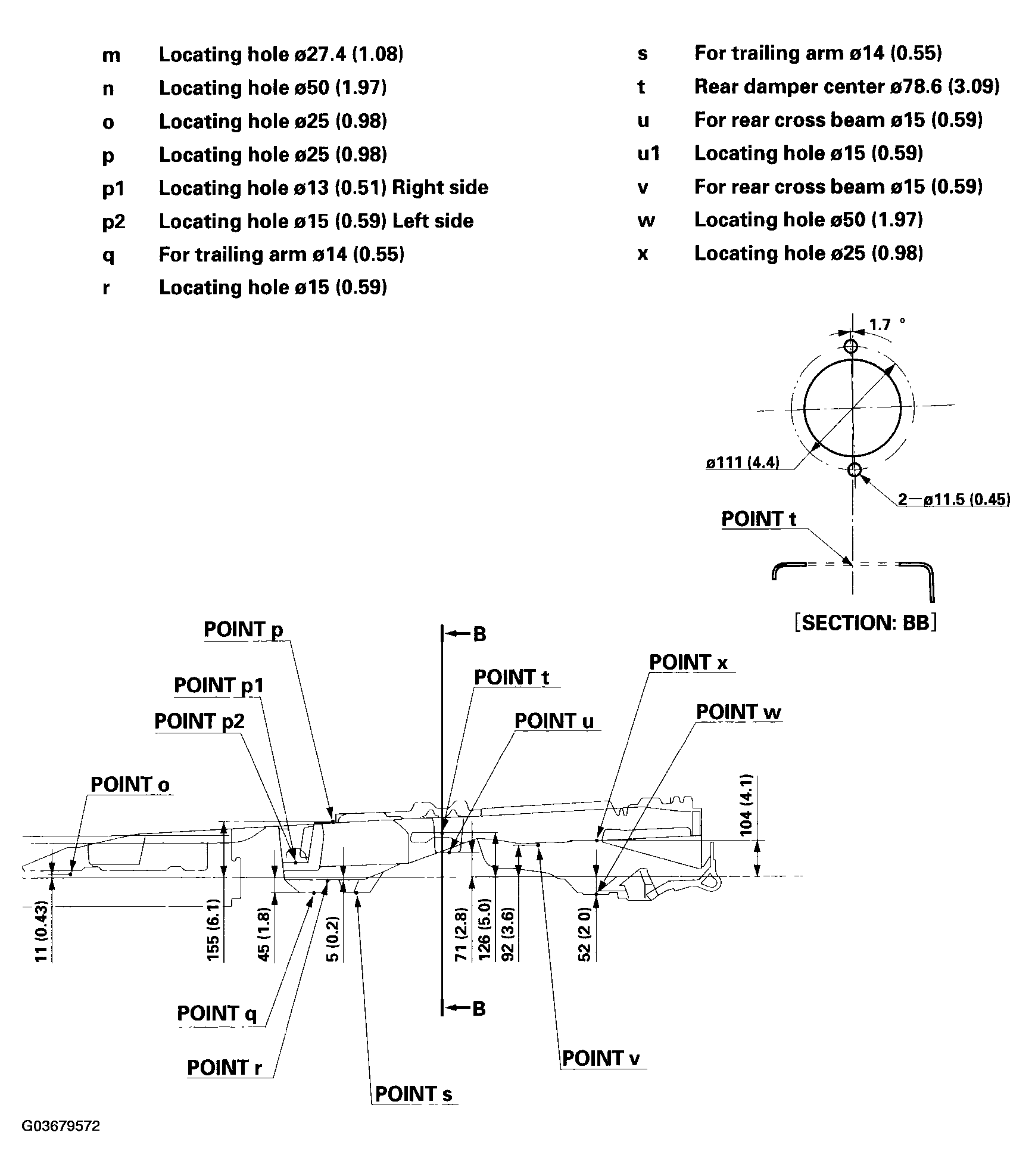

Fig 2: Identifying Frame Repair Chart Side View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
