Frame Repair Chart: Notes

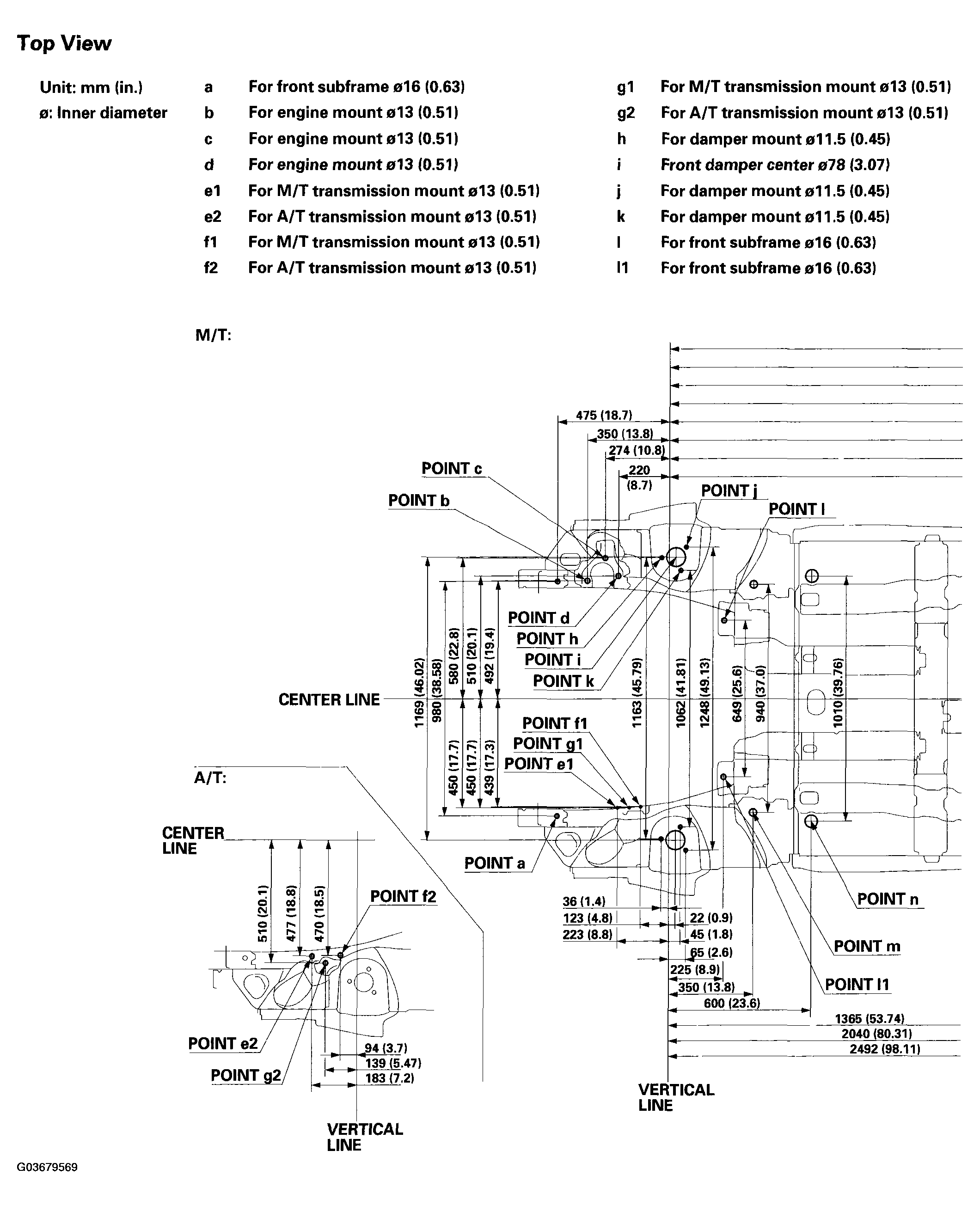

Fig 1: Identifying Frame Repair Chart (1 Of 2)
G03679569Courtesy of AMERICAN HONDA MOTOR CO., INC.

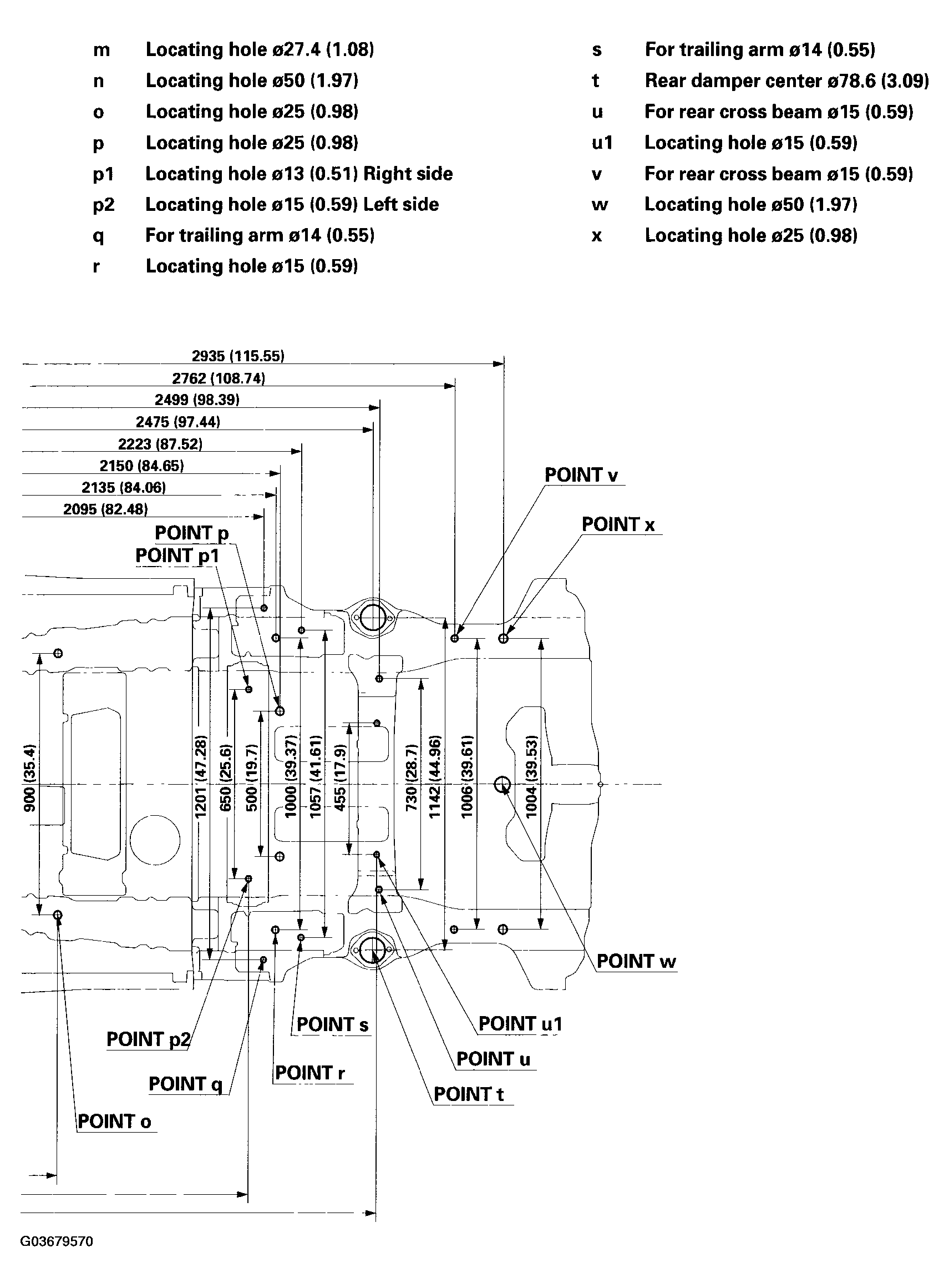

Fig 2: Identifying Frame Repair Chart (2 Of 2)
G03679570Courtesy of AMERICAN HONDA MOTOR CO., INC.
