Transfer Assembly Installation

NOTE:

While installing the transfer assembly on the transmission, do not allow dust or other foreign particles to enter the transmission.
Be careful not to damage the clutch housing with transfer driven gear.

Install a new O-ring (A) on the transfer assembly (B), then install the dowel pin (C) on the transmission.

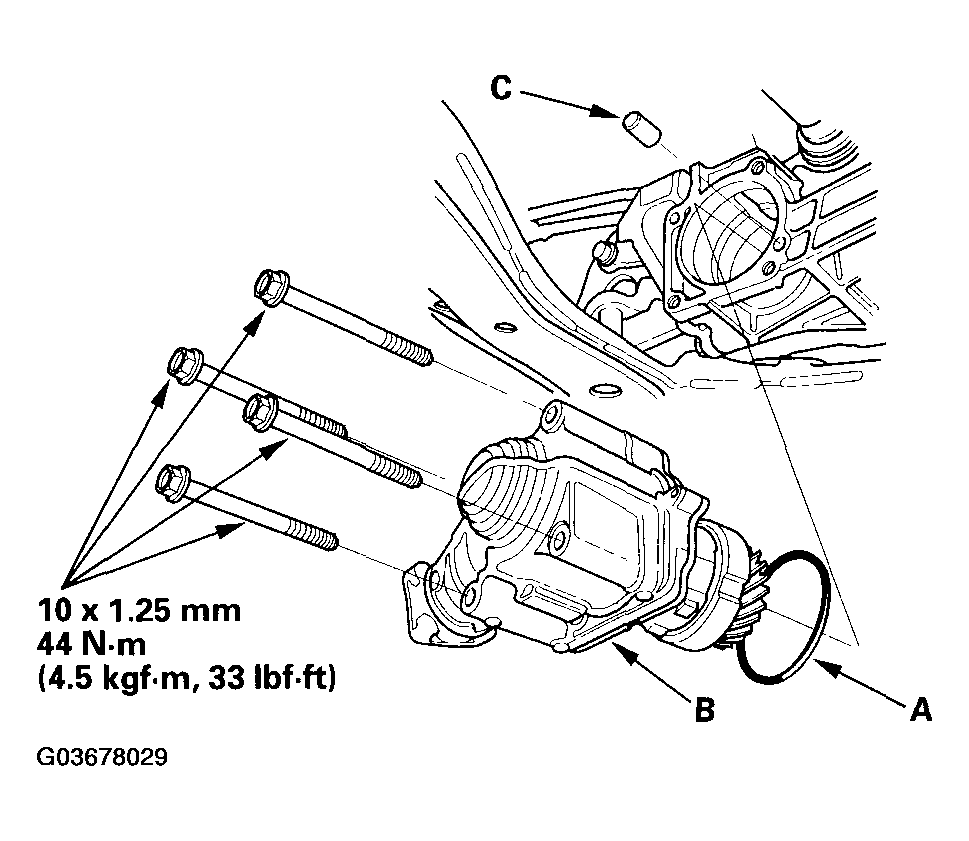

Fig 1: Installing New O-Ring On Transfer Assembly And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply manual transmission fluid (MTF) to the transfer driven gear and transmission contact area, then install the transfer assembly on the transmission.
Install the propeller shaft (A) on the transfer assembly (B) by aligning the reference marks (C).

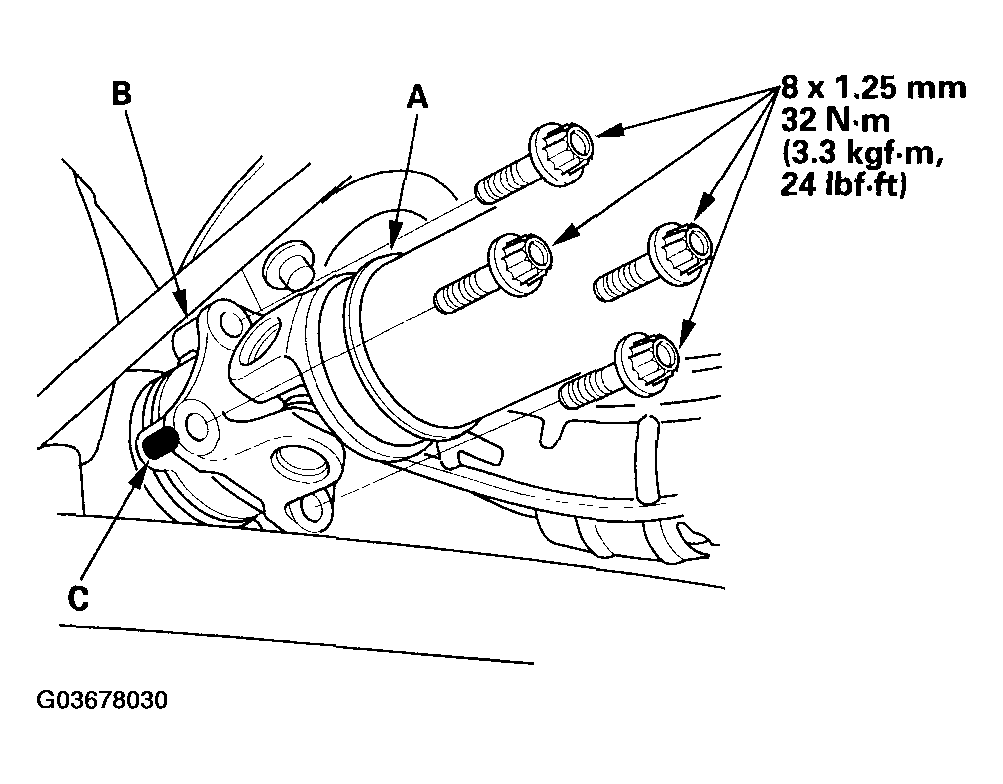

Fig 2: Installing Propeller Shaft On Transfer Assembly And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Refill the transmission with MTF (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT ).
Start the engine, and run it to normal operating temperature (the radiator fan comes on). Turn the engine off, and check the fluid level.
