EVAP Canister Purge Valve Replacement

  1. Disconnect the EVAP canister purge valve 2P connector (A).

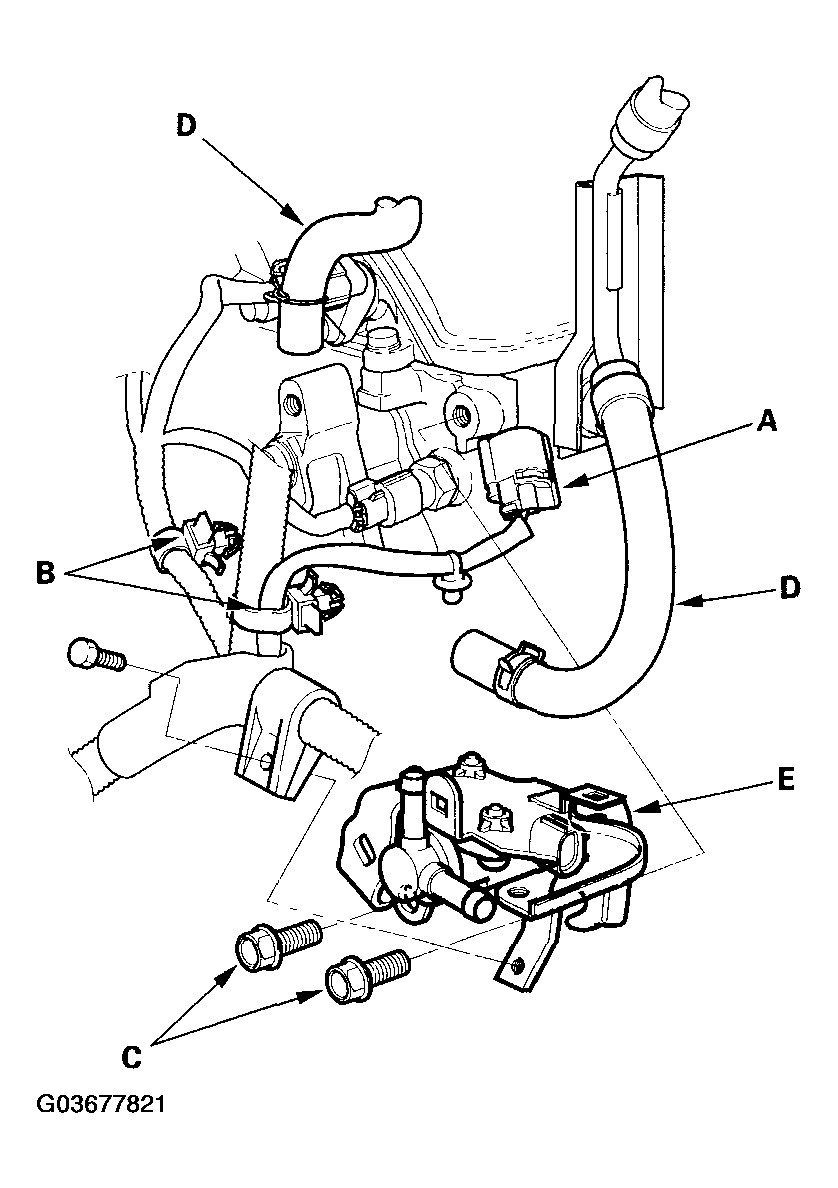

    Fig 1: Disconnecting EVAP Canister Purge Valve 2P Connector
    G03677821Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clips (B), the bolts (C), and the hoses (D), then remove the EVAP canister purge valve assembly (E).
  3. Remove the screws (A).

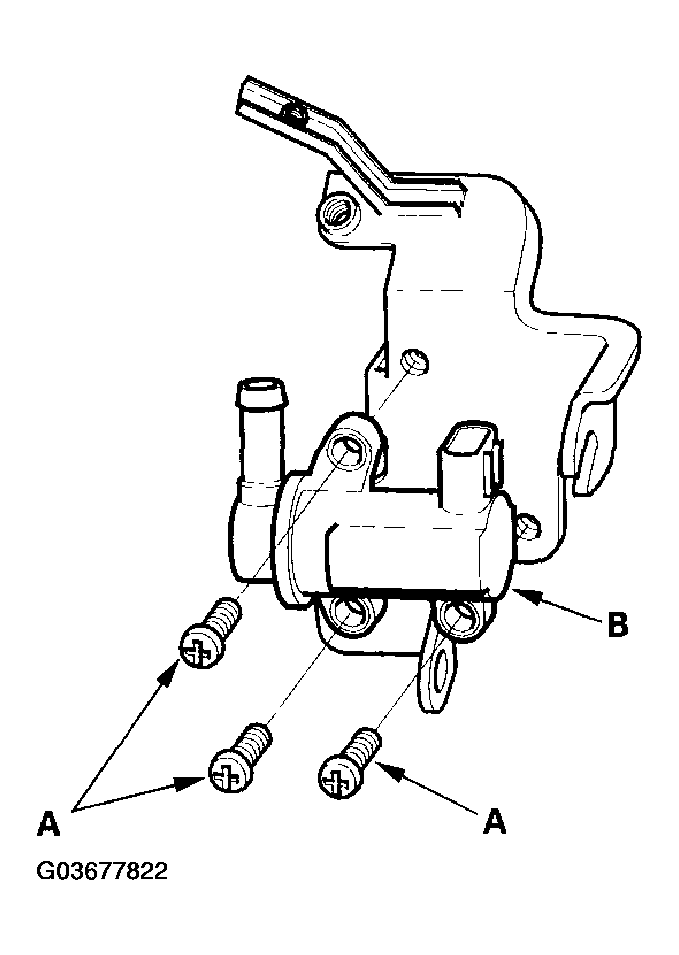

    Fig 2: Removing EVAP Canister Purge Valve From Bracket
    G03677822Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EVAP canister purge valve (B) from the bracket.
  5. Install the valve in the reverse order of removal.
