System Diagram

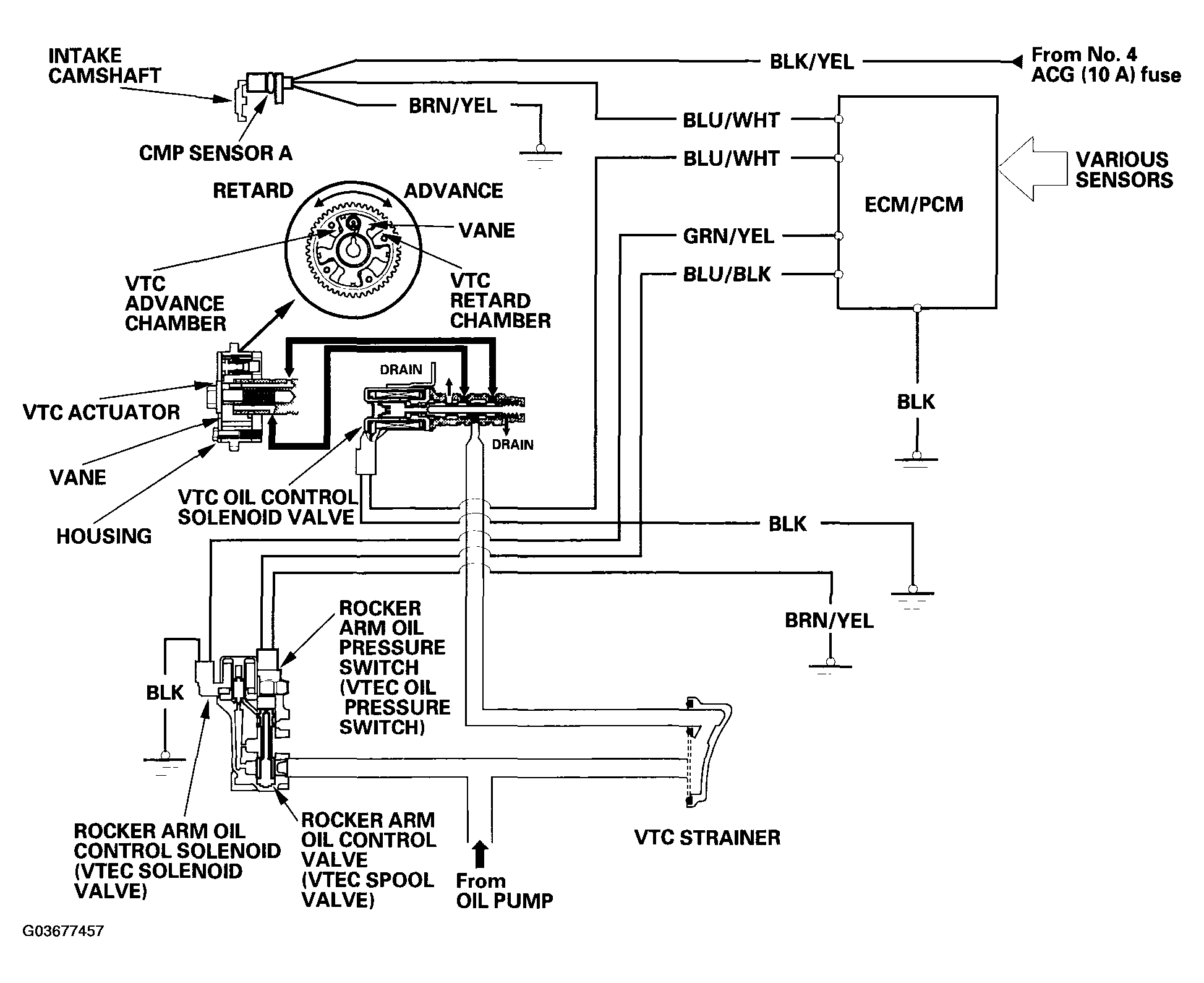

Fig 1: Identifying VTEC/VTC System Diagram
G03677457Courtesy of AMERICAN HONDA MOTOR CO., INC.
