Starter Removal and Installation: Installation

  1. Install the starter, then install the harness holder (A) and the harness clamp (B), connect the starter cable (C) and BLK/WHT wire (D). Make sure the starter cable crimped side of the ring terminal is facing out.

    M/T

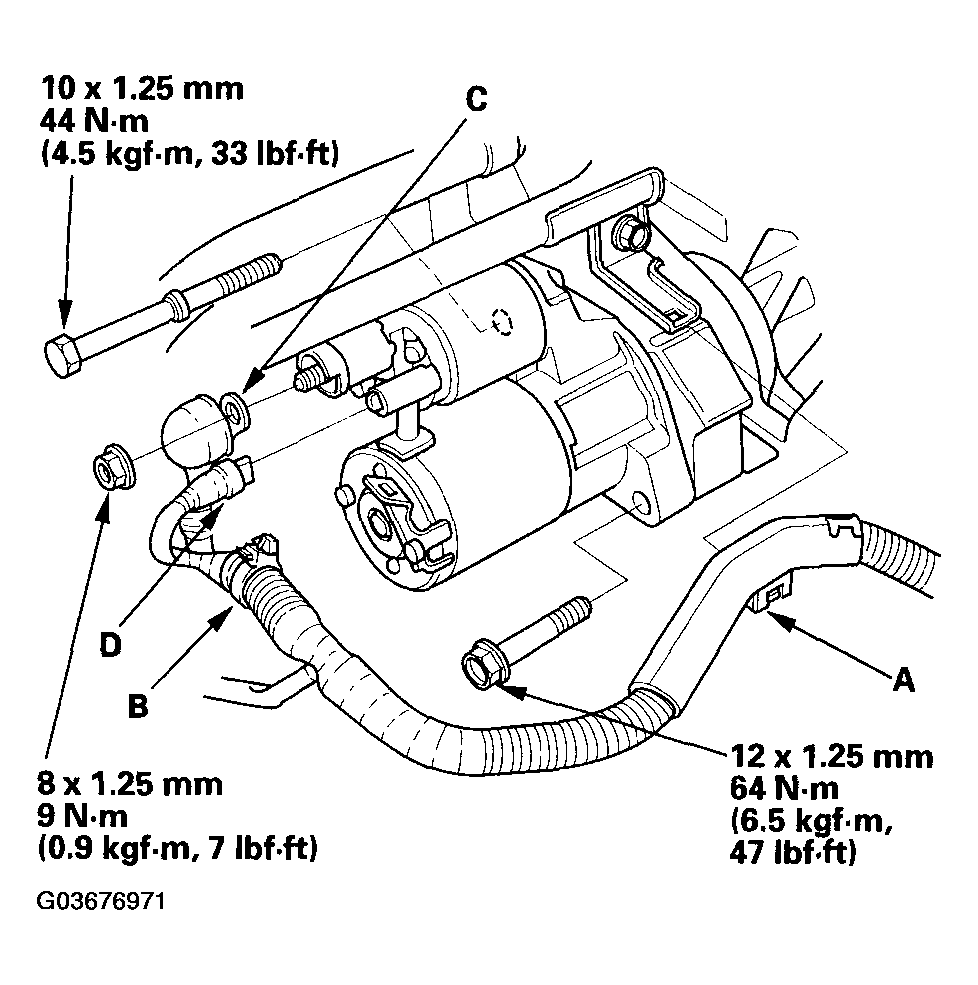

    Fig 1: Installing Starter And Harness Holder And Harness Clamp (M/T) With Specified Torques
    G03676971Courtesy of AMERICAN HONDA MOTOR CO., INC.

    A/T

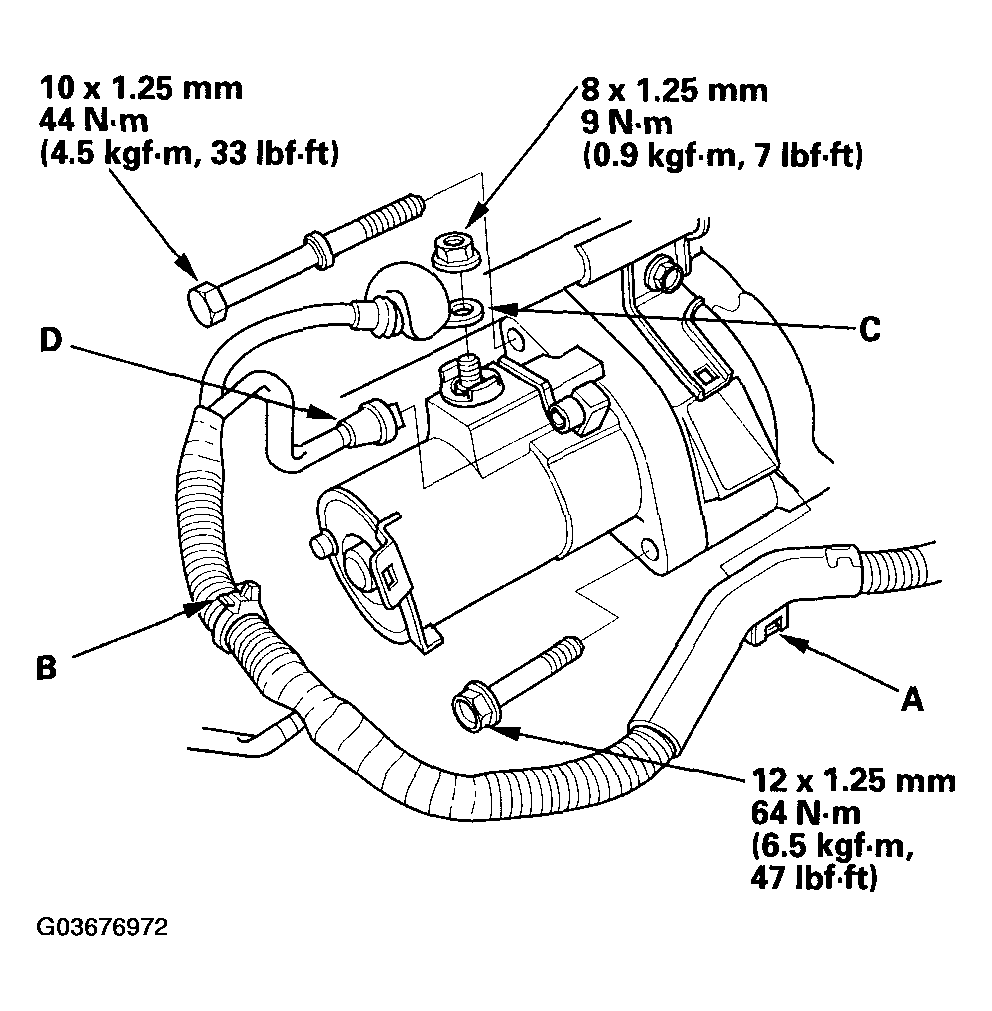

    Fig 2: Installing Starter And Harness Holder And Harness Clamp (A/T) With Specified Torques
    G03676972Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  3. Connect the battery positive cable to the battery first, then connect the negative cable.
  4. Start the engine to make sure the starter works properly.
  5. Enter the anti-theft code for the radio, then enter the customer's audio presets.
  6. Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
  7. Set the clock.
