Engine Block: Inspection: Reassembly

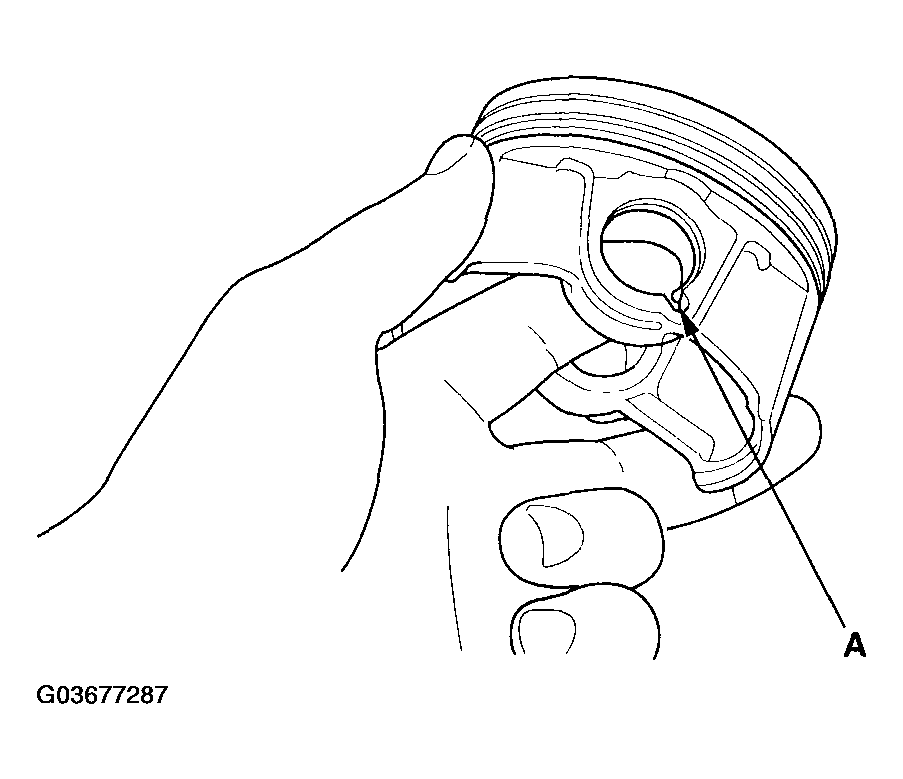

  1. Install a piston pin snap ring (A) only one side.
    Fig 1: Installing Piston Pin Snap Ring
    G03677287Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Coat the piston pin bore in the piston, the bore in the connecting rod, and the piston pin with new engine oil.
  3. Heat the piston to about 158°F (70°C).
    Fig 2: Heating Piston
    G03677288Courtesy of AMERICAN HONDA MOTOR CO., INC.

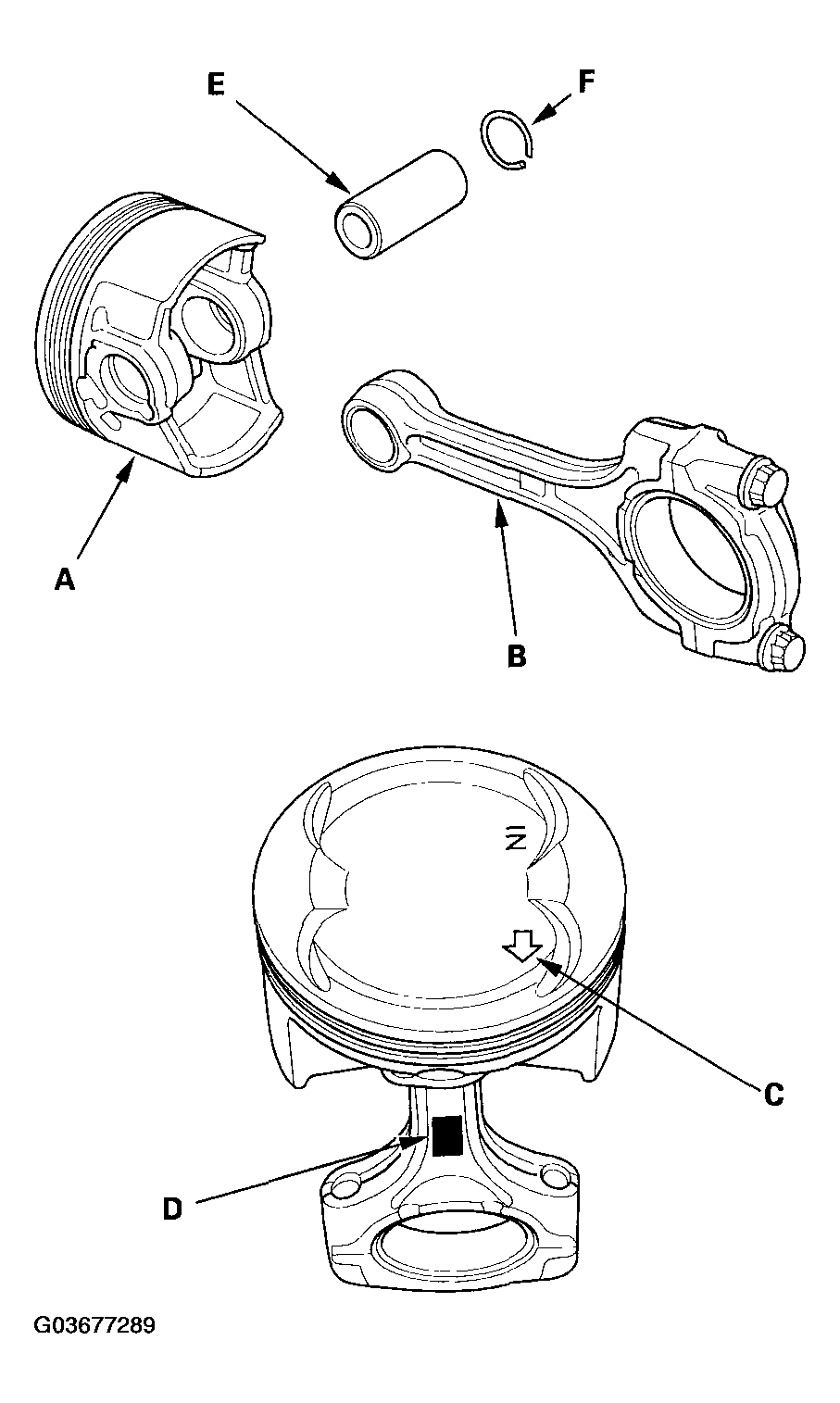

  4. Assemble the piston (A) and connecting rod (B) with the arrow (C) and the embossed mark (D) on the same side. Install the piston pin (E).
    Fig 3: Assembling Piston And Connecting Rod
    G03677289Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the remaining snap ring (F).
  6. Turn the snap rings in the ring grooves until the end gaps are positioned at the bottom of the piston.
