Component Location Index

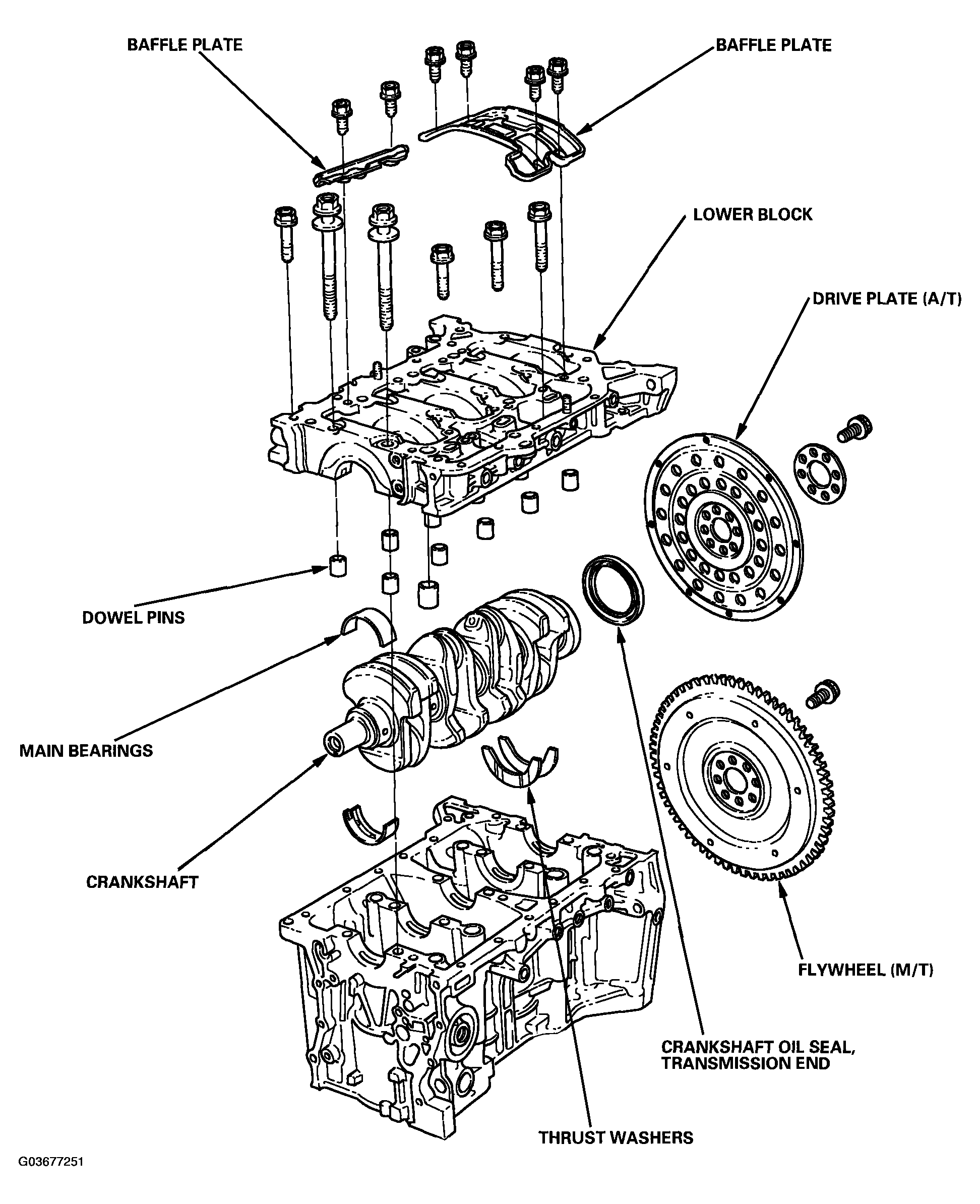

Fig 1: Identifying Cylinder Block And Related Components (1 Of 2)
G03677251Courtesy of AMERICAN HONDA MOTOR CO., INC.

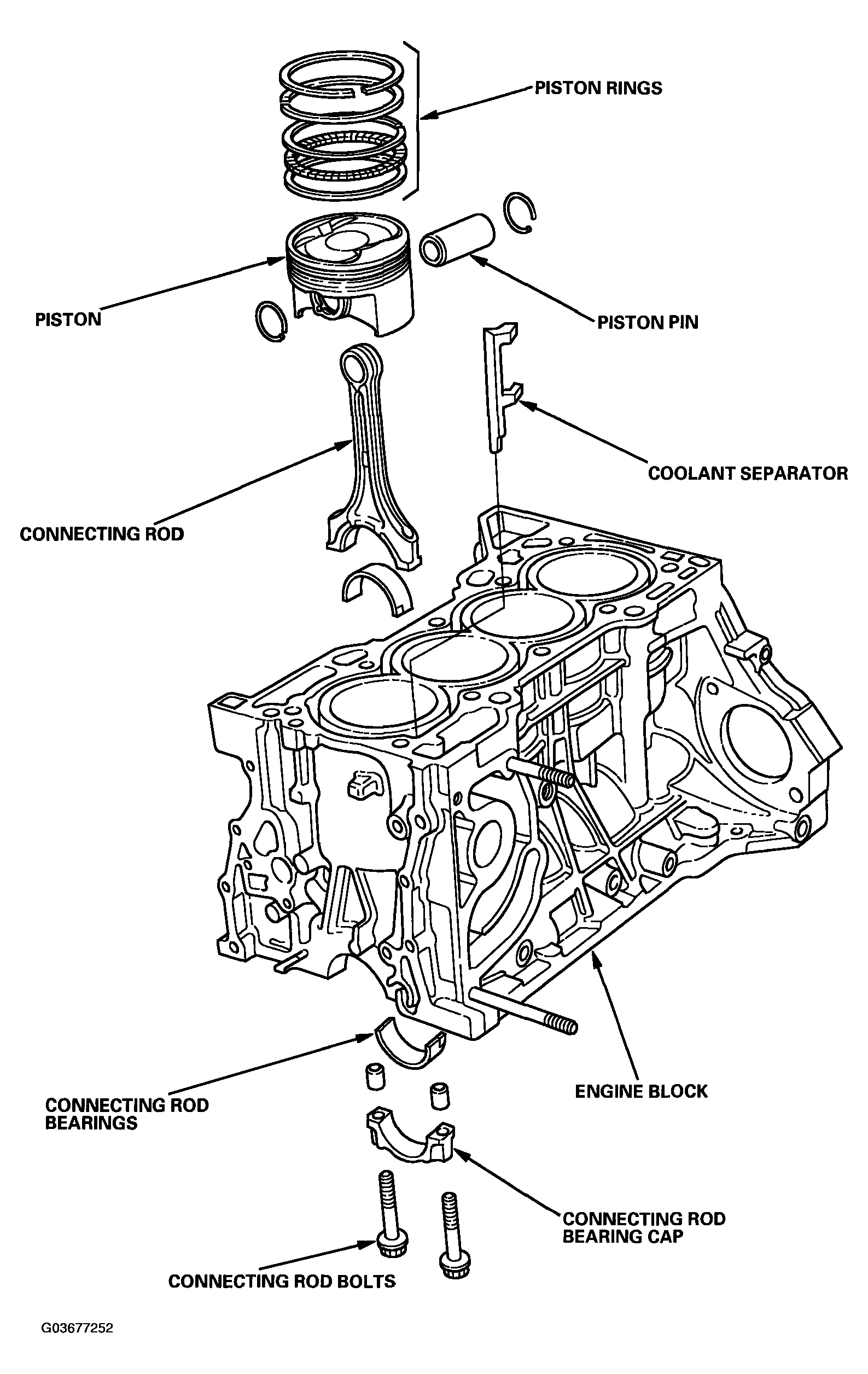

Fig 2: Identifying Cylinder Block And Related Components (2 Of 2)
G03677252Courtesy of AMERICAN HONDA MOTOR CO., INC.
