Engine Oil Filter Replacement

Special Tools Required

Oil filter wrench 07HAA-PJ70100

1. Remove the oil filter with the special tool.
2. Inspect the threads (A) and rubber seal (B) on the new filter. Clean the seat on the engine block, then apply a light coat of new engine oil to the filter rubber seal. Use only filters with a built-in bypass system.

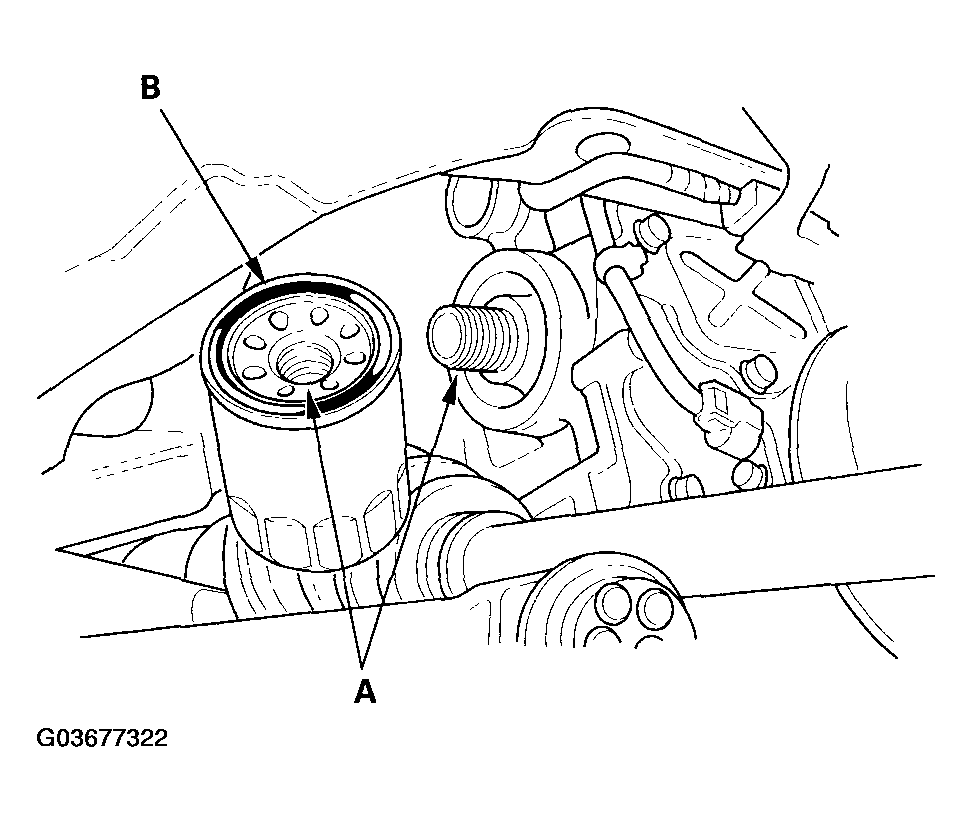

   Fig 1: Inspecting Oil Filter Threads And Rubber Seal

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the oil filter by hand.
4. After the rubber seal seats, tighten the oil filter clockwise with the special tool.

   Tighten: 3/4 Turn Clockwise

   Tightening Torque: 12 N.m (1.2 kgf.m, 8.7 lbf.ft)

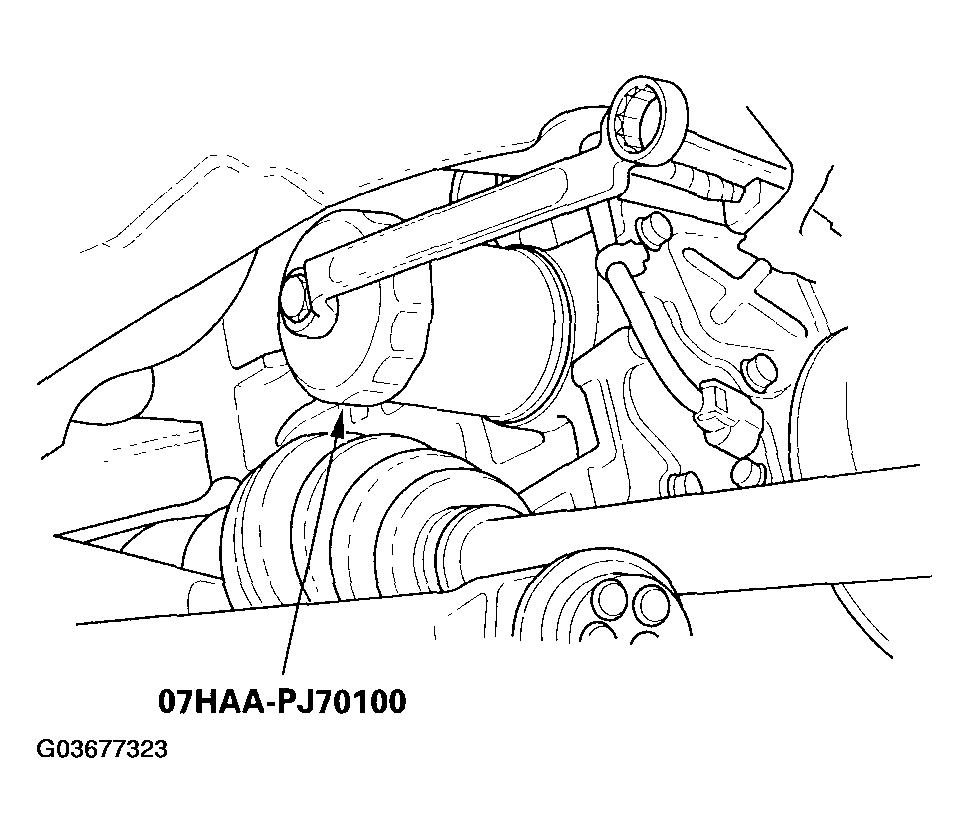

   Fig 2: Tightening Oil Filter Clockwise

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If four numbers or triangle marks are printed around the outside of the filter, use the following procedure to tighten the filter.
   • Spin the filter on until its seal lightly seats against the block, and note which number or mark is at the bottom.
   • Tighten the filter by turning it clockwise three numbers or marks from the one you noted. For example, if number 2 is at the bottom when the seal is seated, tighten the filter until the number 1 comes around the bottom.

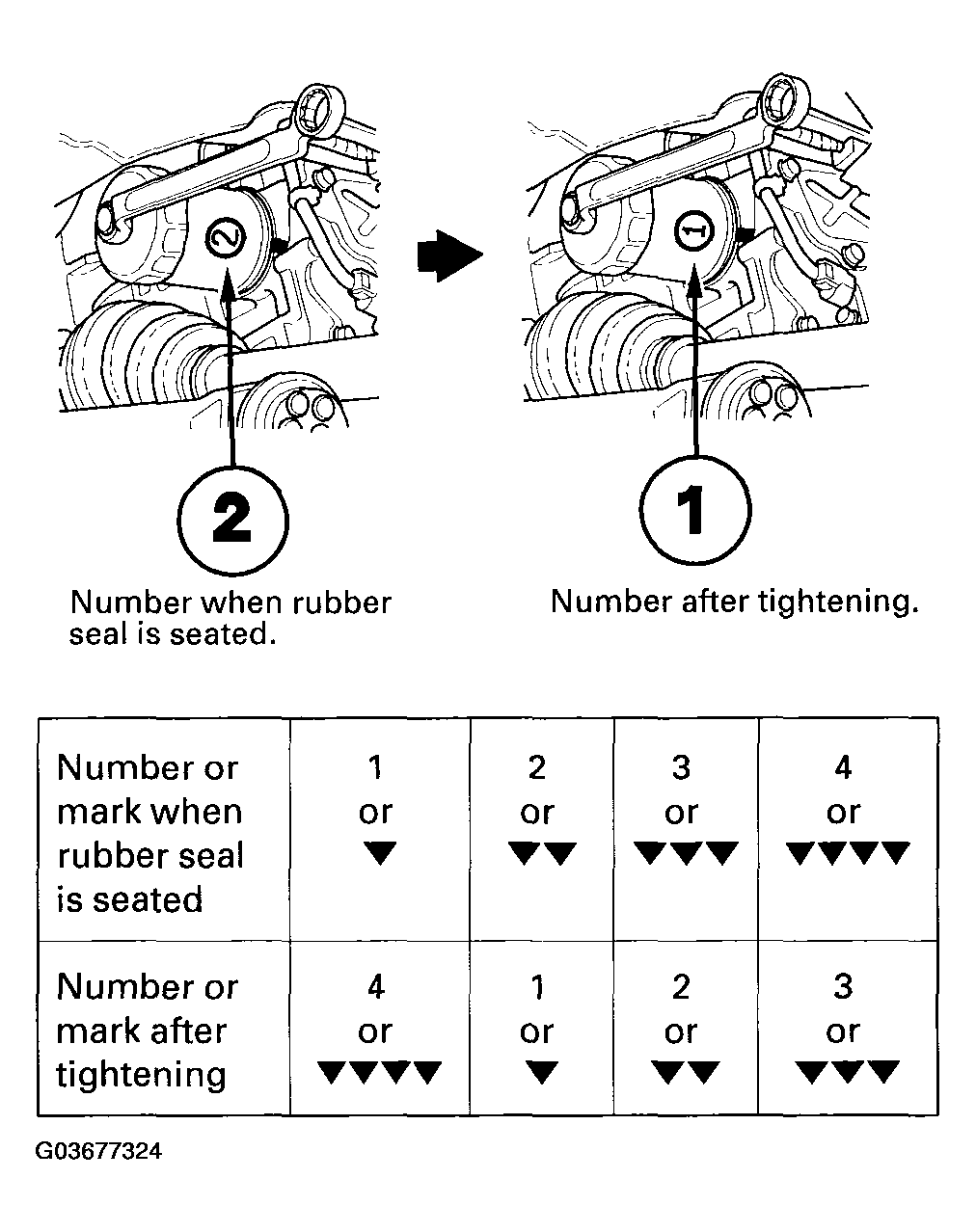

   Fig 3: Locating Engine Oil Filter Marks And Number Position Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. After installation, fill the engine with oil up to the specified level, run the engine for more than 3 minutes, then check for oil leakage.
