Home >> Honda >> 2003 >> Element DX, 2.4 YH1, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass >> Component Location Index

Component Location Index

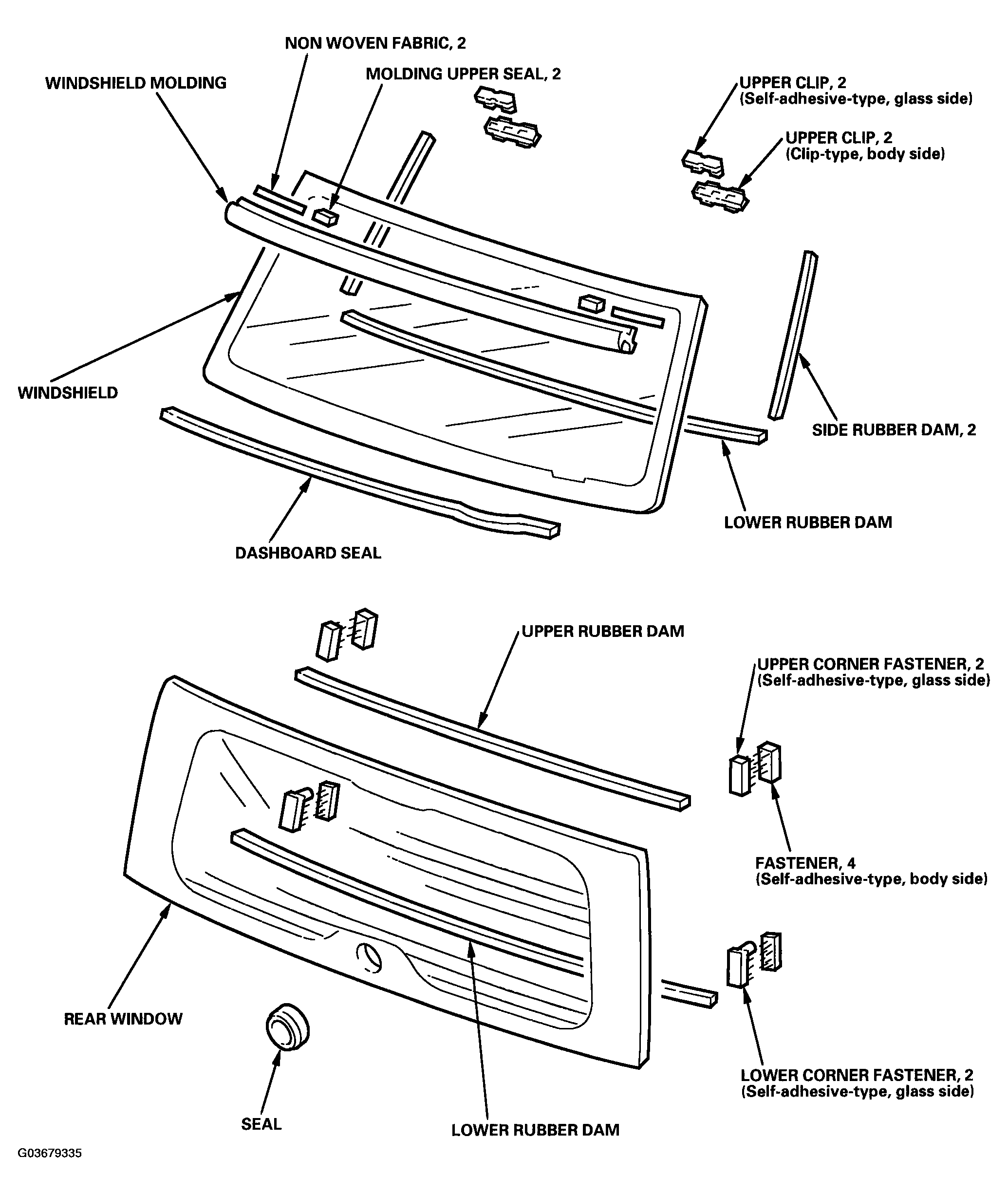

Fig 1: Identifying Glass Component Locations (1 Of 2)
G03679335Courtesy of AMERICAN HONDA MOTOR CO., INC.

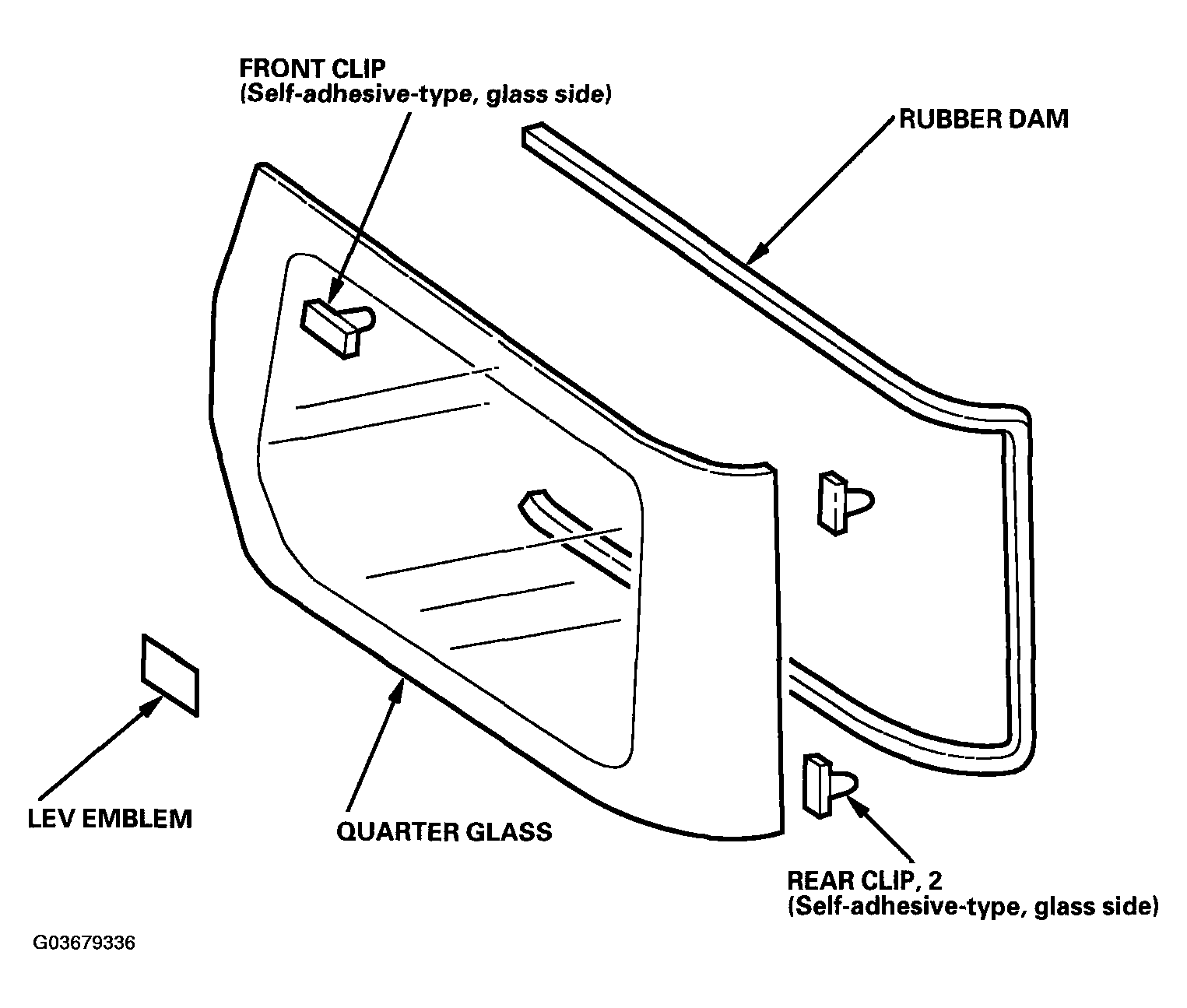

Fig 2: Identifying Glass Component Location (2 Of 2)
G03679336Courtesy of AMERICAN HONDA MOTOR CO., INC.
