Ignition Switch/Steering Lock: Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS before performing repairs or service.

1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
2. Disconnect connector A (5P) from the under-dash fuse/relay box.

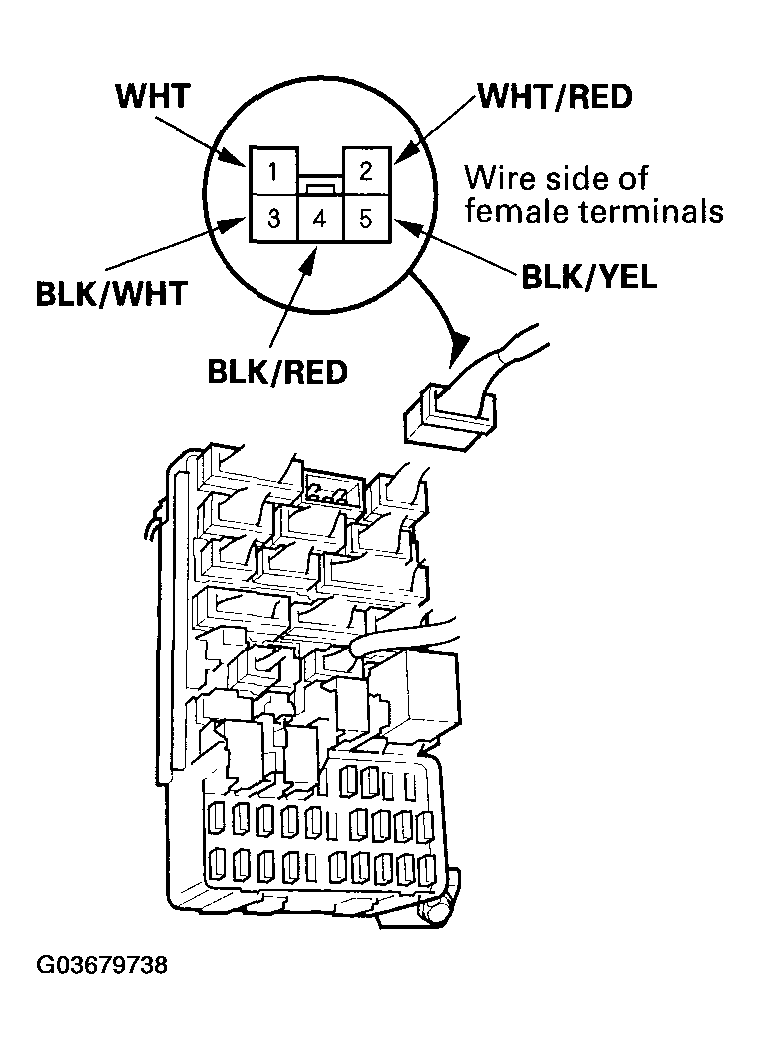

   Fig 1: Disconnecting Connector A (5P) From Under-Dash Fuse/Relay Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table.

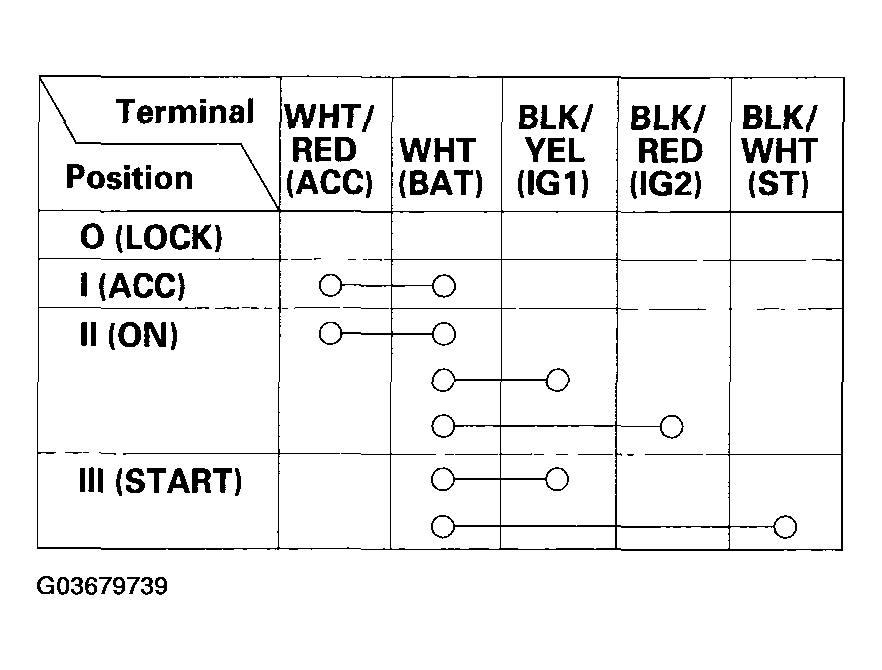

   Fig 2: Checking Continuity Between Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If the continuity checks do not agree with the table, replace the steering lock (ignition) switch (see STEERING LOCK REPLACEMENT ).
