Washer Fluid Level Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 2P connector (A) from the washer fluid level switch (B).

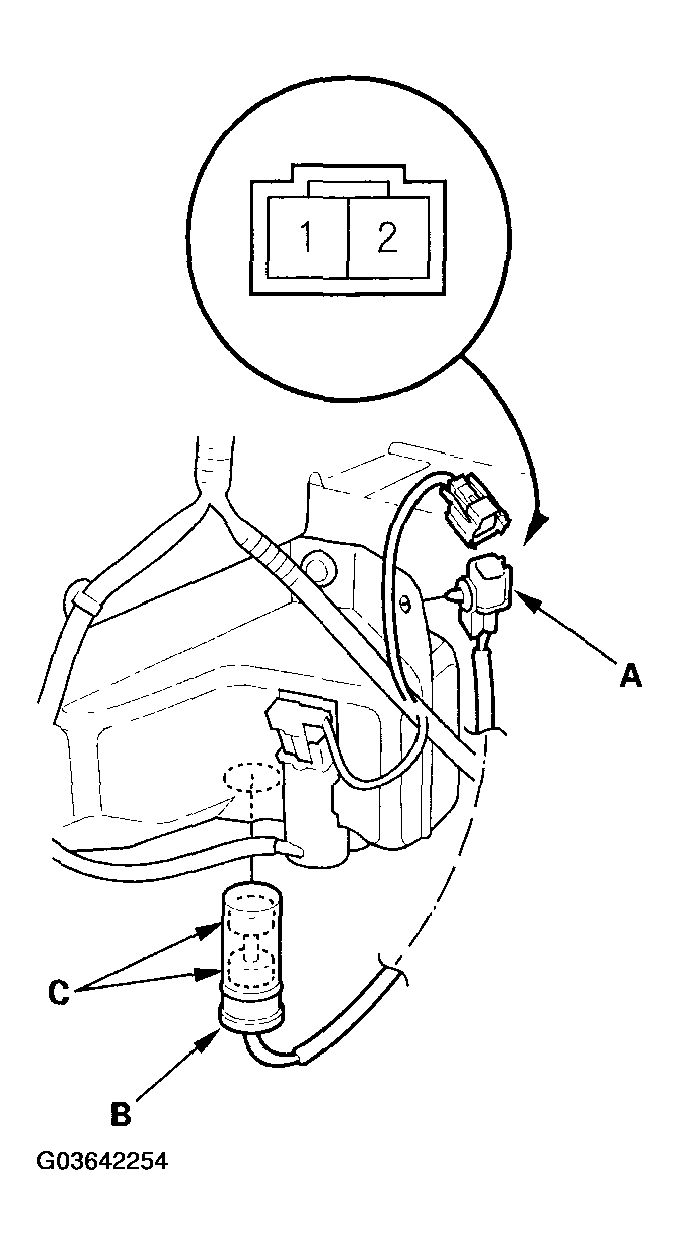

Fig 1: Disconnecting 2P Connector From Washer Fluid Level Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the switch out of the reservoir.
NOTE: Fluid may flow out of the opening.
Check for continuity between the No. 1 and No. 2 terminals in each float switch position (C).
- There should be continuity when the float is down.
- There should be no continuity when the float is up.
If the continuity is not as specified, replace the switch.
