Motor Test

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
Disconnect the 2P connector from the moonroof motor.

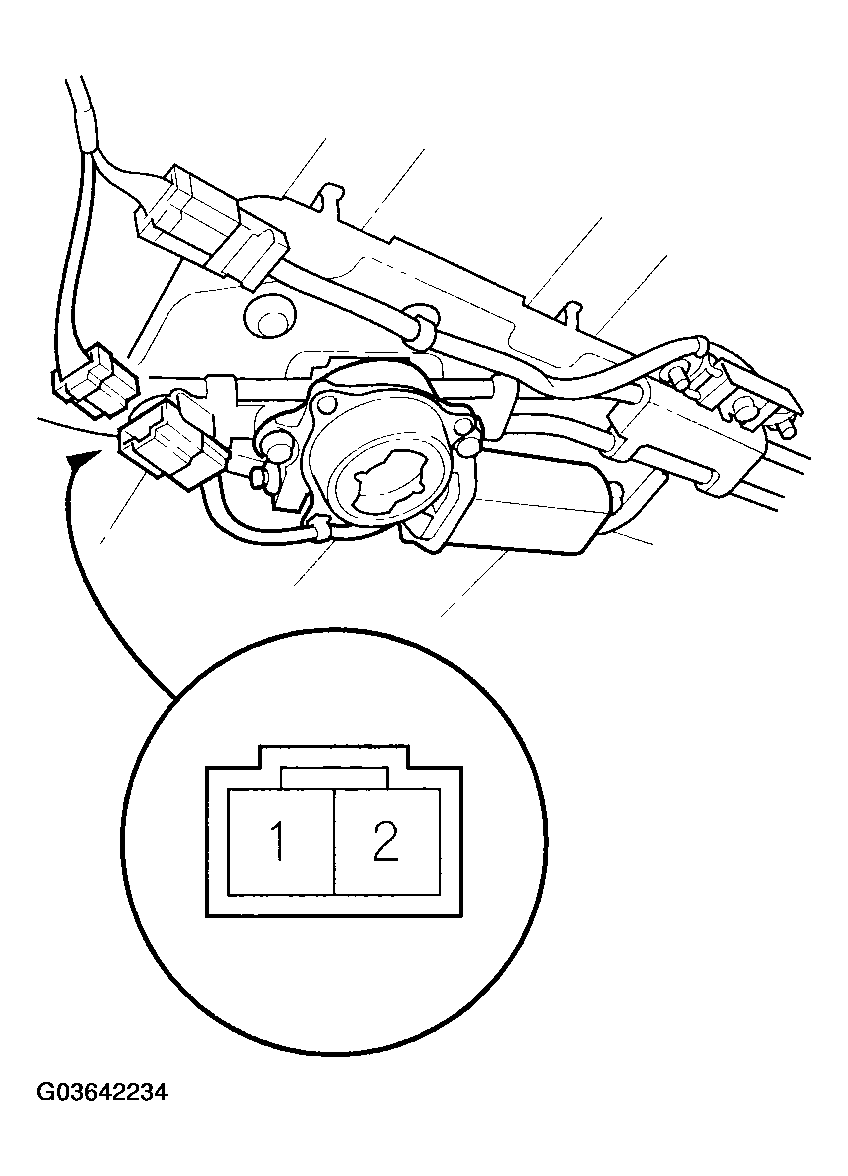

Fig 1: Disconnecting 2P Connector From Moonroof Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the motor by connecting power and ground according to Fig 2 .

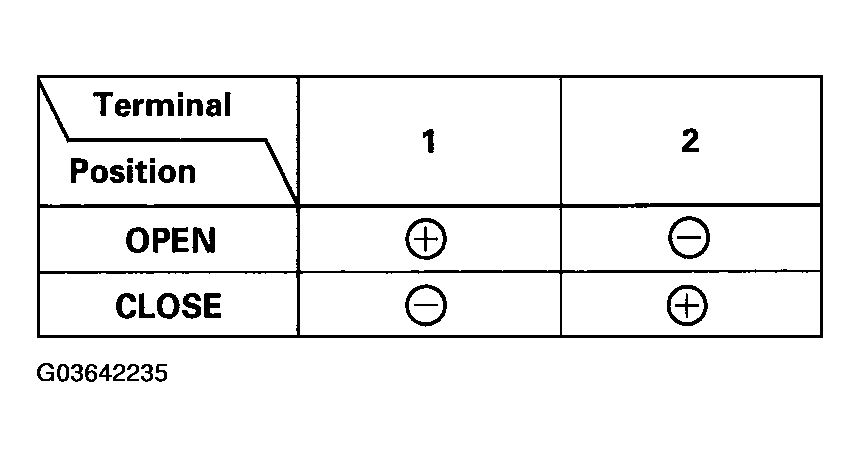

Fig 2: Checking Motor Connecting Power And Ground Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run, replace it.
NOTE: See closing force check (see CLOSING FORCE AND OPENING DRAG CHECK ) for motor clutch test.
