Tailgate Latch Switch Test

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 2P connector from the tailgate latch.

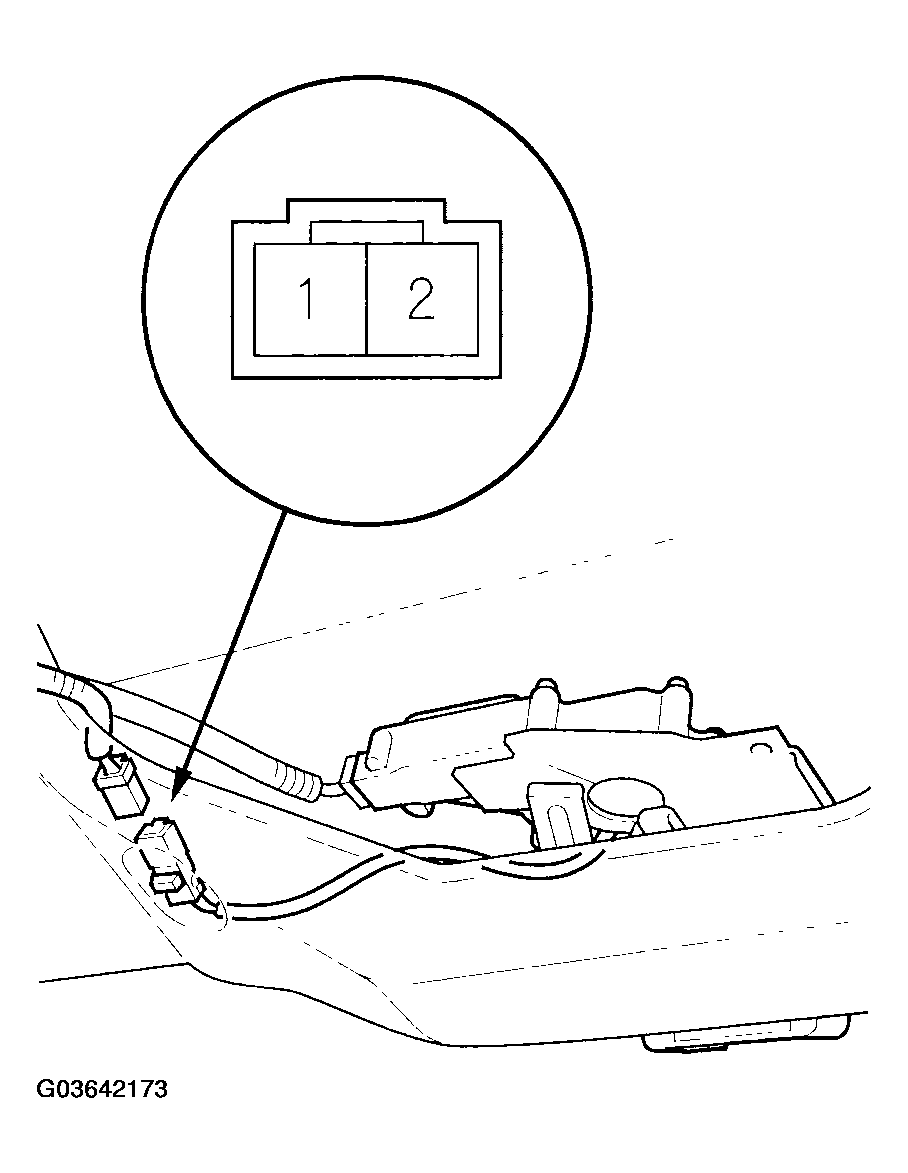

    Fig 1: Disconnecting 2P Connector From Tailgate Latch
    G03642173Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the No. 1 and No. 2 terminals.
    • With the tailgate open, there should be continuity.
    • With the tailgate closed, there should be no continuity.
  5. If the continuity is not as specified, replace the latch switch.
