Rear Ceiling Light Test/Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Turn the light switch OFF.
Carefully pry off the lens (A) with a small screwdriver.
CEILING LIGHT: 8 W

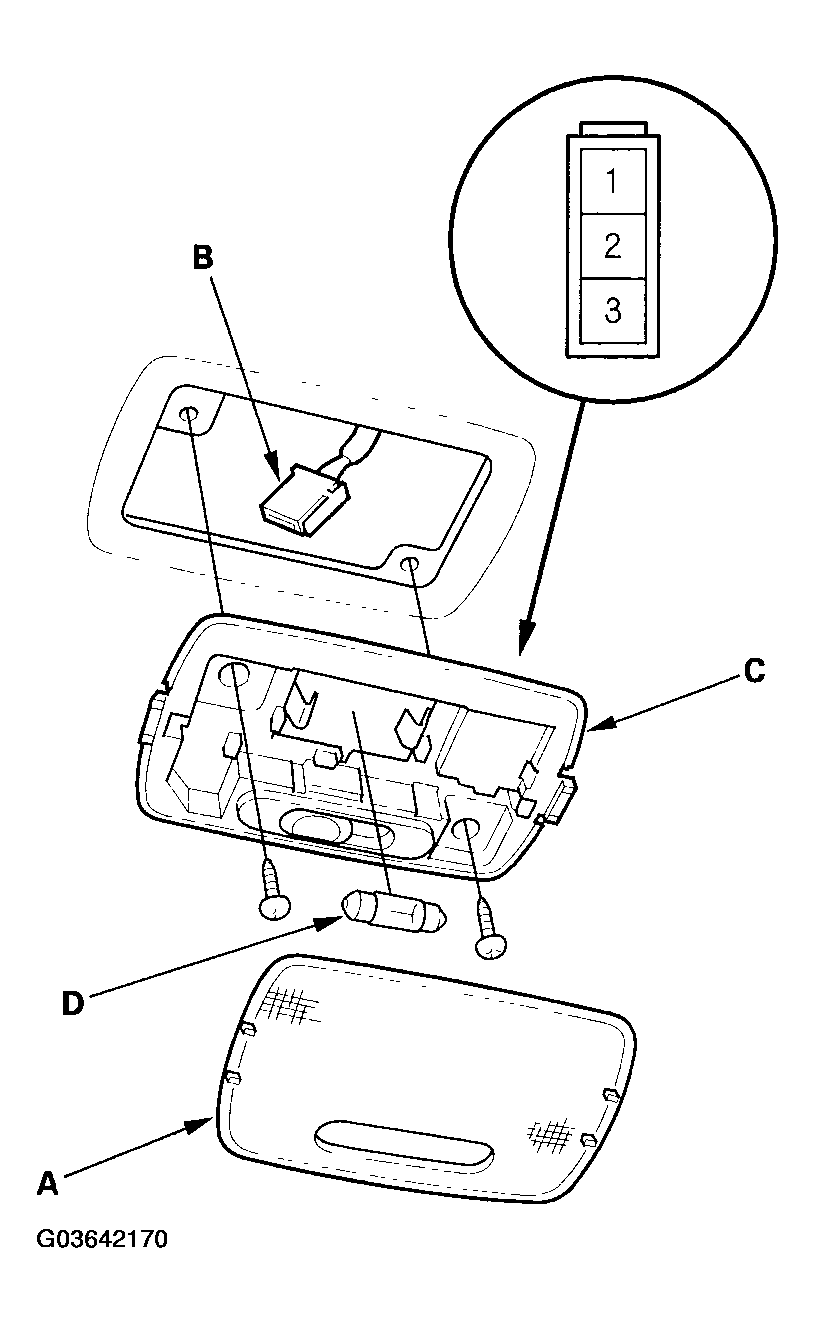

Fig 1: Prying Off Lens With Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two mounting screws.
Disconnect the 3P connector (B) from the housing (C).
Check for continuity between the terminals in each switch position according to the table.
- There should be continuity between the No. 2 and No. 3 terminals with the switch in the MIDDLE position.
- There should be continuity between the No. 2 and No. 1 terminals with the switch in the ON position.
If the continuity is not as specified, check the bulb (D). If the bulb is OK, replace the light.
