'03 Model

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center panel (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the interior lights switch (B).

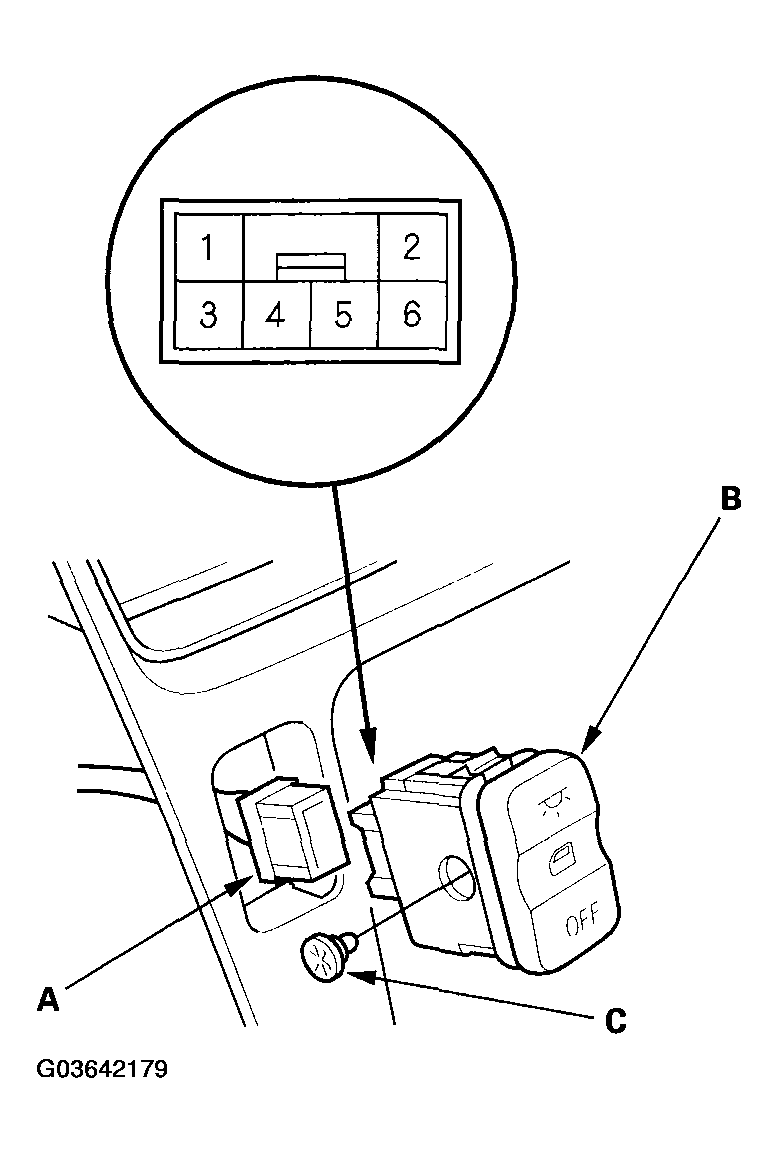

    Fig 1: Disconnecting 6P Connector From Interior Lights Switch
    G03642179Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull the interior lights switch out of the center panel.
  4. Check for continuity between the terminals in each switch position according to Fig 2 .

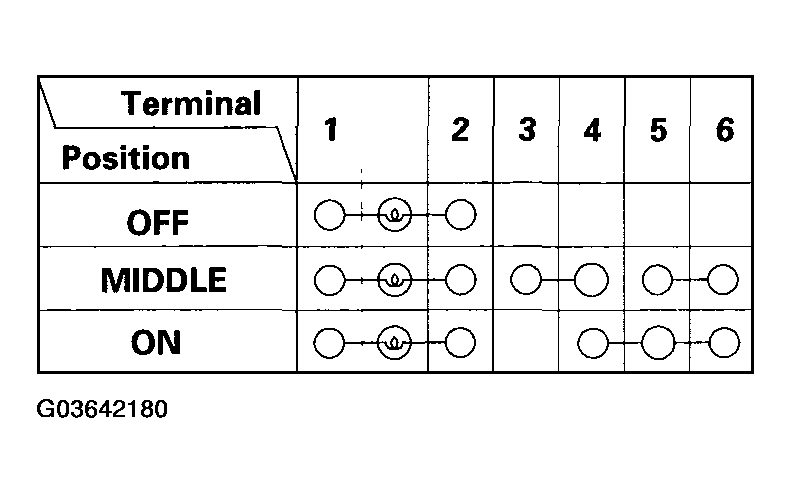

    Fig 2: Checking Continuity Between Terminals In Switch Position Chart
    G03642180Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the illumination bulb (C) or the switch.
