'03 Model

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the light switch OFF.
  2. Carefully pry off the lens (A) with a small screwdriver.

    MAP LIGHT: 6.2 w x 2

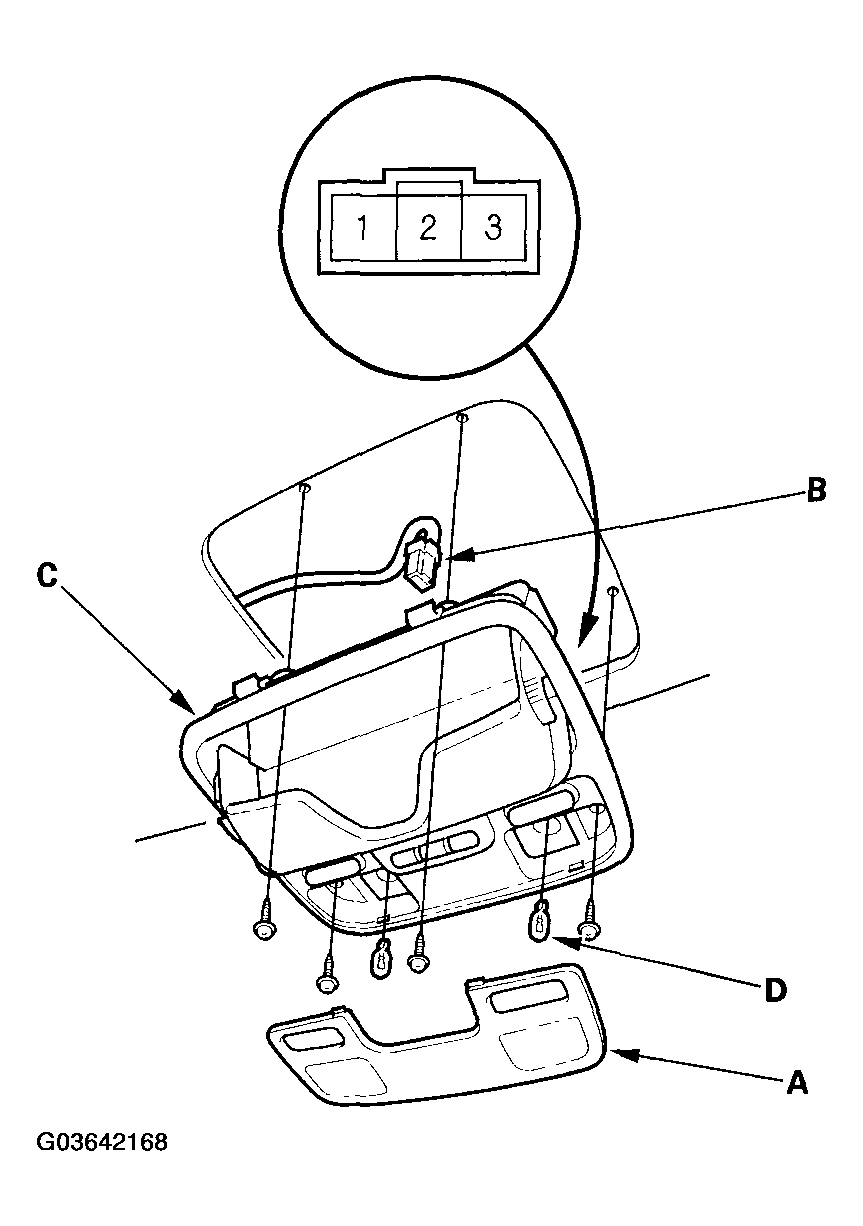

    Fig 1: Prying Off Lens With Screwdriver
    G03642168Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting screws.
  4. Disconnect the 3P connector (B) from the housing (C).
  5. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 3 terminals with the left switch ON.
    • There should be continuity between the No. 1 and No. 2 terminals with the right switch ON.
  6. If the continuity is not as specified, check the bulb(s) (D). If the bulbs are OK, replace the light.
