DTC Indicator F: A Short In The Sunlight Sensor Circuit
WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the sunlight sensor 2P connector.
- Disconnect climate control unit connector B (26P).

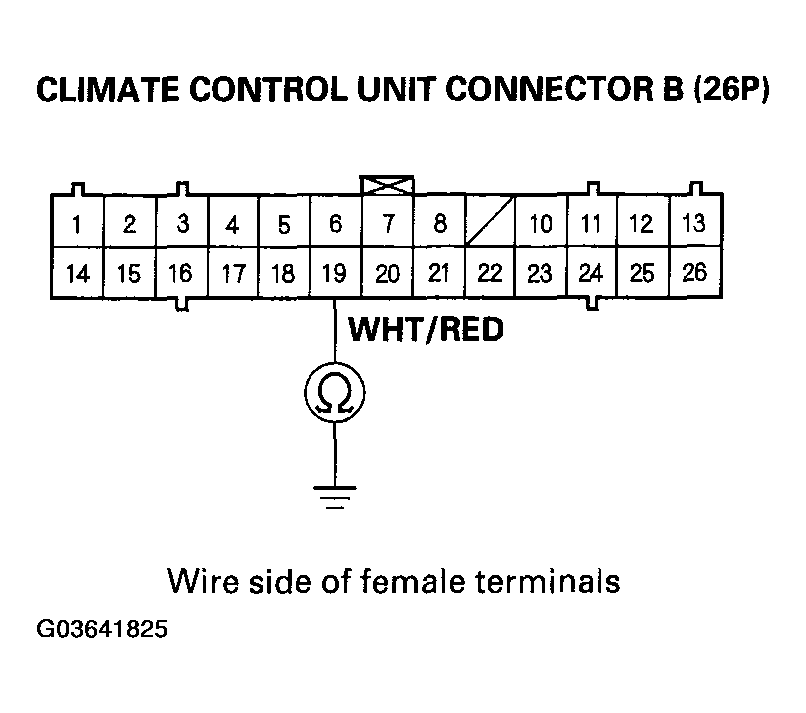

- Check for continuity between the No. 19 terminal of climate control unit connector B (26P) and body ground.Fig 1: Checking For Continuity Between No. 19 Terminal Of Climate Control Unit Connector B And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Repair short to body ground in the wire between the climate control unit and the sunlight sensor.
- NO - Go to step 4.
- Reconnect the sunlight sensor 2P connector.
- Reconnect climate control unit connector B (26P).
- Test the sunlight sensor (see SUNLIGHT SENSOR TEST
).
Does the sunlight sensor test OK?
- YES - Substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit.
- NO - Replace the sunlight sensor.
