Left Front Splash Guard Reinforcement Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove these items:
- Left front splash guard (see SIDE SILL PANEL REPLACEMENT )
- Left inner fender, as necessary (see SIDE SILL PANEL REPLACEMENT )
- Left side sill panel (see SIDE SILL PANEL REPLACEMENT )
Remove the bolts, then remove the left front splash guard reinforcement (A). Take care not to scratch the body.

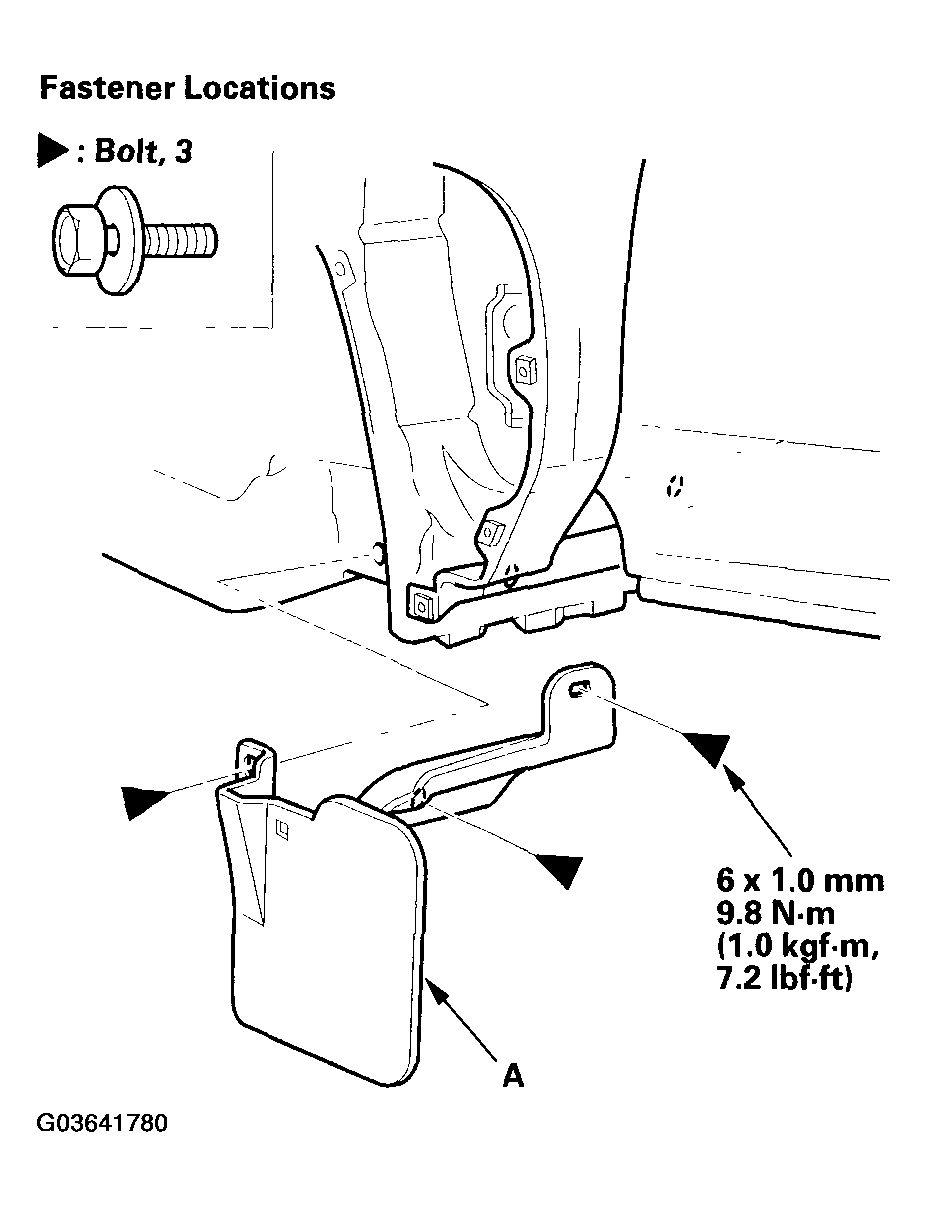

Fig 1: Removing Left Front Splash Guard Reinforcement
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the reinforcement in the reverse order of removal.
