Front Fender Fairing Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front inner fender as necessary (see FRONT INNER FENDER REPLACEMENT ).
Open the front door. From inside the door, remove the clips securing the front fender fairing (A).

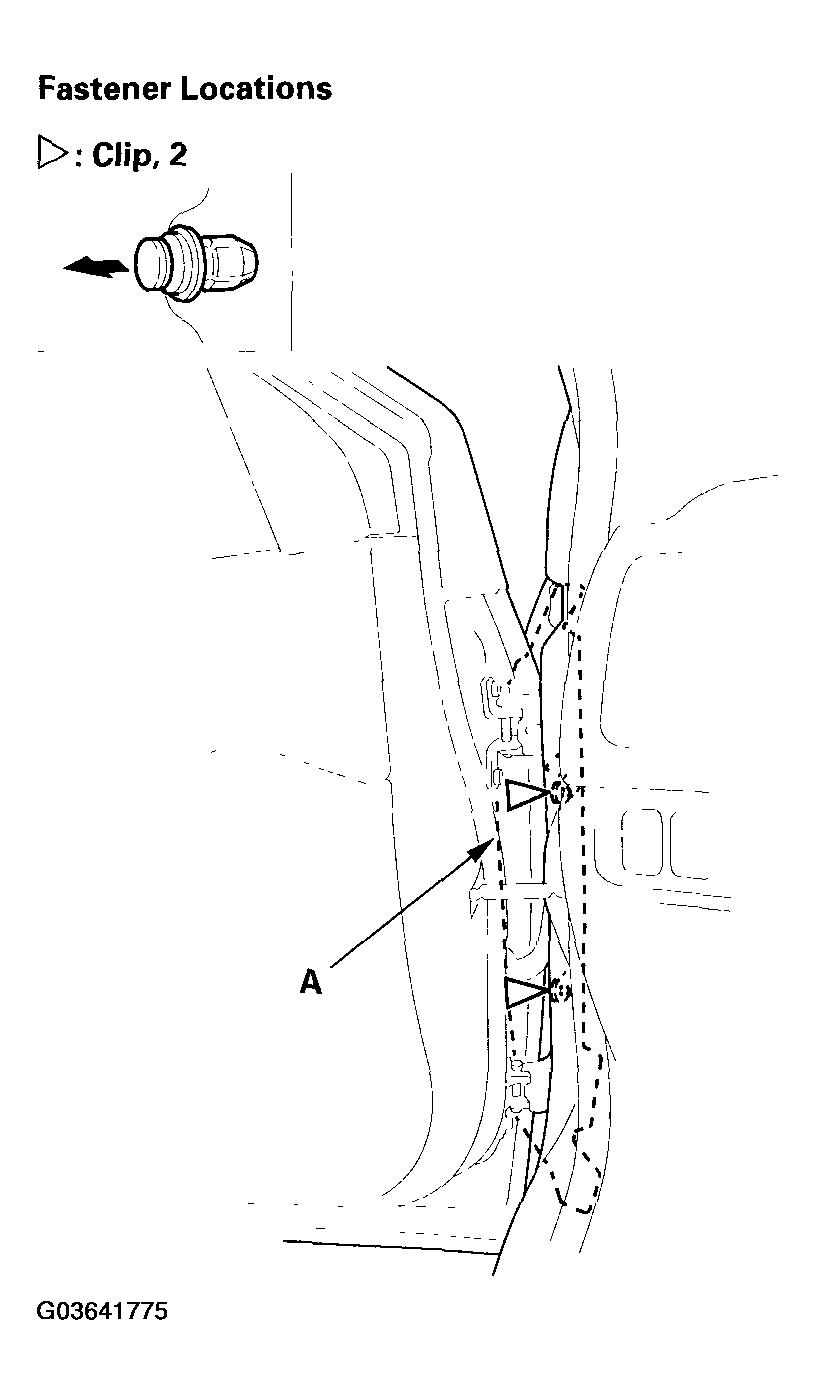

Fig 1: Removing Clips Securing Front Fender Fairing From Inside Door
Courtesy of AMERICAN HONDA MOTOR CO., INC.
From the wheel arch, release the clip, then remove the front fender fairing (A).

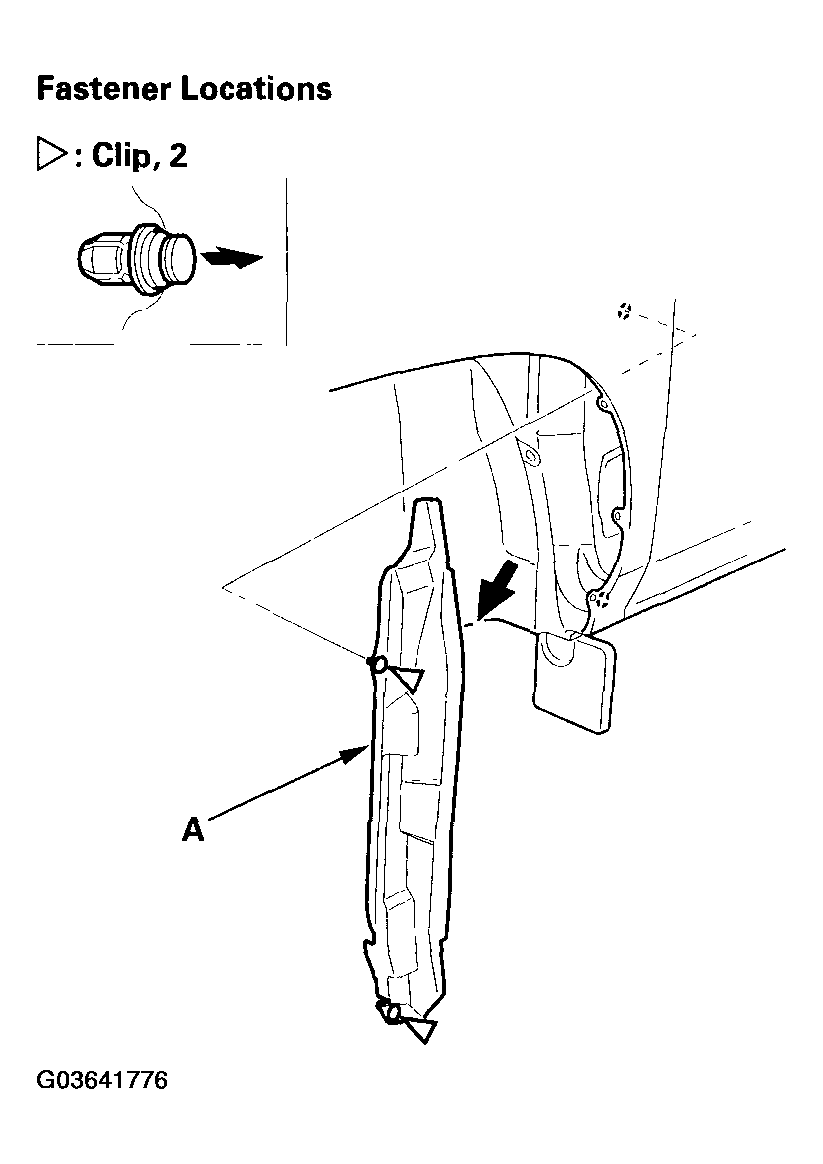

Fig 2: Removing Clips Securing Front Fender Fairing From Wheel Arch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the fender fairing in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
