Hood Support Strut Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

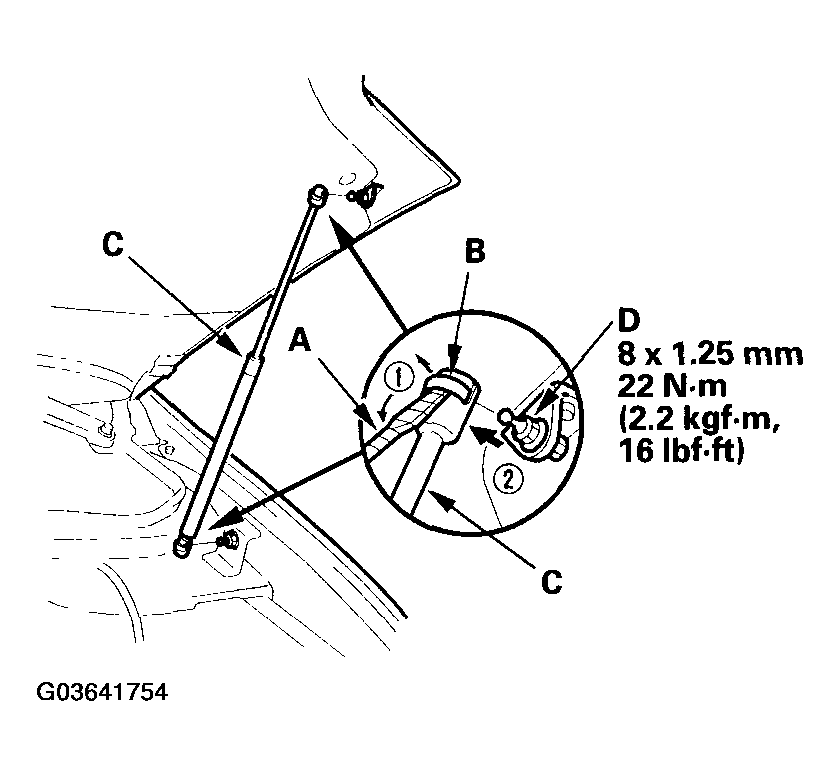

With the help of an assistant, use a flat-tip screwdriver (A) to pry the support strut clips (B) of the support strut (C) on the hood and body, then release the support strut from the pivot bolts (D). Do not remove the clips from the support strut.

Fig 1: Removing Support Strut Clips Using Screwdriver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

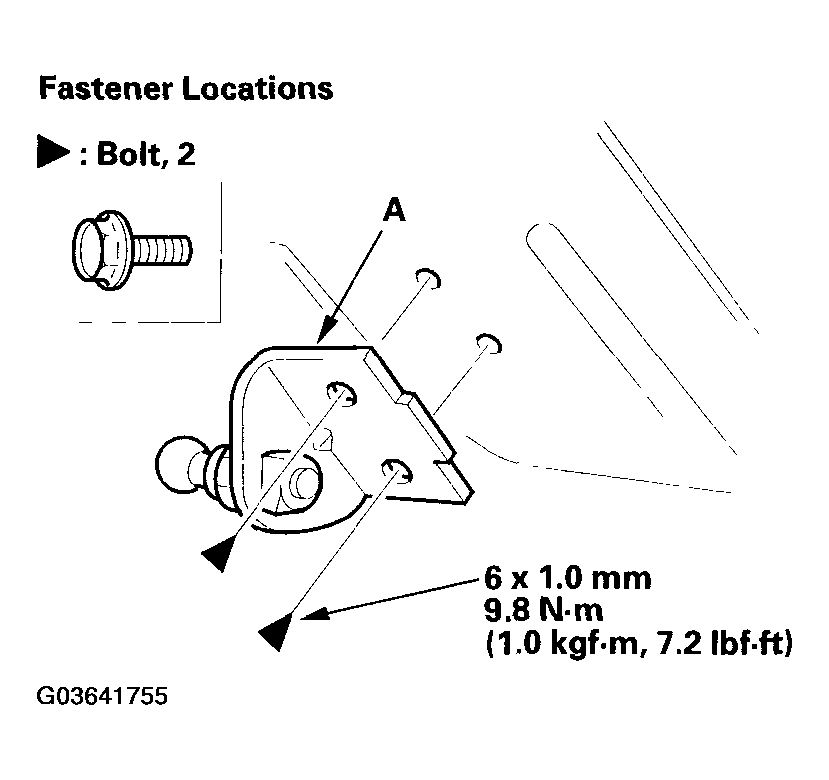

Remove the bolts, then remove the pivot bracket (A).

Fig 2: Removing Pivot Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the pivot brackets.

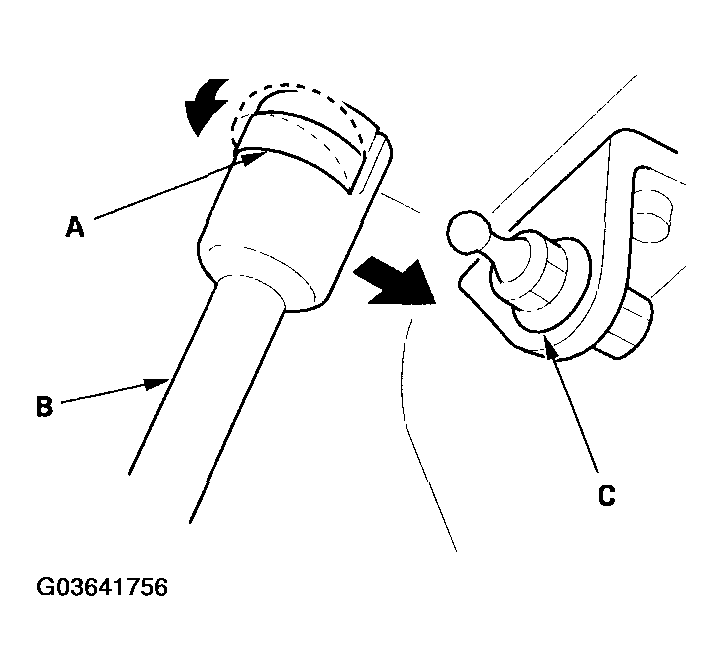

Set the clips (A) to the original position, then reattach the support strut (B) on the pivot bolts (C) by pushing on the support strut.

Fig 3: Reattaching Support Strut On Pivot Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
