Third Row Seat Disassembly/Reassembly

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to kink the seat-back recline cable.
Replace any damaged clips with new ones.
Make sure the seat-back recline cable is connected securely.
To prevent wrinkles in the seat-back cover, make sure the material is stretched evenly over the pad before securing the clip.

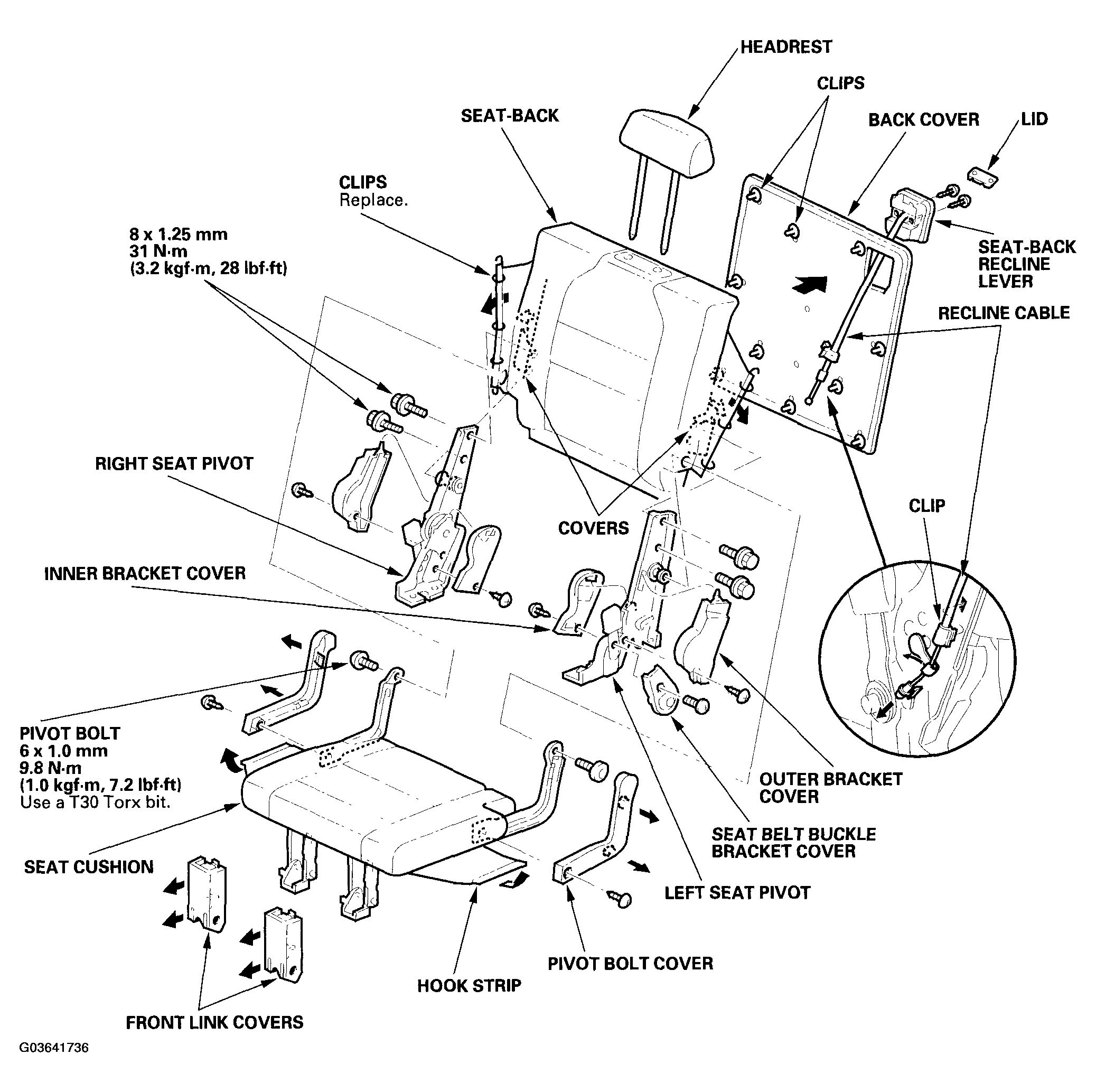

Fig 1: Third Row Seat Disassembly/Reassembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
