Right Second Row Seat Linkage Disassembly/Reassembly: Notes

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Take care not to kink the slide cable.
Replace the push nut with a new one.
Apply multipurpose grease to the sliding portions.
Make sure the slide cable is connected securely, and if necessary, adjust the cable.

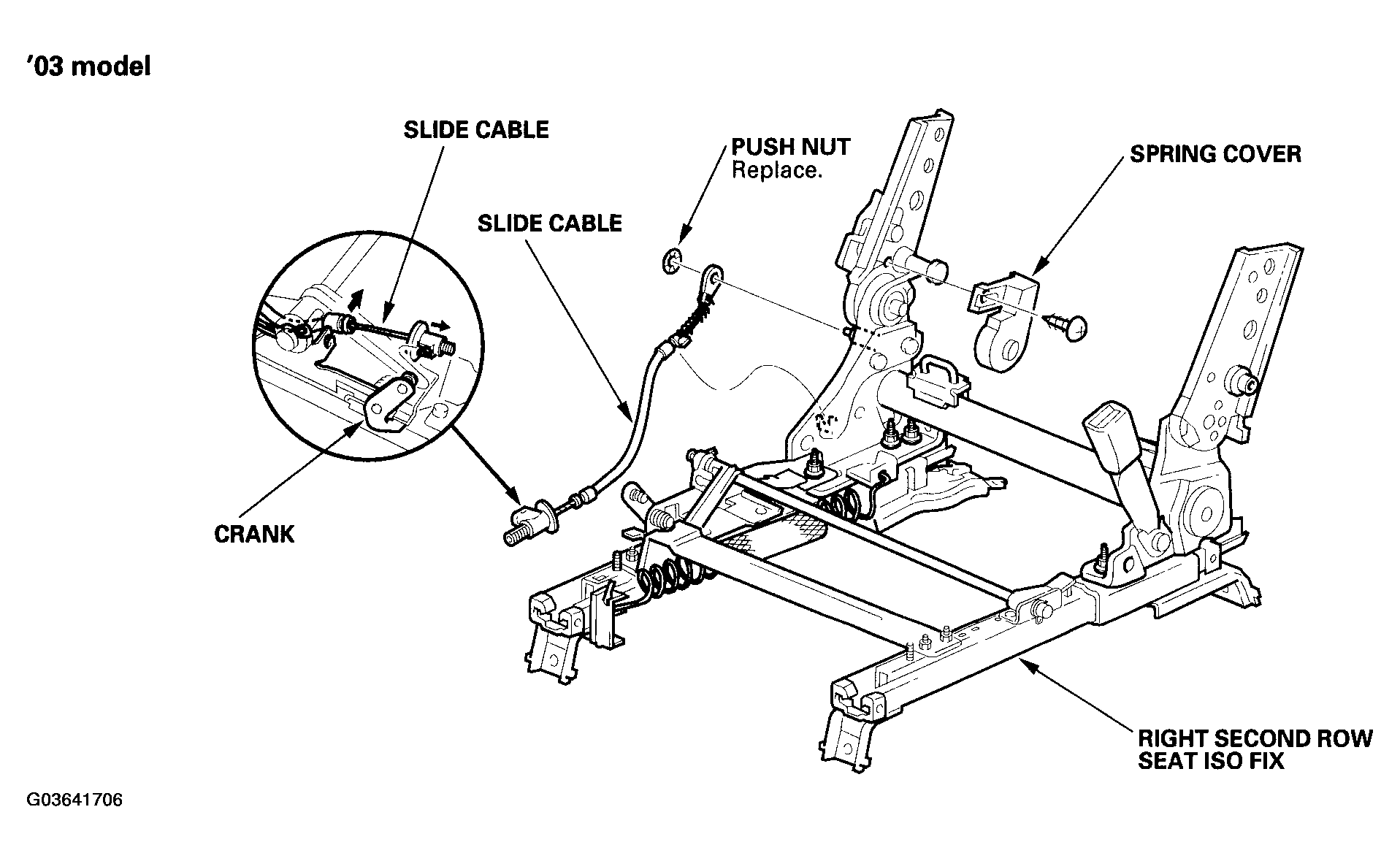

Fig 1: Right Second Row Seat Linkage Disassembly/Reassembly ('03 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

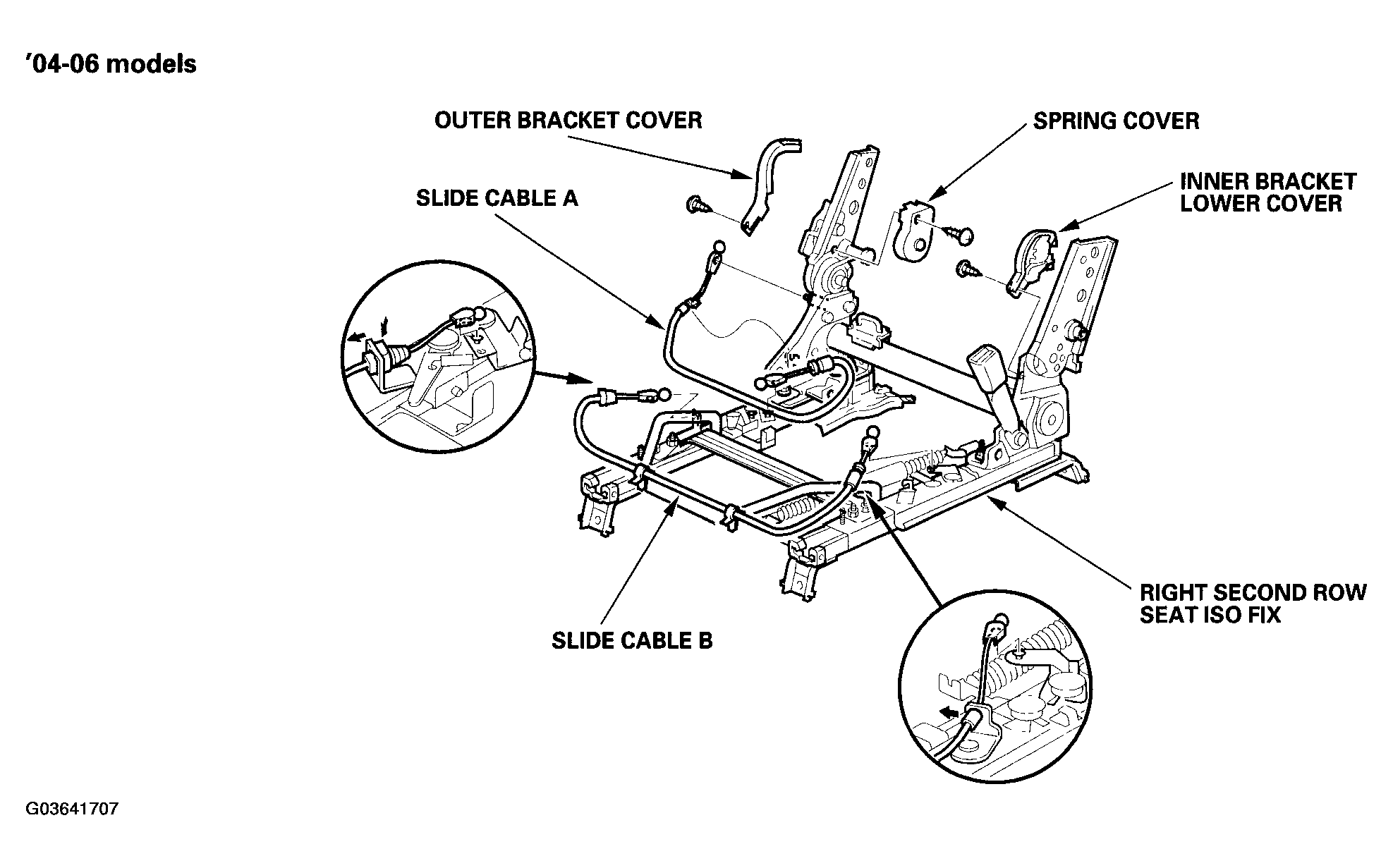

Fig 2: Right Second Row Seat Linkage Disassembly/Reassembly ('04-06 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
