Dashboard Lower Cover Removal/Installation

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the driver's dashboard side cover (see DASHBOARD SIDE COVER REMOVAL/INSTALLATION ).
Remove the dashboard lower cover (A).
- -1 Remove the screw (B).
- -2 Gently pull down on the lower cover to release the clips (C).
- -3 Disconnect the cruise control main switch/VSA off switch connector (D), moonroof switch connector (E), fog light switch connector (F), air hose (G), and in-car temperature sensor connector (H), then remove the cover.

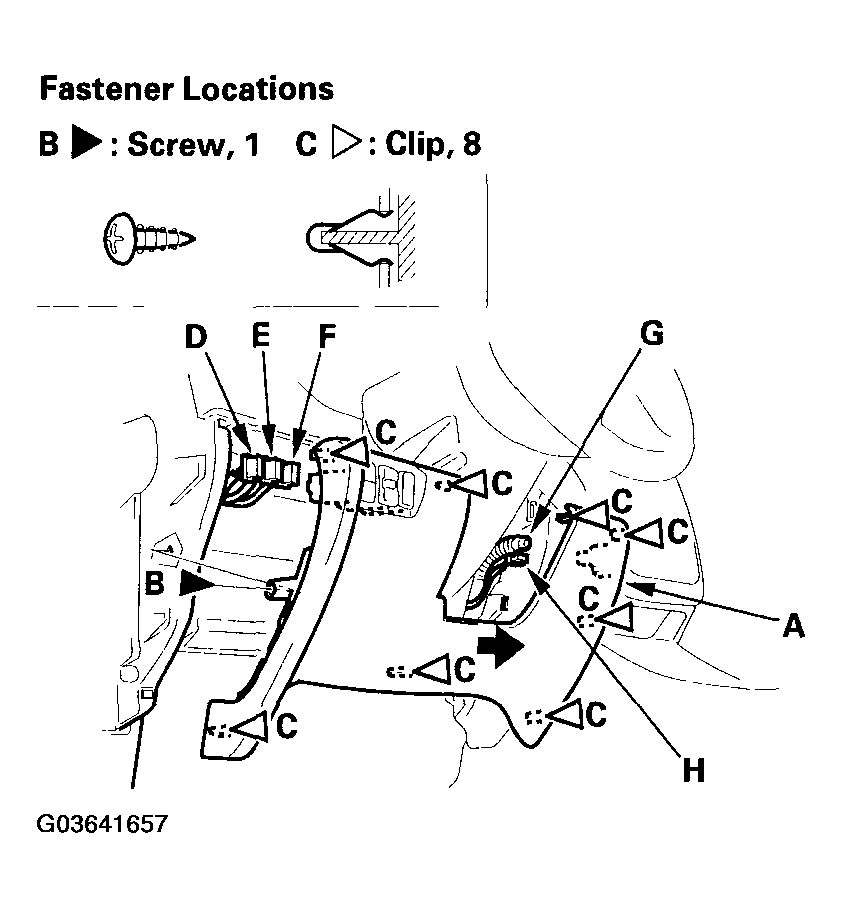

  Fig 1: Removing Dashboard Lower Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the dashboard lower cover in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly, and the air hose is connected properly.
- Push the clips into place securely.
