Center Lower Cover Removal/Installation

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Take care not to scratch the dashboard and related parts.
  1. Without rear entertainment system: Remove the center panel lower trim (see step 2 in CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. With rear entertainment system: Remove the console panel (see step 1 in CENTER CONSOLE REMOVAL/INSTALLATION ), and remove the DVD panel (see step 3 in CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the coin pocket (A) (without rear entertainment system) and screws fastening the center lower cover (B).

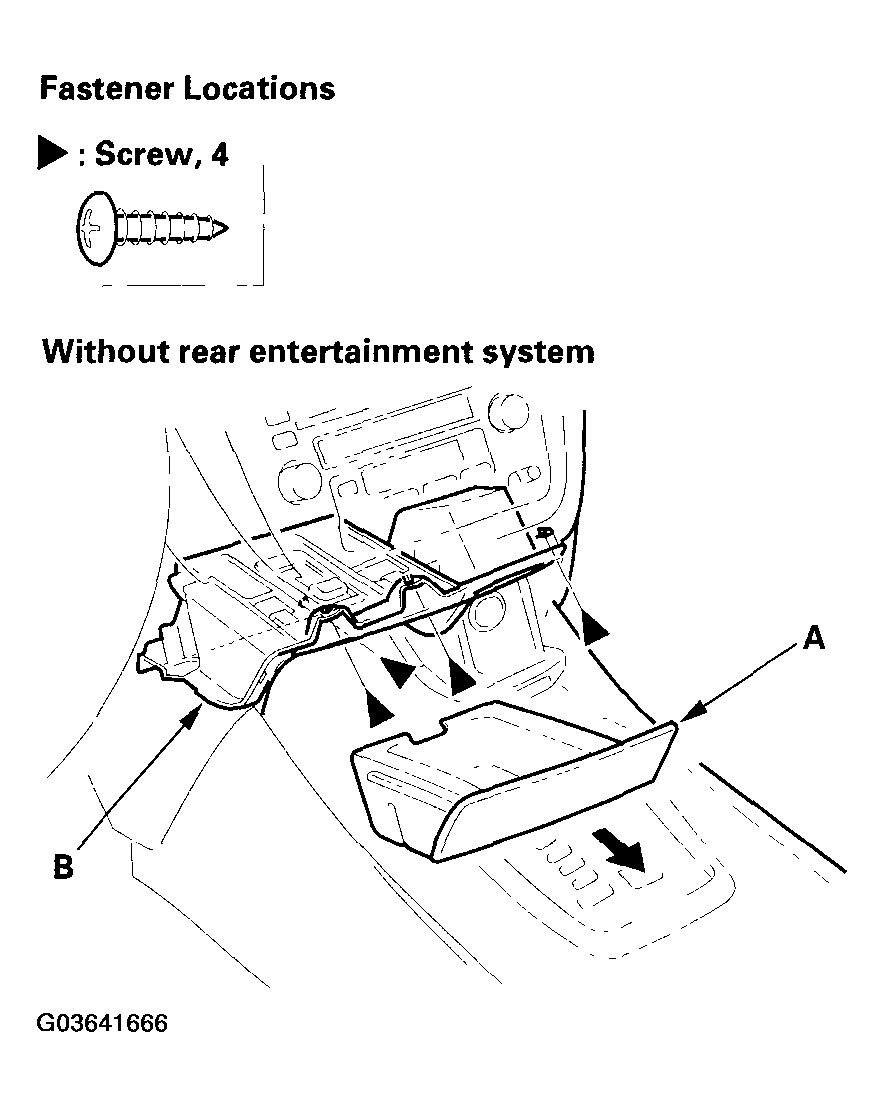

    Fig 1: Removing Coin Pocket (Without Rear Entertainment System)
    G03641666Courtesy of AMERICAN HONDA MOTOR CO., INC.

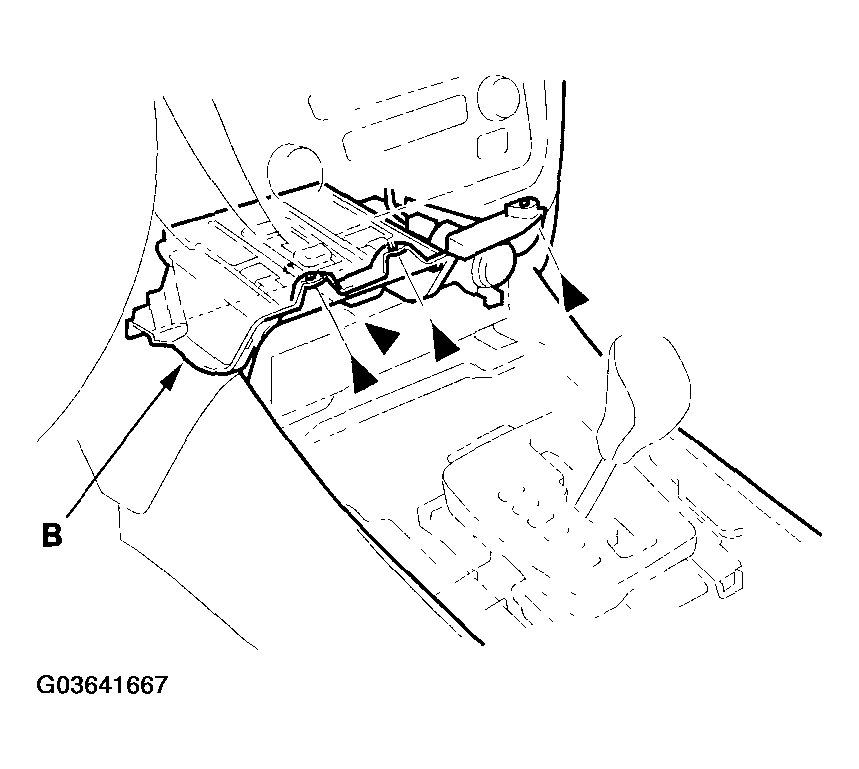

    Fig 2: Removing Coin Pocket (With Rear Entertainment System)
    G03641667Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Lower the center lower cover (A). Disconnect the accessory socket connector (B) and detach the harness clip (C), then remove the cover.

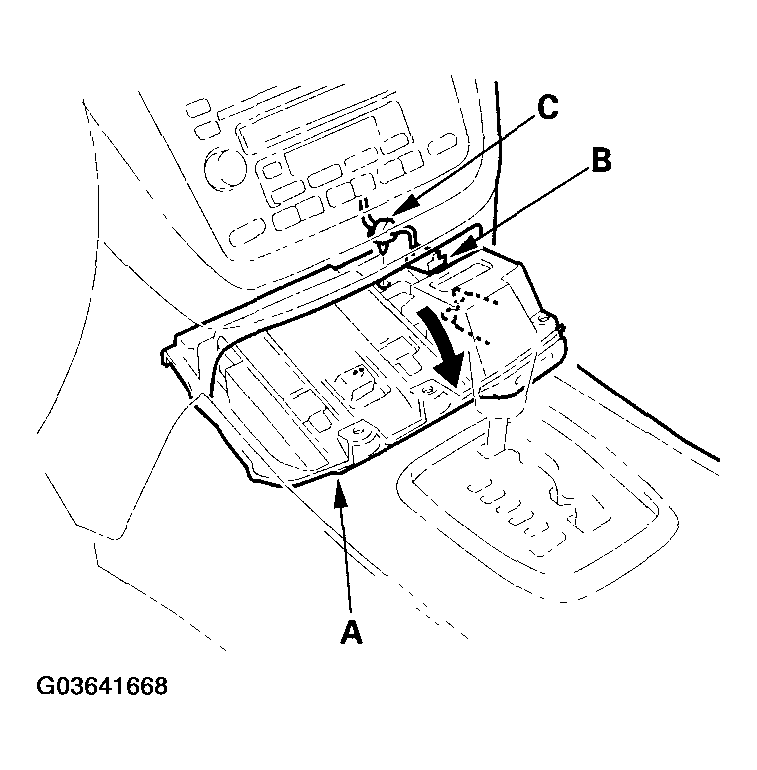

    Fig 3: Disconnecting Accessory Socket Connector And Detaching Harness Clip
    G03641668Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the center lower cover in the reverse order of removal, and make sure the accessory socket connector is plugged in properly.
