Wind Deflector Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws, then remove the wind deflector (A) and the deflector arm spring (B) in the sequence shown in Fig 1 . Take care not to scratch the roof panel.

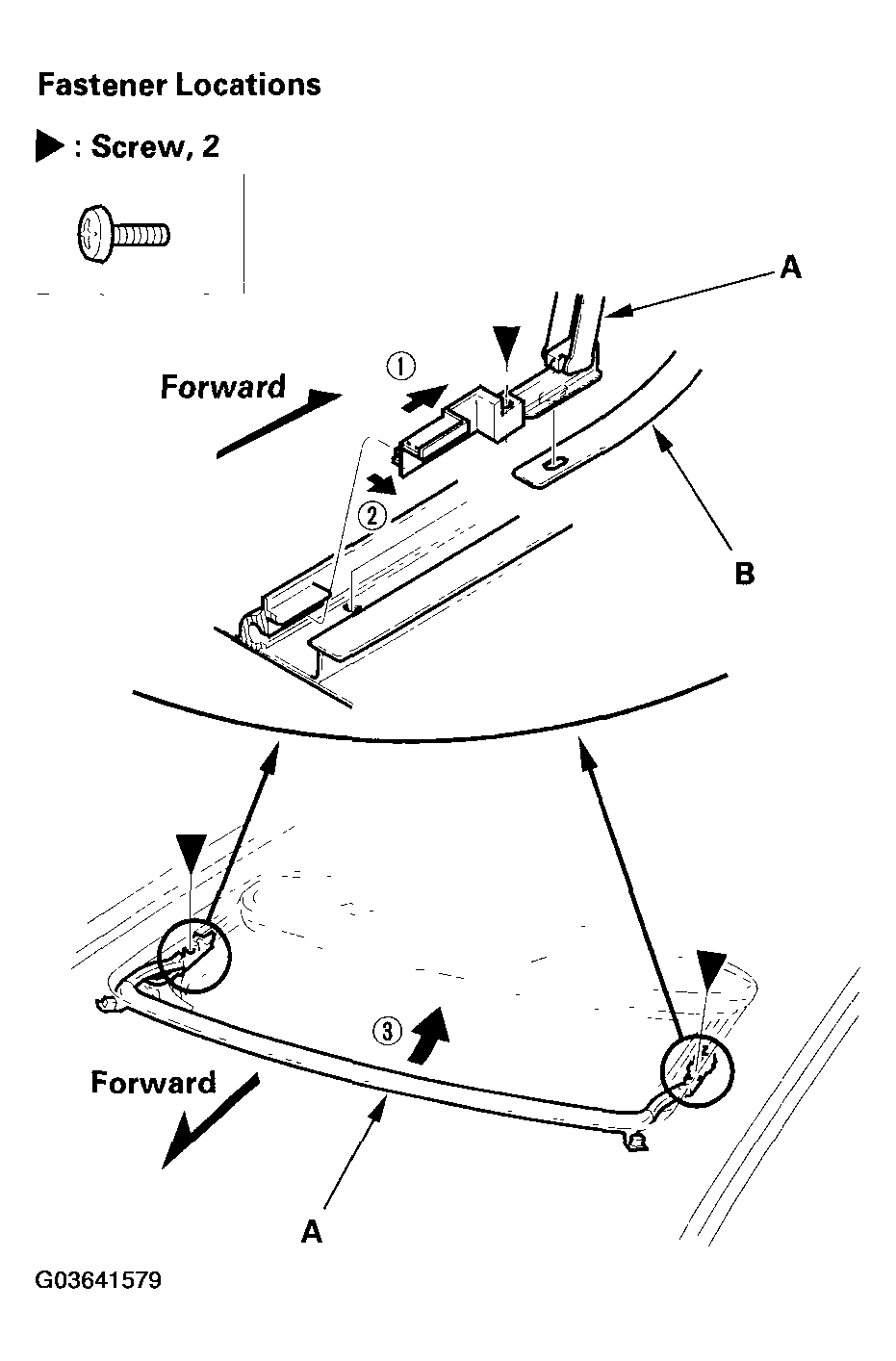

    Fig 1: Removing Wind Deflector And Deflector Arm Spring In Sequence
    G03641579Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the deflector in the reverse order of removal.
