Motor Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
  2. Put on gloves to protect your hands. Disconnect and detach the connector (A), and remove the bolts, then remove the motor (B).

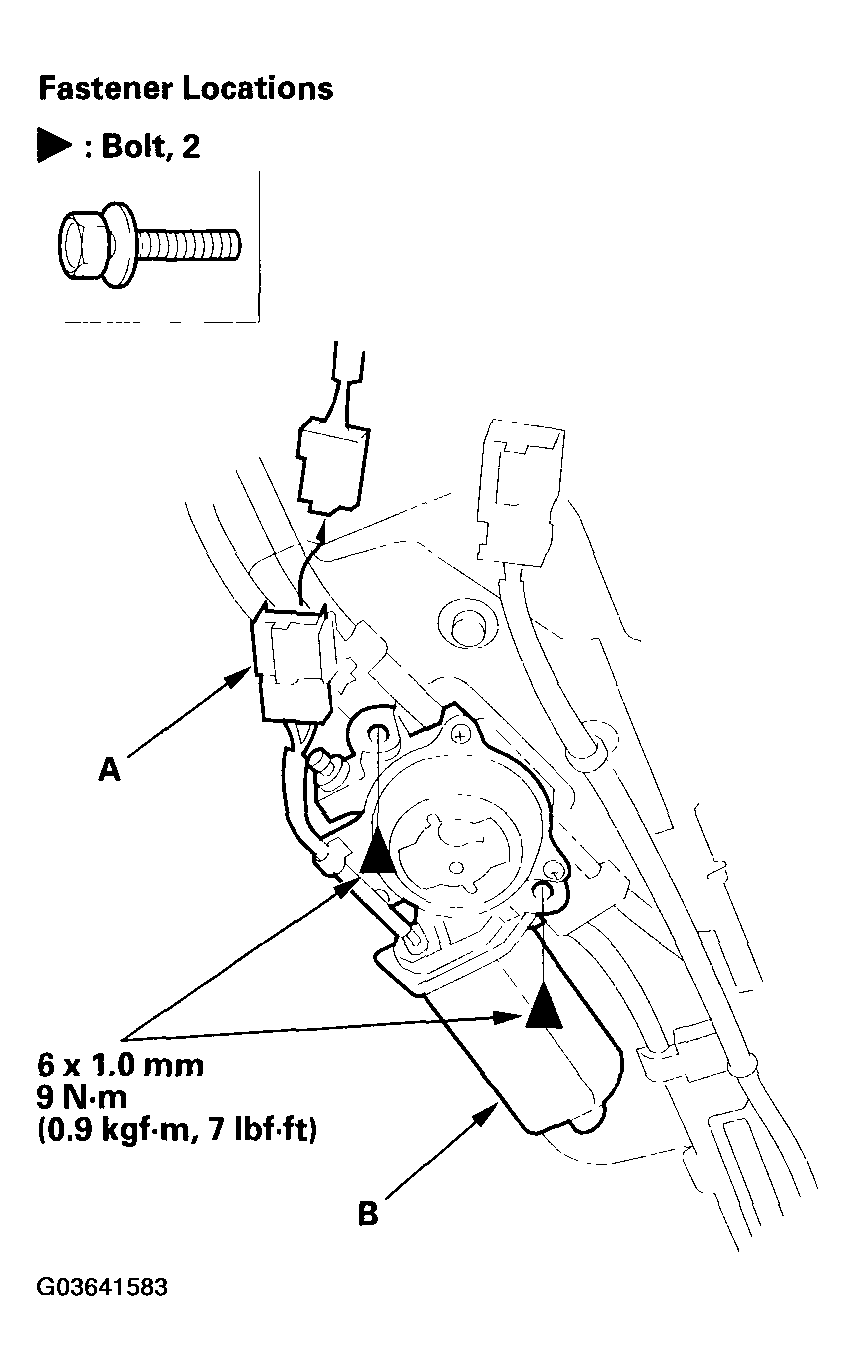

    Fig 1: Disconnecting And Detaching Connector
    G03641583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the motor in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Check the motor operation.
