Damper/Spring Replacement: Installation

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosely install the damper (A) onto the frame, then loosely install the new three flange nuts (B).

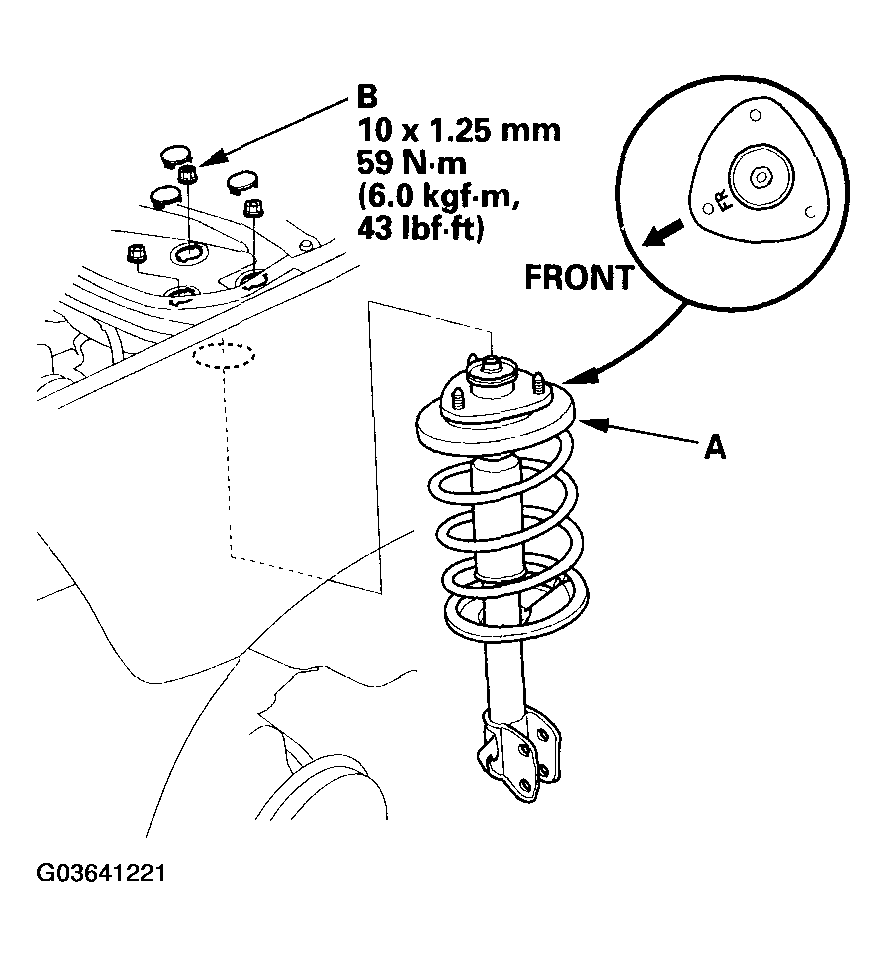

    Fig 1: Installing Damper And New Three Flange Nuts
    G03641221Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the damper onto the knuckle.
    NOTE: The illustration shows '04-06 models. For '03 model, the installation directions of the damper pinch bolts are reversed.
    1. Loosely install the new damper pinch bolts (A) and new flange nuts (B) to the damper (C).
    2. Install the wheel sensor harness (D) to the damper.
    3. Install the brake hose bracket (E) to the damper.
    4. Loosely install the stabilizer link (F) to the damper.

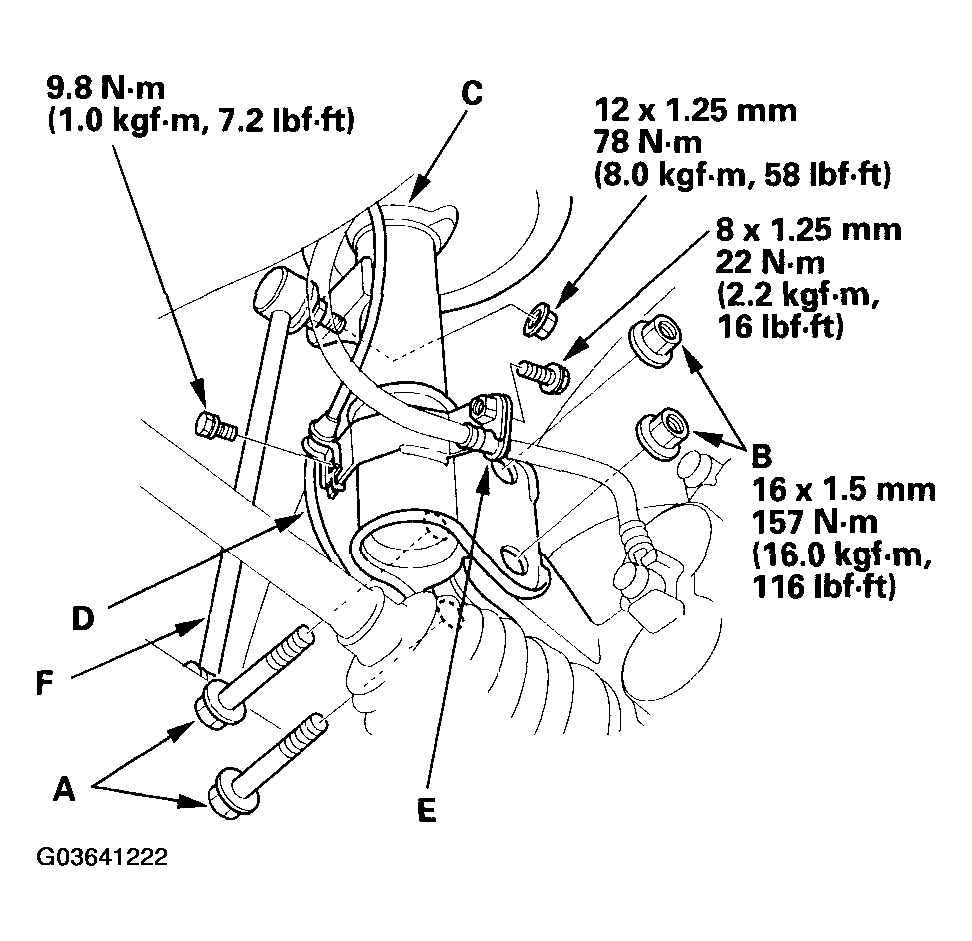

      Fig 2: Installing Damper Onto Knuckle
      G03641222Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Raise the front suspension with a floor jack to load the suspension with the vehicle's weight.
  4. Tighten the damper pinch bolts and flange nuts to the specified torque value.
  5. Tighten the flange nuts on top of the damper to the specified torque value.
  6. Install the service caps.
  7. Install the front wheels.
  8. Check the front wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT ).
