Ball Joint Boot Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

Ball joint boot clip guide 07974-SA50700

  1. Remove the boot clip and the boot.
  2. Pack the interior and lip (A) of a new boot with grease. Do not contaminate the lower collar of the boot (B) with grease.

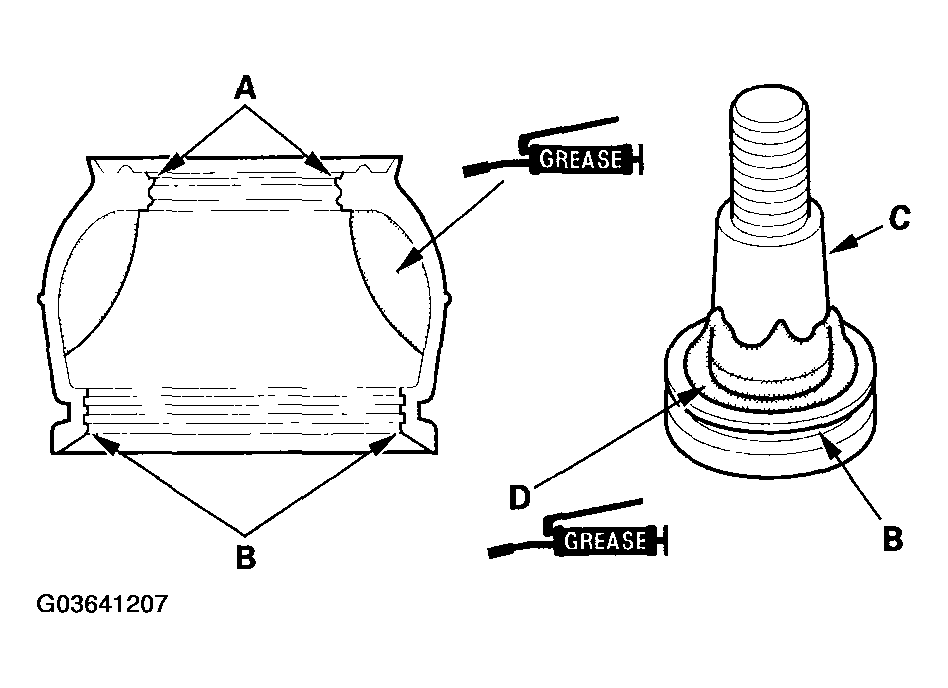

    Fig 1: Packing Interior And Lip Of Boot Using Grease
    G03641207Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Wipe the grease off the tapered section (C) of the pin, and pack fresh grease into the base (D). Do not let dirt or other foreign materials get into the boot.
  4. Install the boot onto the ball joint, then squeeze it gently to force out any air.
  5. Adjust the special tool with the adjusting bolt (A) until its base is just above the groove around the bottom of the boot. Then slide the clip (B) over the tool and into position on the boot.

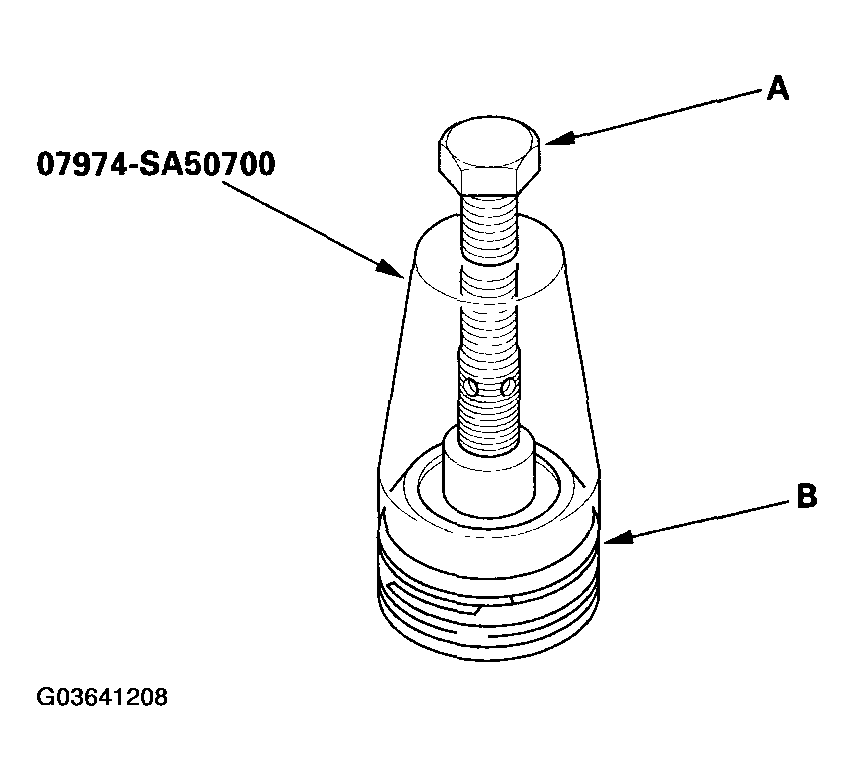

    Fig 2: Installing Boot
    G03641208Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. After installing a boot, wipe any grease off the exposed portion of the ball joint pin.
