VTM-4 Relay Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA ).
  2. Remove the VTM-4 relay (A).

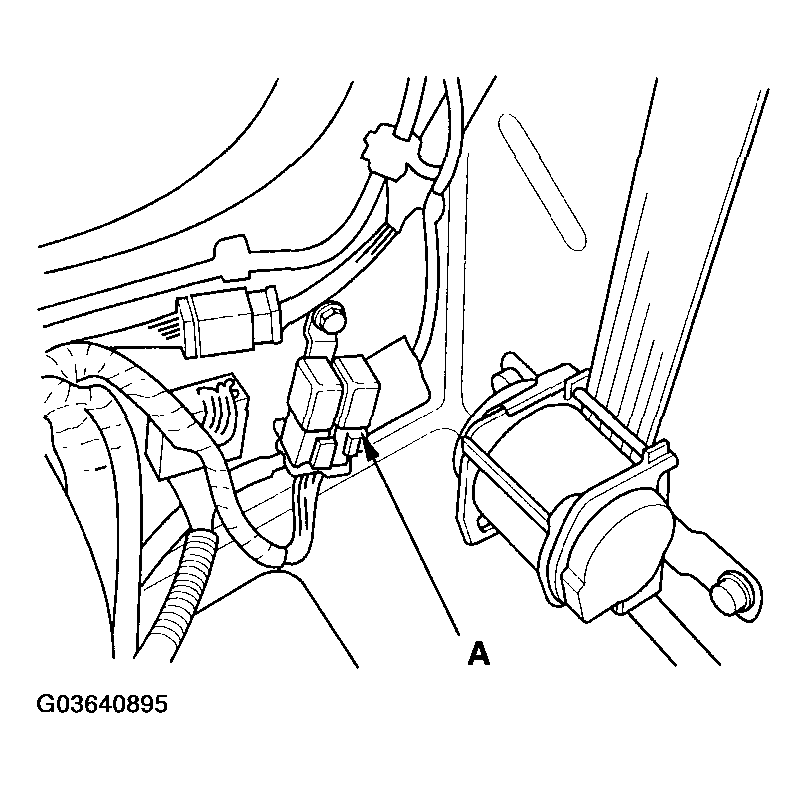

    Fig 1: Removing VTM-4 Relay
    G03640895Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the VTM-4 relay in the reverse order of removal.
