VTM-4 LOCK Button Test/ Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).

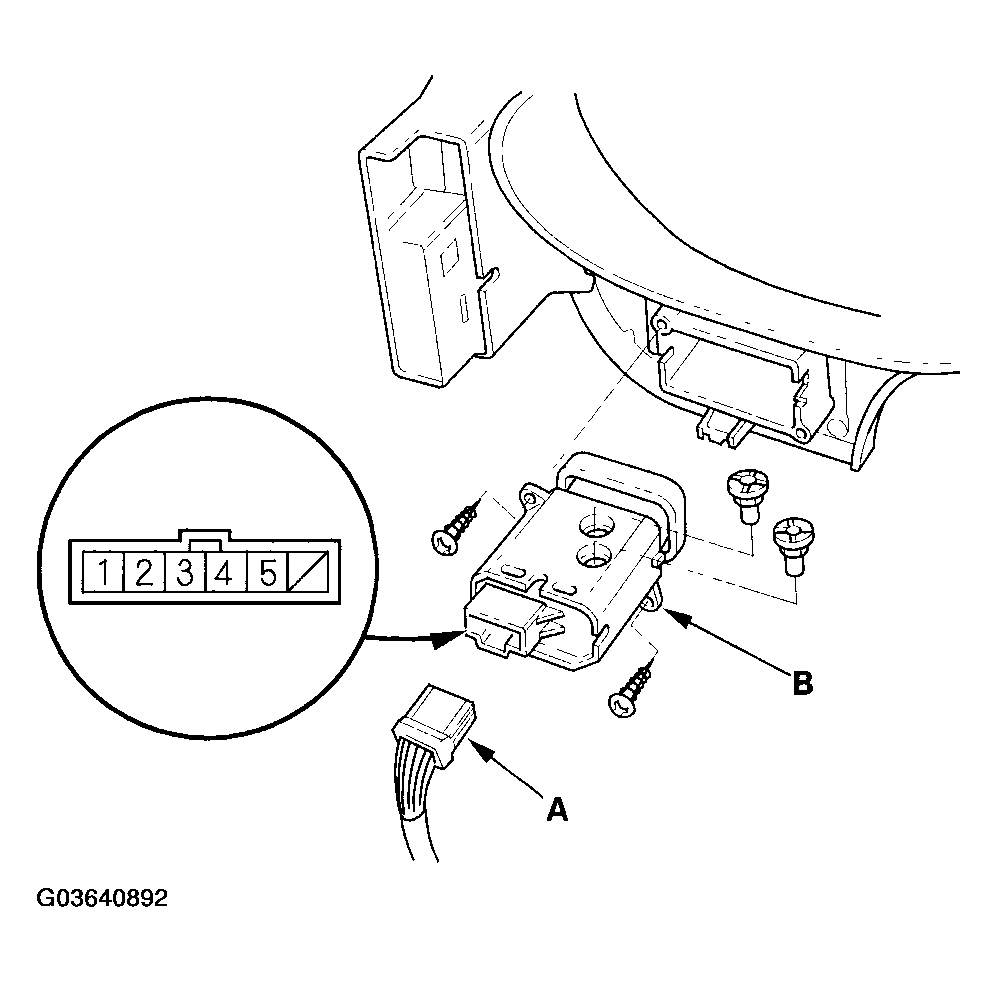

  2. Disconnect the 6P connector (A) from the VTM-4 LOCK button (B), then remove the two screws and the switch.
    Fig 1: Removing Instrument Panel
    G03640892Courtesy of AMERICAN HONDA MOTOR CO., INC.

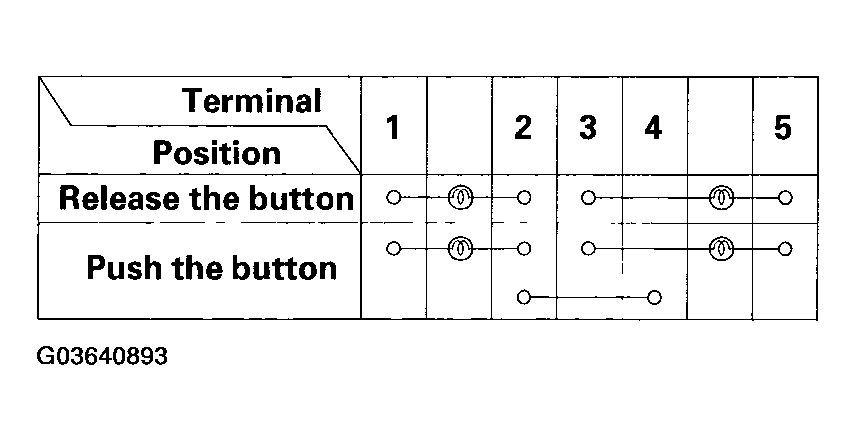

  3. Check for continuity between the terminals in each button position according to the table. If the button fails any continuity check, replace the button.
    Fig 2: Checking For Continuity Between Terminals
    G03640893Courtesy of AMERICAN HONDA MOTOR CO., INC.
