Differential Oil Temperature Sensor Replacement

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

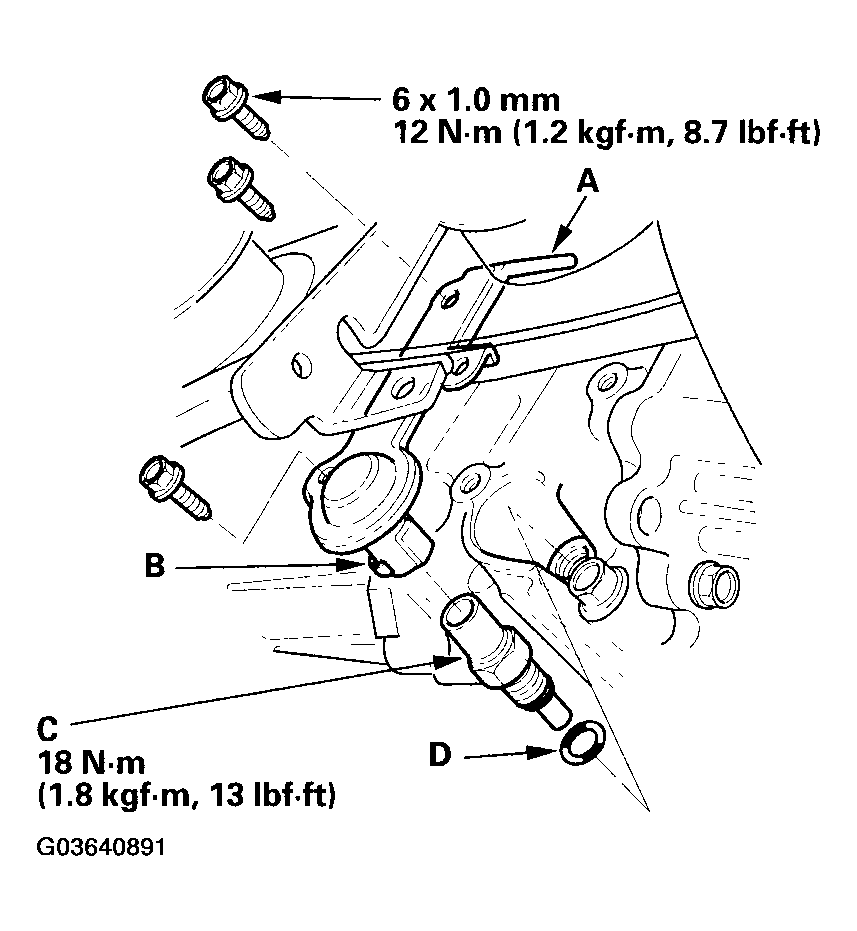

  1. Remove the wire harness cover (A), then disconnect the differential oil temperature sensor 2P connector (B).
    Fig 1: Removing Wire Harness Cover
    G03640891Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the differential oil temperature sensor (C).
  3. Install the differential oil temperature sensor in the reverse order of removal, with a new O-ring (D).
