ECM Inputs and Outputs at Connector E (31P)

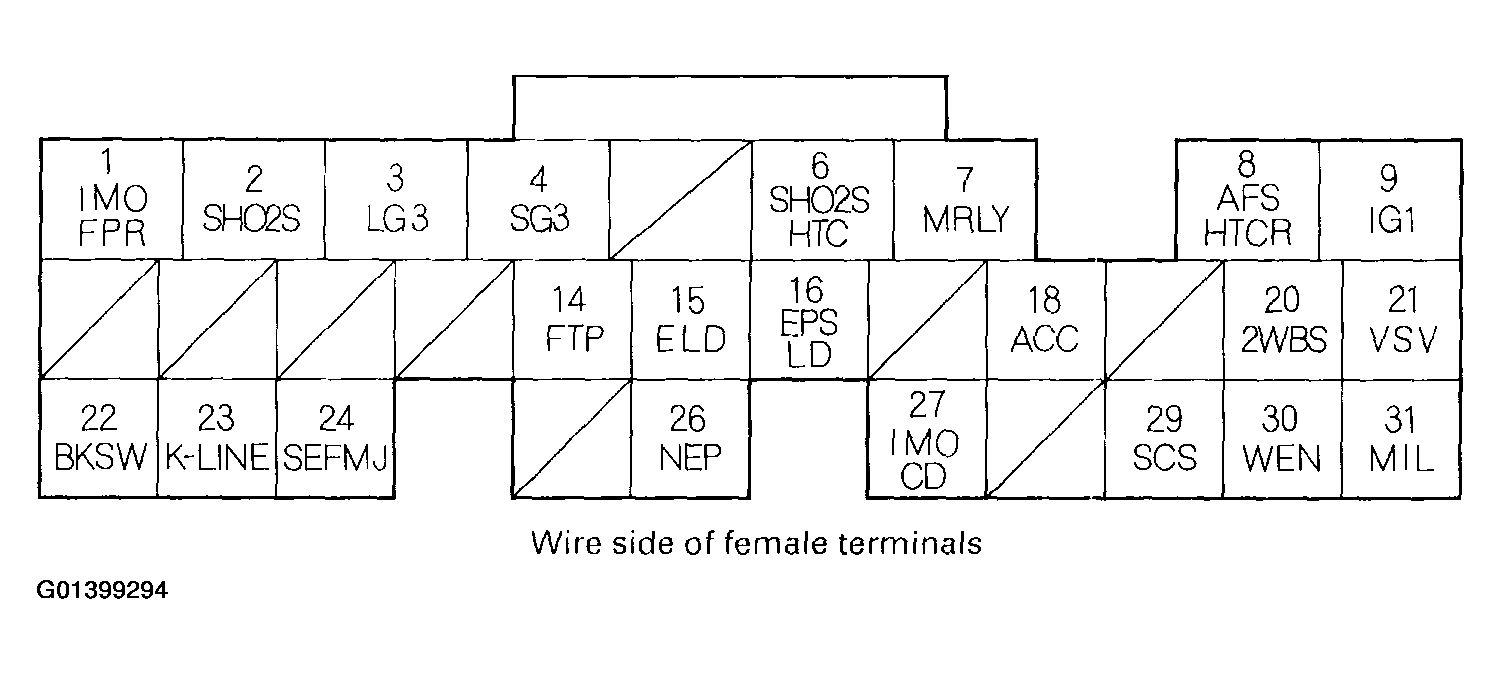

Fig 1: Identifying Connector E (31P) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V.

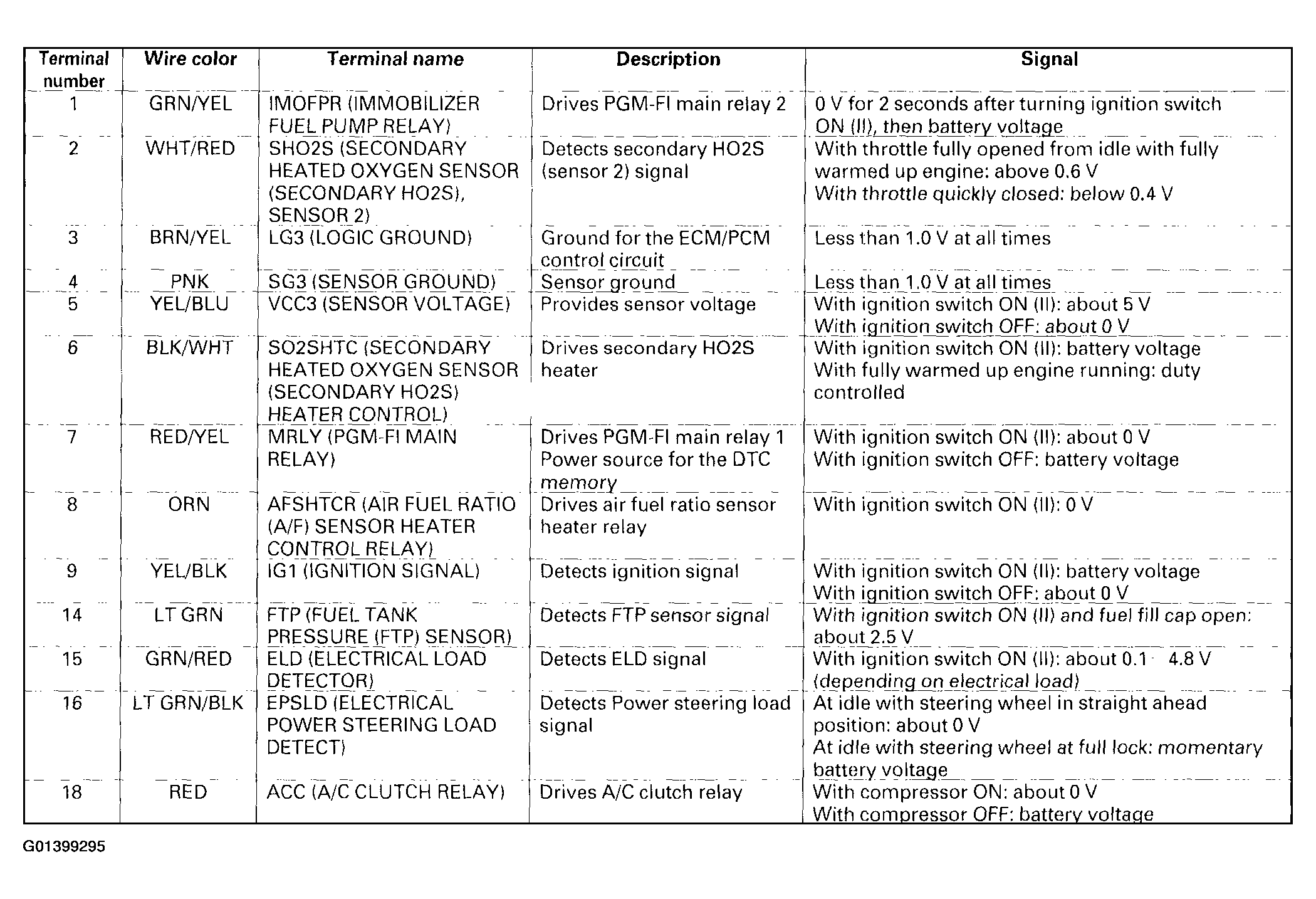

Fig 2: ECM Pin Voltage Chart Connector E (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

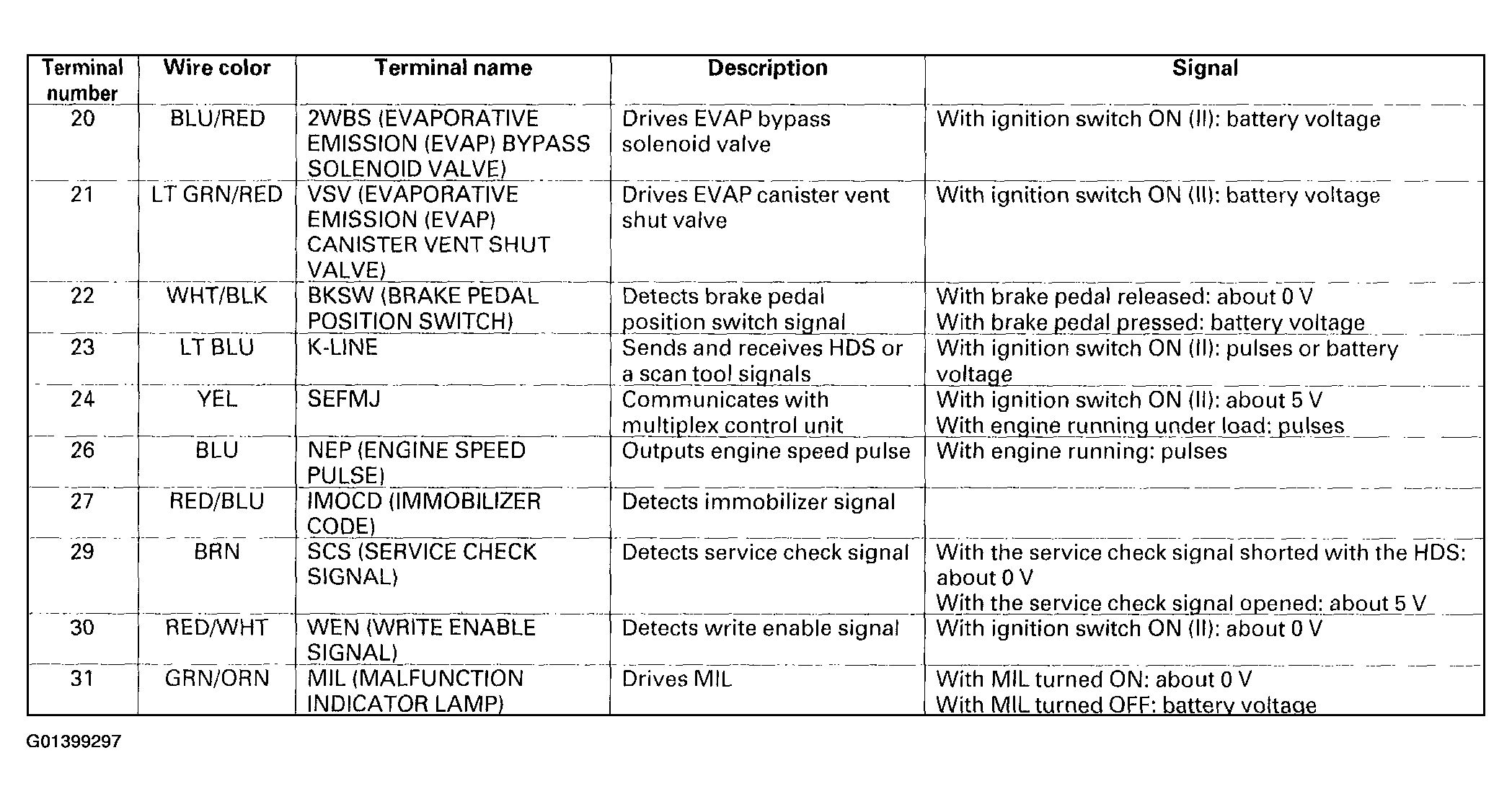

Fig 3: ECM Pin Voltage Chart Connector E (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
