ECM Electrical Connections
ECM Electrical Connections

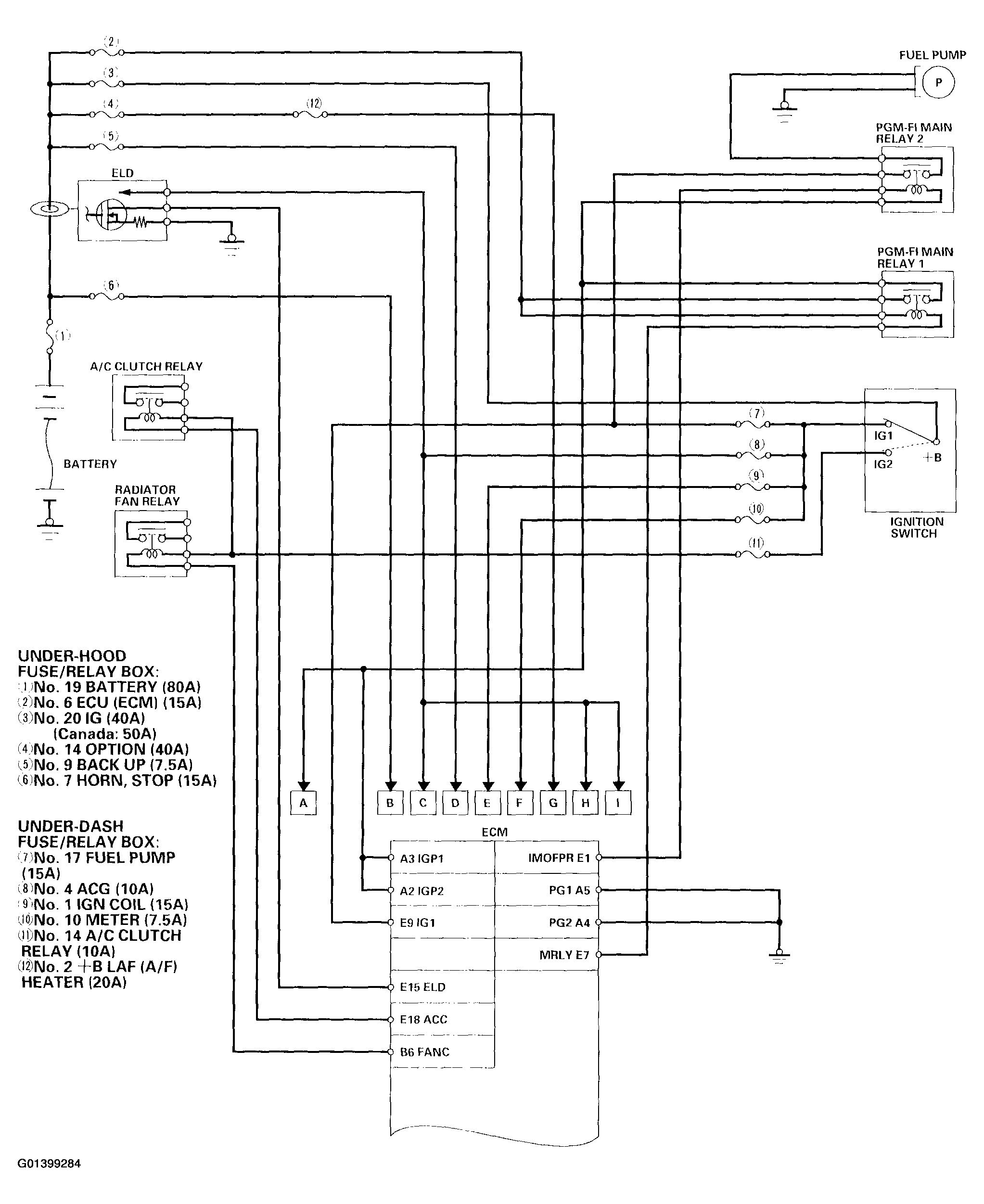

Fig 1: ECM Electrical Connections (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

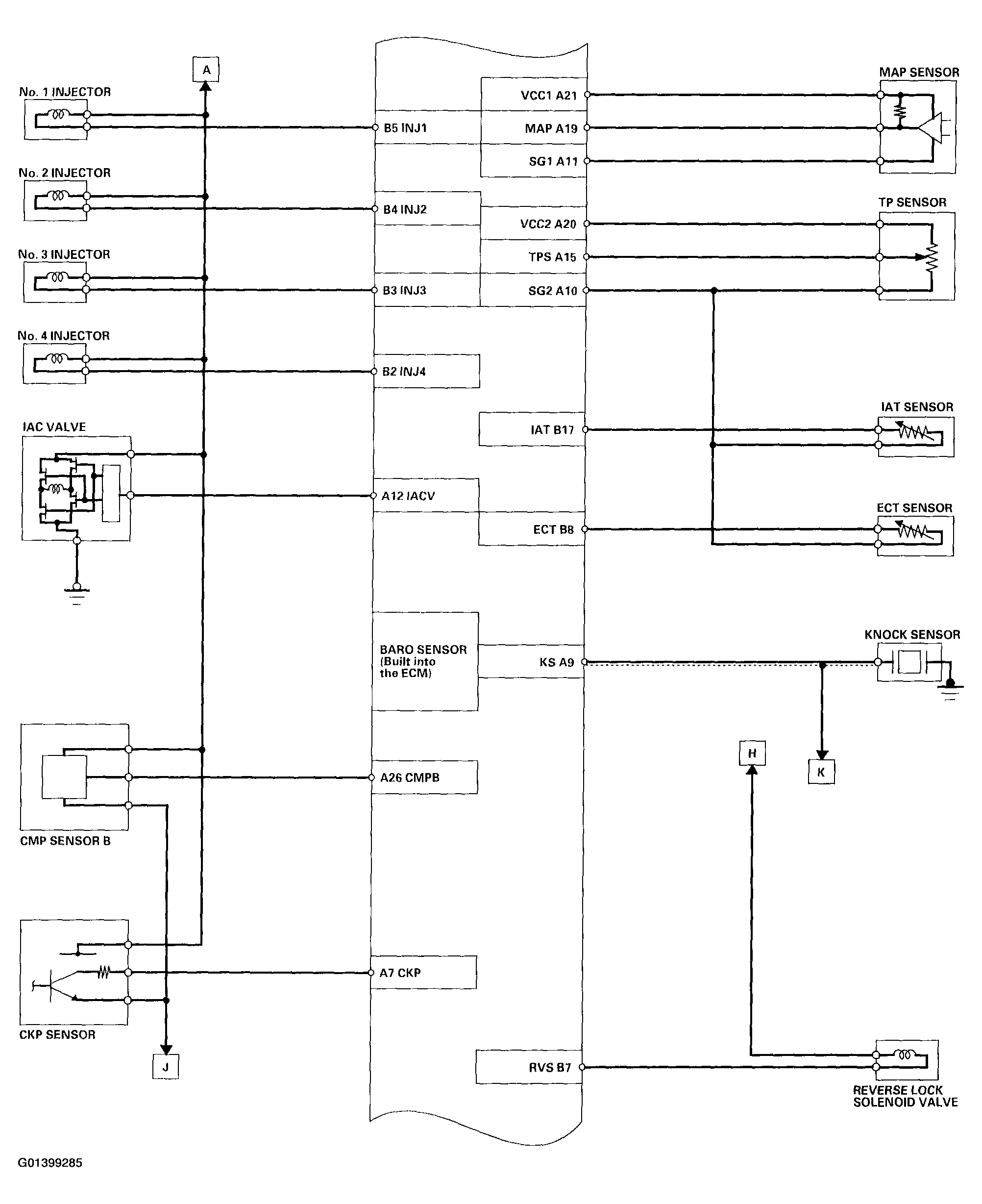

Fig 2: ECM Electrical Connections (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

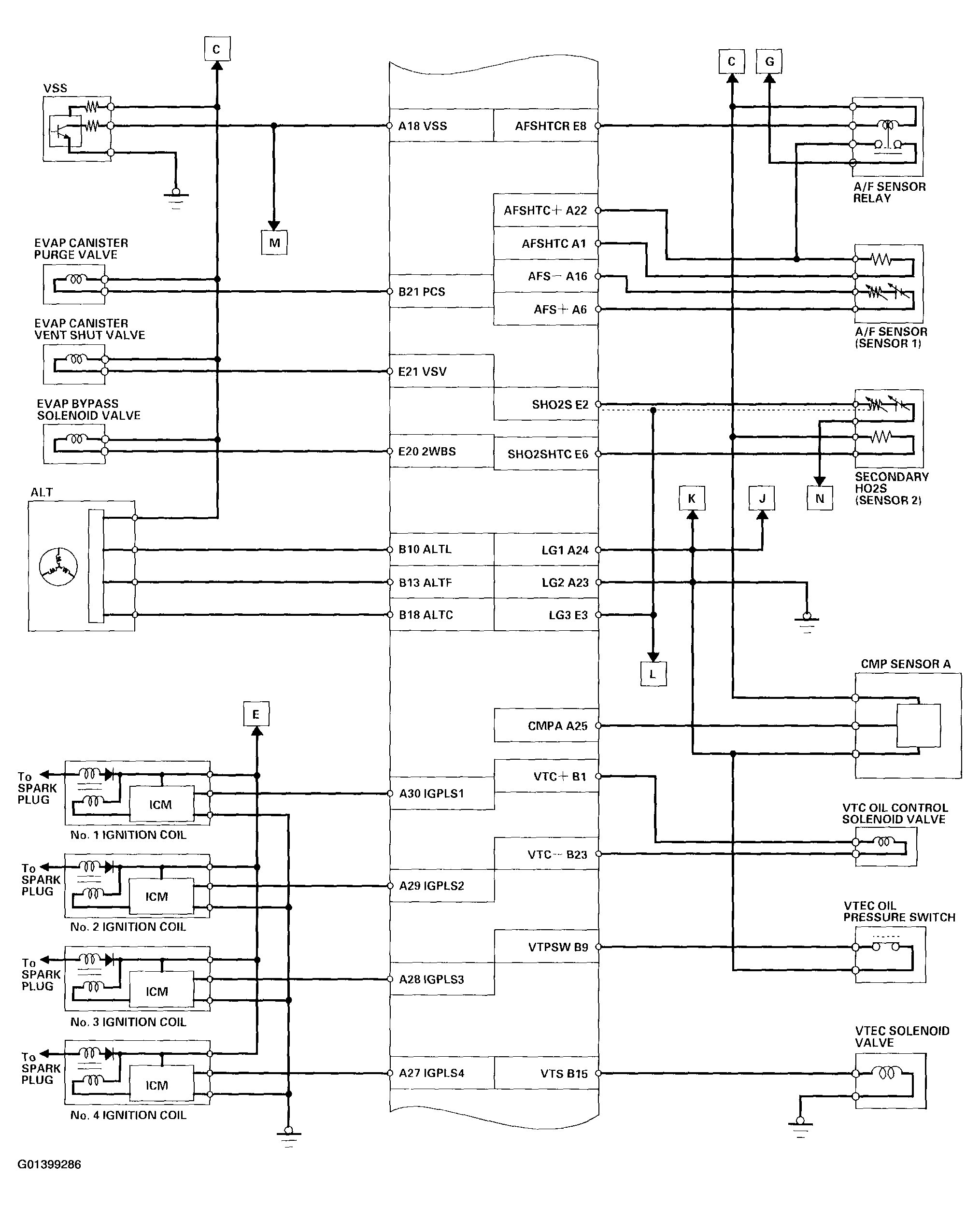

Fig 3: ECM Electrical Connections (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

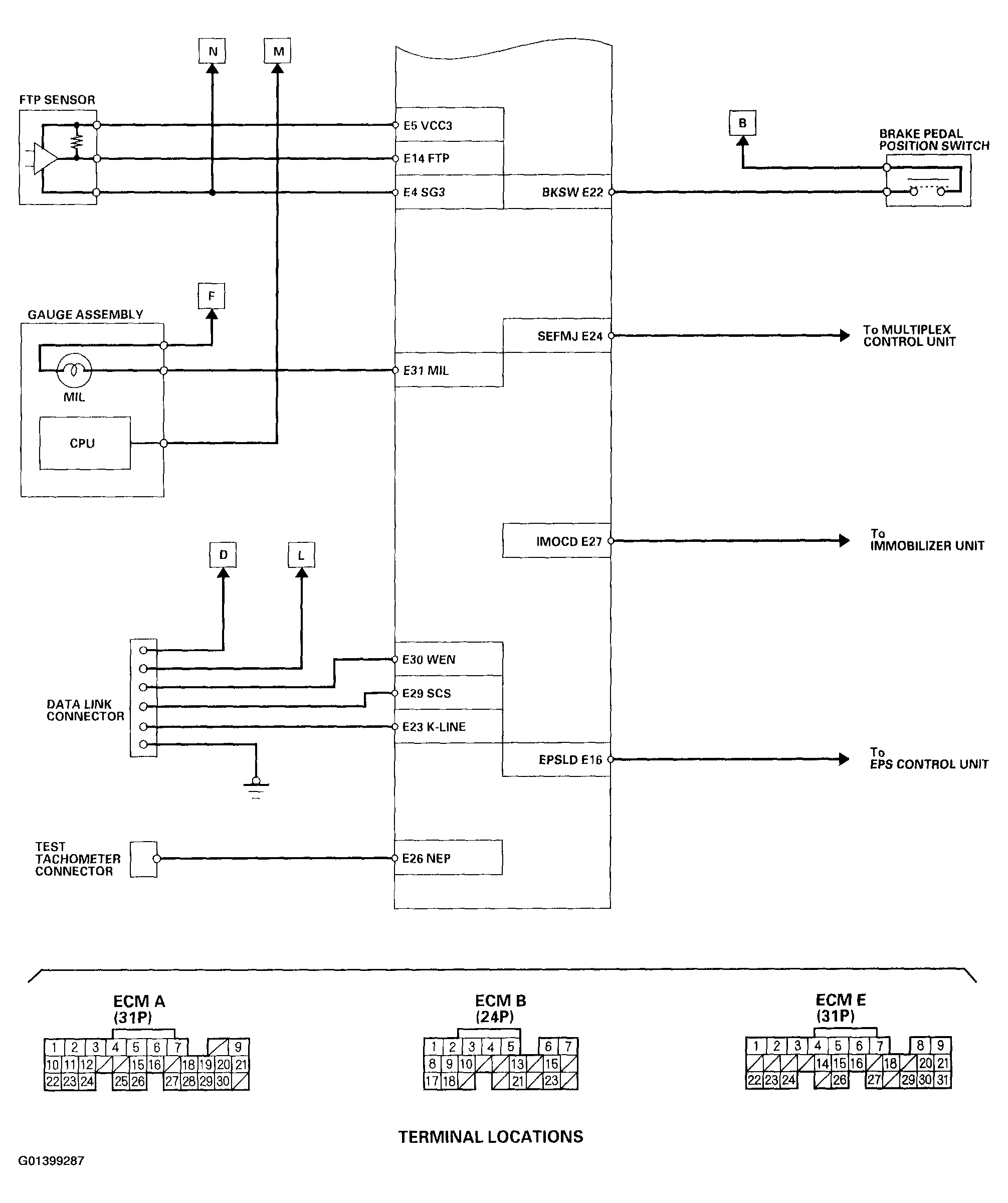

Fig 4: ECM Electrical Connections (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
