Ignition Coil Removal/Installation

  1. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

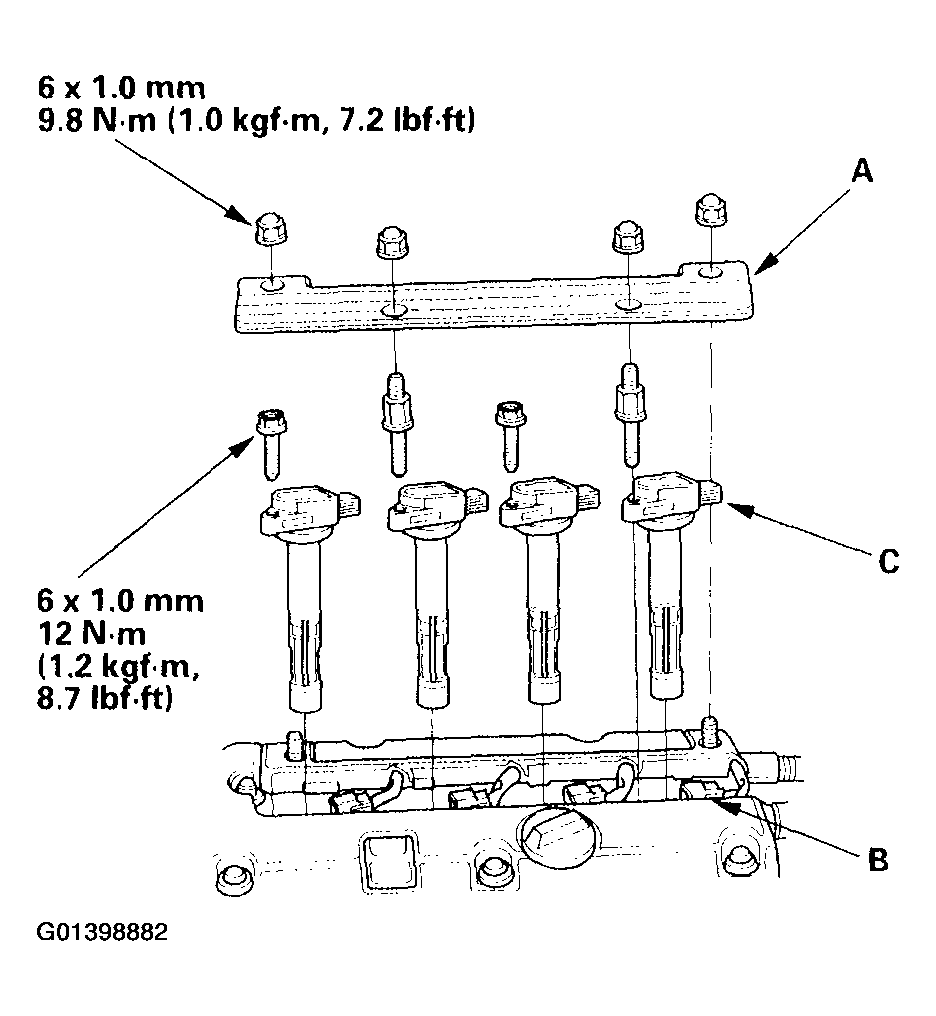

    Fig 1: Removing The Ignition Coils
    G01398882Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the ignition coils in the reverse order of removal.
