Ignition System (Hatchback)
>>
Circuit Diagram
Circuit Diagram

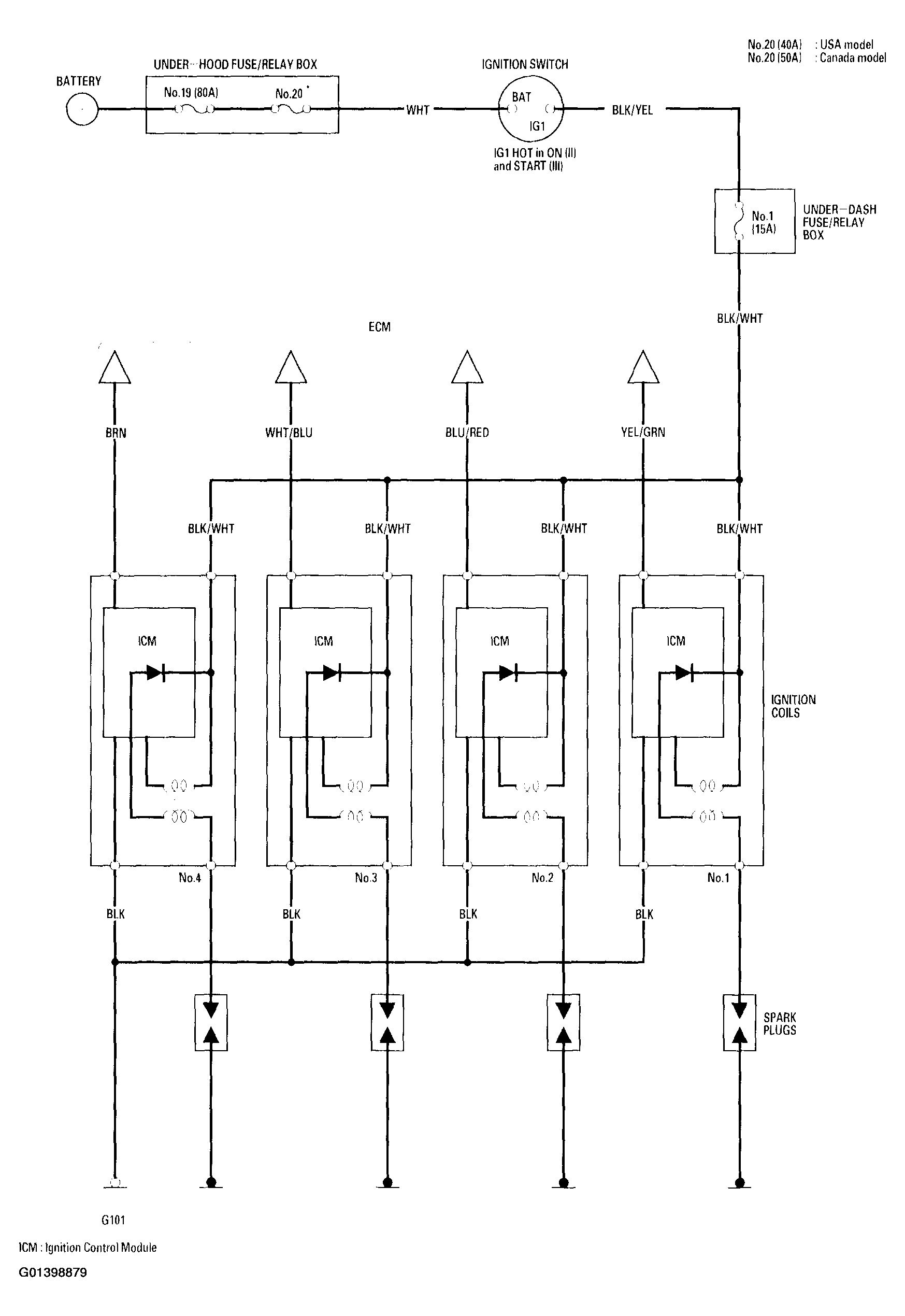

Fig 1: Ignition System Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
