Passenger's Window Motor Test

  1. Remove the passenger's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the passenger's power window motor.

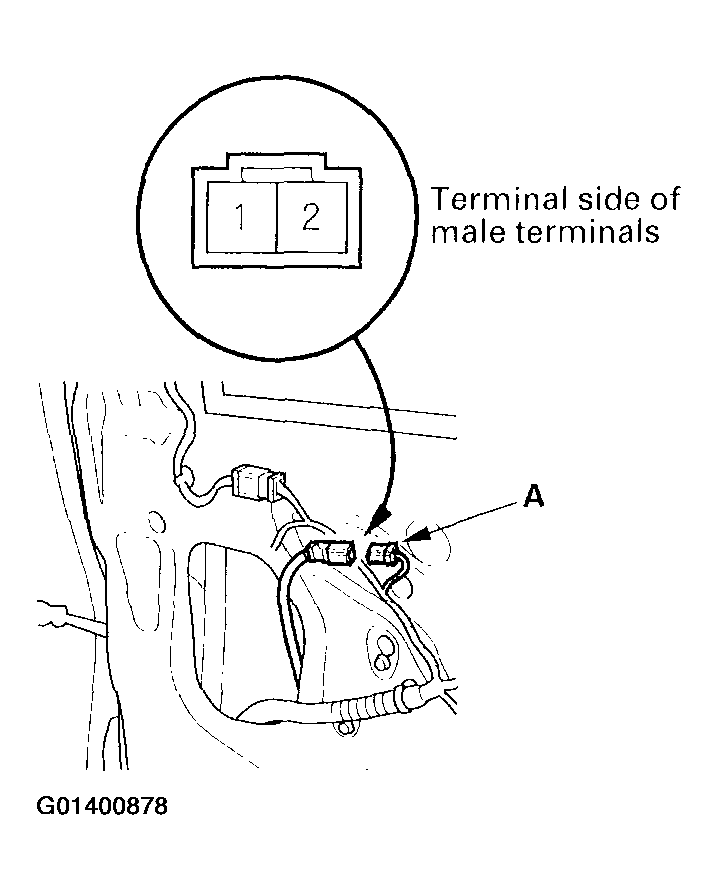

    Fig 1: Disconnecting The 2P Connector From The Passenger's Power Window Motor
    G01400878Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.
    Fig 2: Passenger's Window Motor Test Table
    G01400879Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace it.
