Power Mirror Switch Test

  1. Remove the driver's pocket (see DRIVER'S POCKET REMOVAL/INSTALLATION ).
  2. Reach through the pocket opening, and push out the power mirror switch (A).

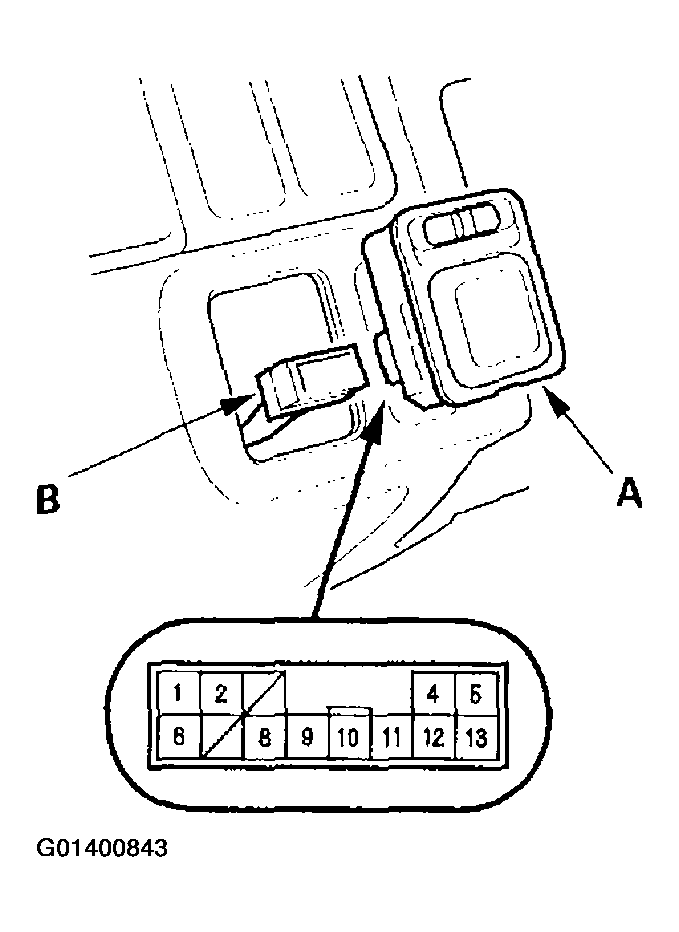

    Fig 1: Pushing Out The Power Mirror Switch & Identifying Terminals
    G01400843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 13P connector (B) from the switch.
  4. Check for continuity between the terminals in each switch position according to the table.

    Mirror Switch:

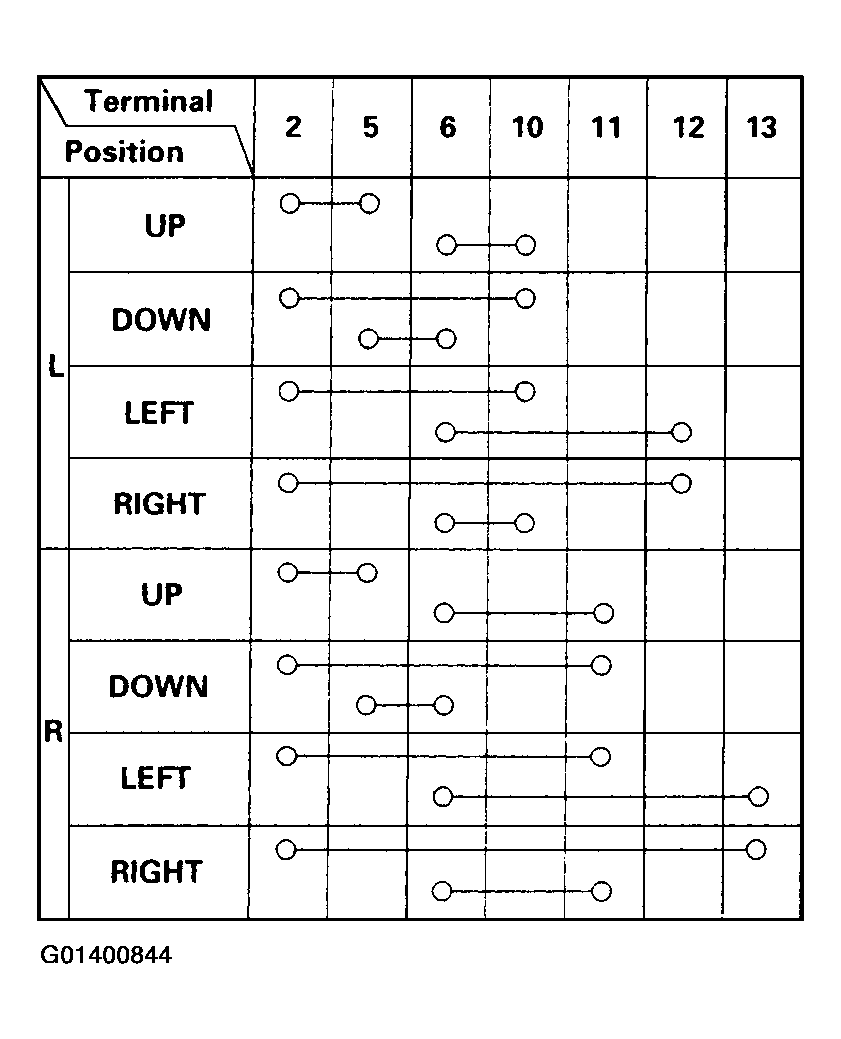

    Fig 2: Mirror Switch Continuity Test Table
    G01400844Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Defogger Switch (Canada):

    Fig 3: Defogger Switch Continuity Test Table (Canada)
    G01400845Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the power mirror switch.
