EOT Sensor Replacement

  1. Raise the vehicle, and remove the under-cover (see step 22 on ENGINE REMOVAL ).
  2. Disconnect the EOT sensor 2P connector.
  3. Remove the oil pressure switch (A) (see OIL PRESSURE SWITCH REPLACEMENT ).
  4. Remove the EOT sensor (B) from under the vehicle.

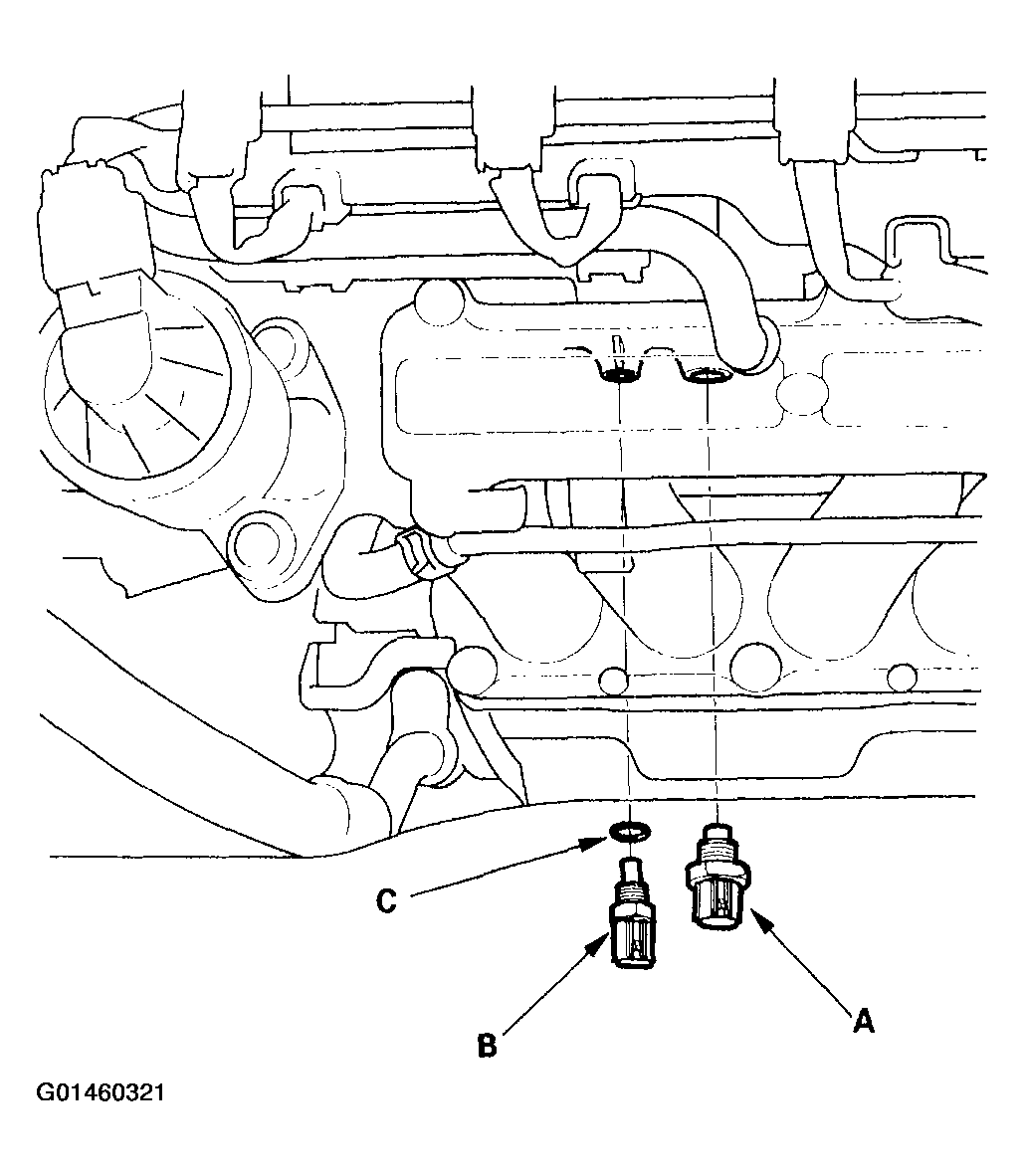

    Fig 1: Removing EOT Sensor From Under Vehicle
    G01460321Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the sensor in the reverse order of removal with a new O-ring (C).
