EOP Sensor Replacement

  1. Disconnect the EOP sensor 3P connector.
  2. Remove the EOP sensor (A) with a deep socket wrench.

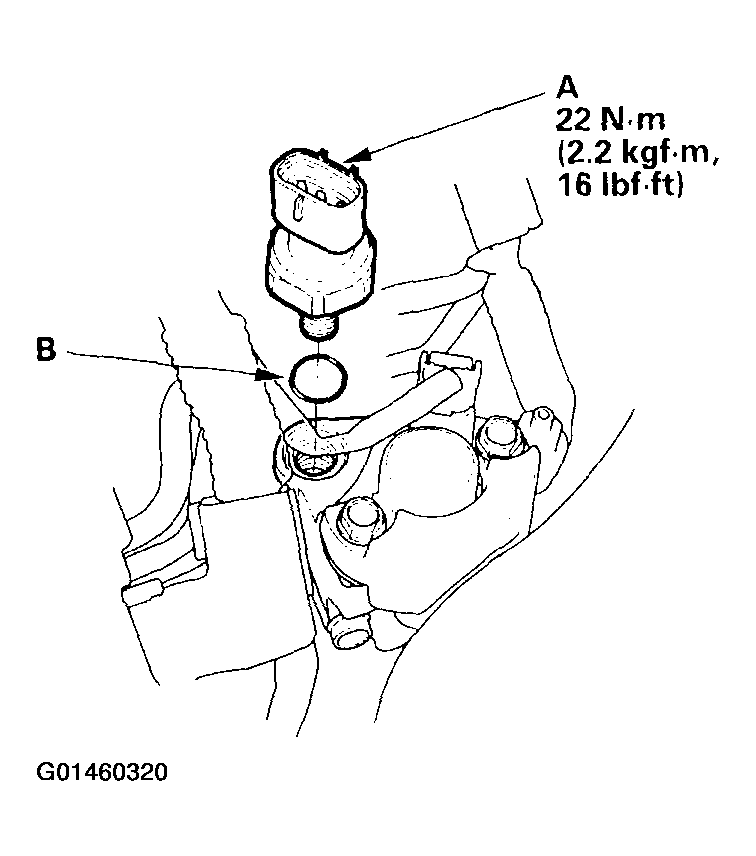

    Fig 1: Removing EOP Sensor With Deep Socket Wrench
    G01460320Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal with a new O-ring (B).
