Component Location Index

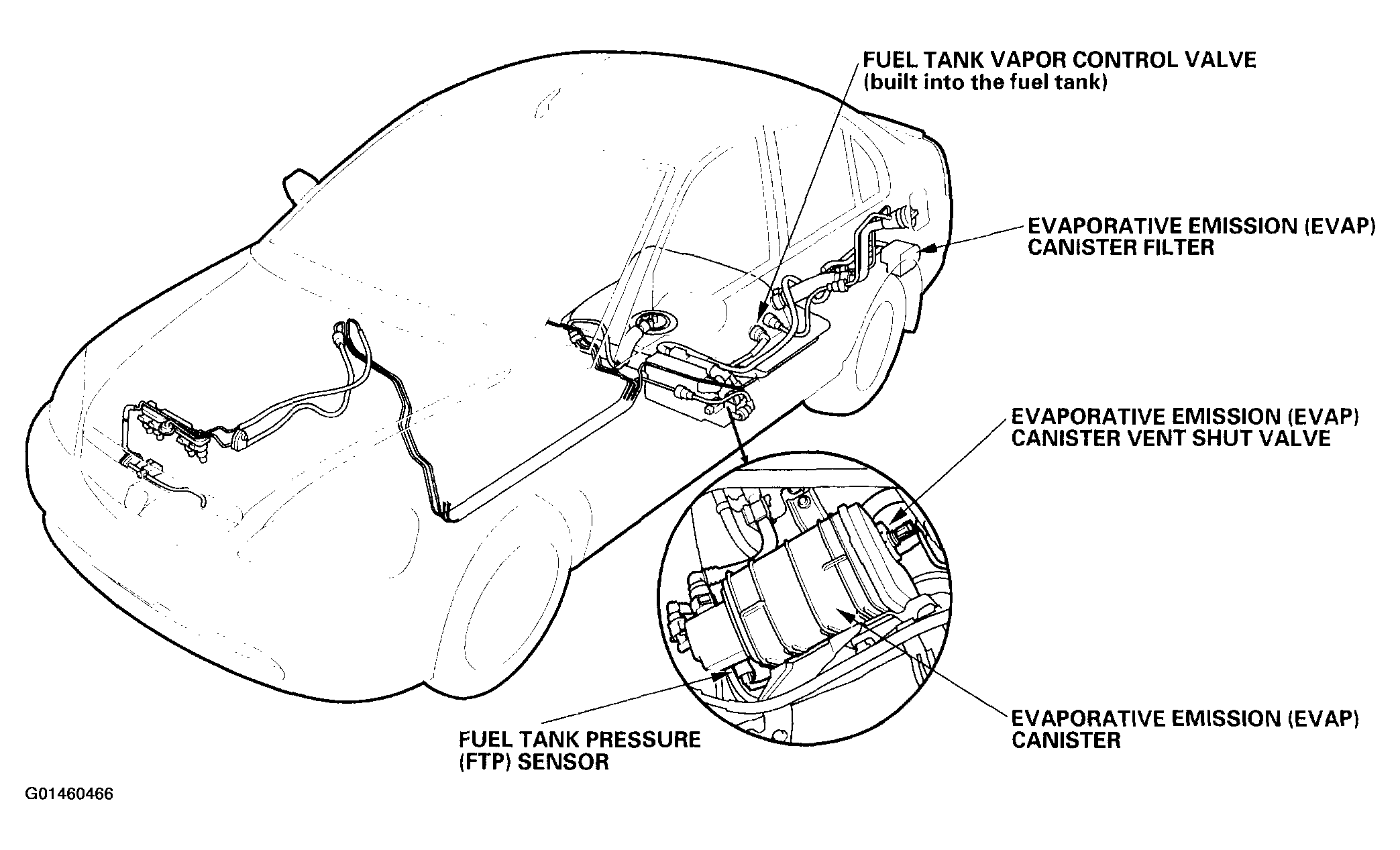

Fig 1: Identifying EVAP System Components (All Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

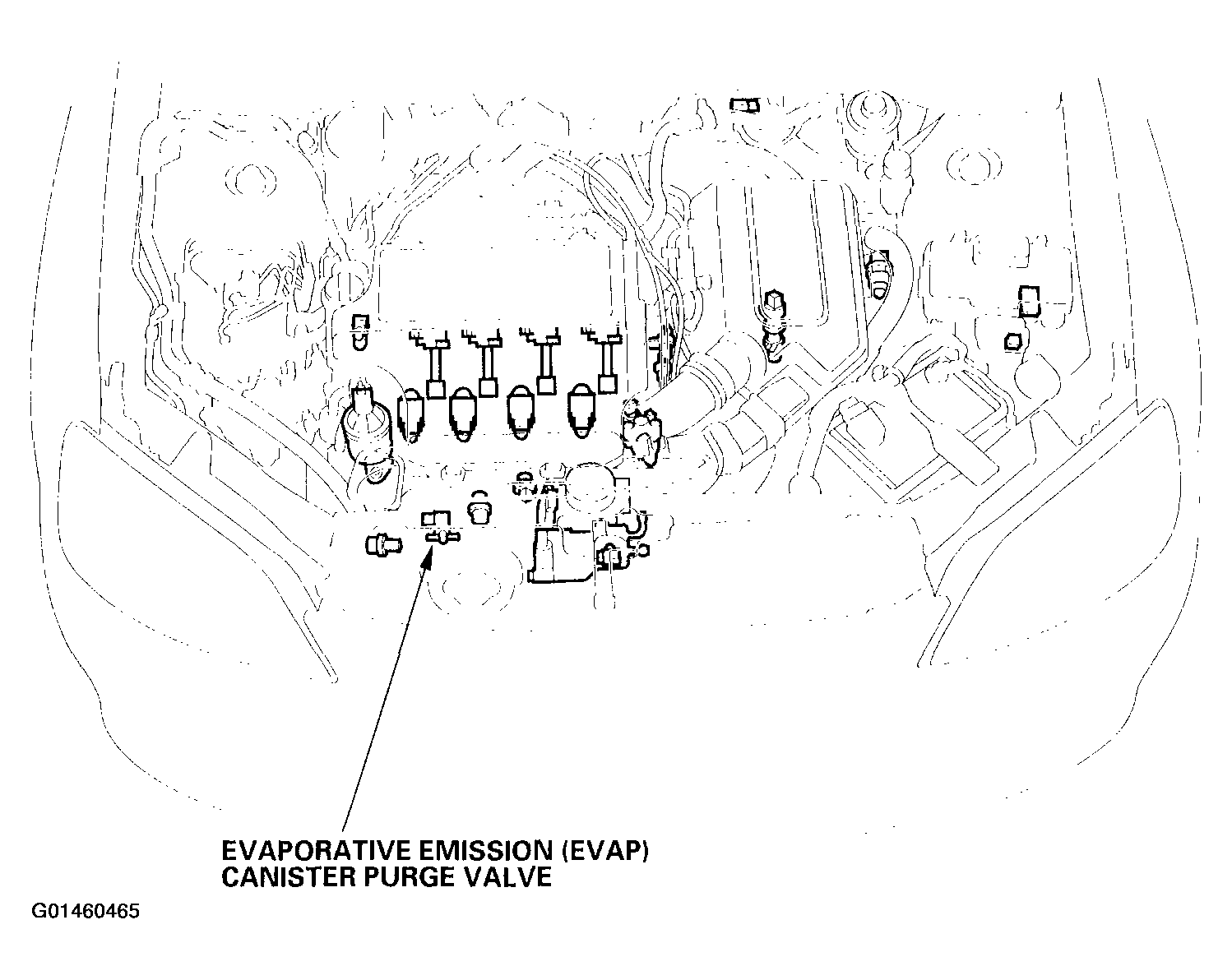

Fig 2: Identifying EVAP System Components (AT-PZEV (SULEV) Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

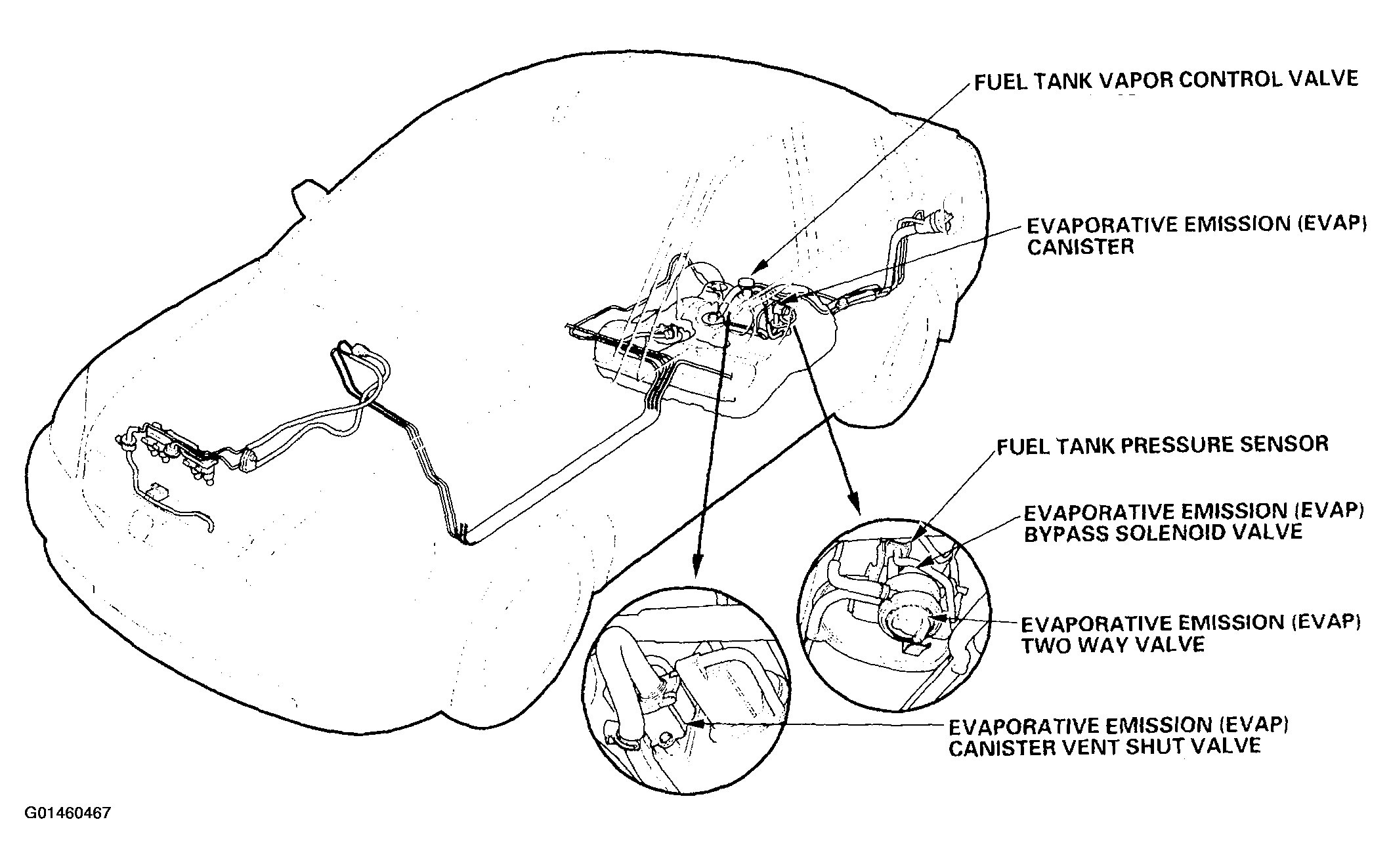

Fig 3: Identifying EVAP System Components (Except AT-PZEV (SULEV) Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
