Component Location Index

WARNING: This page is about a different variant/trim than selected.

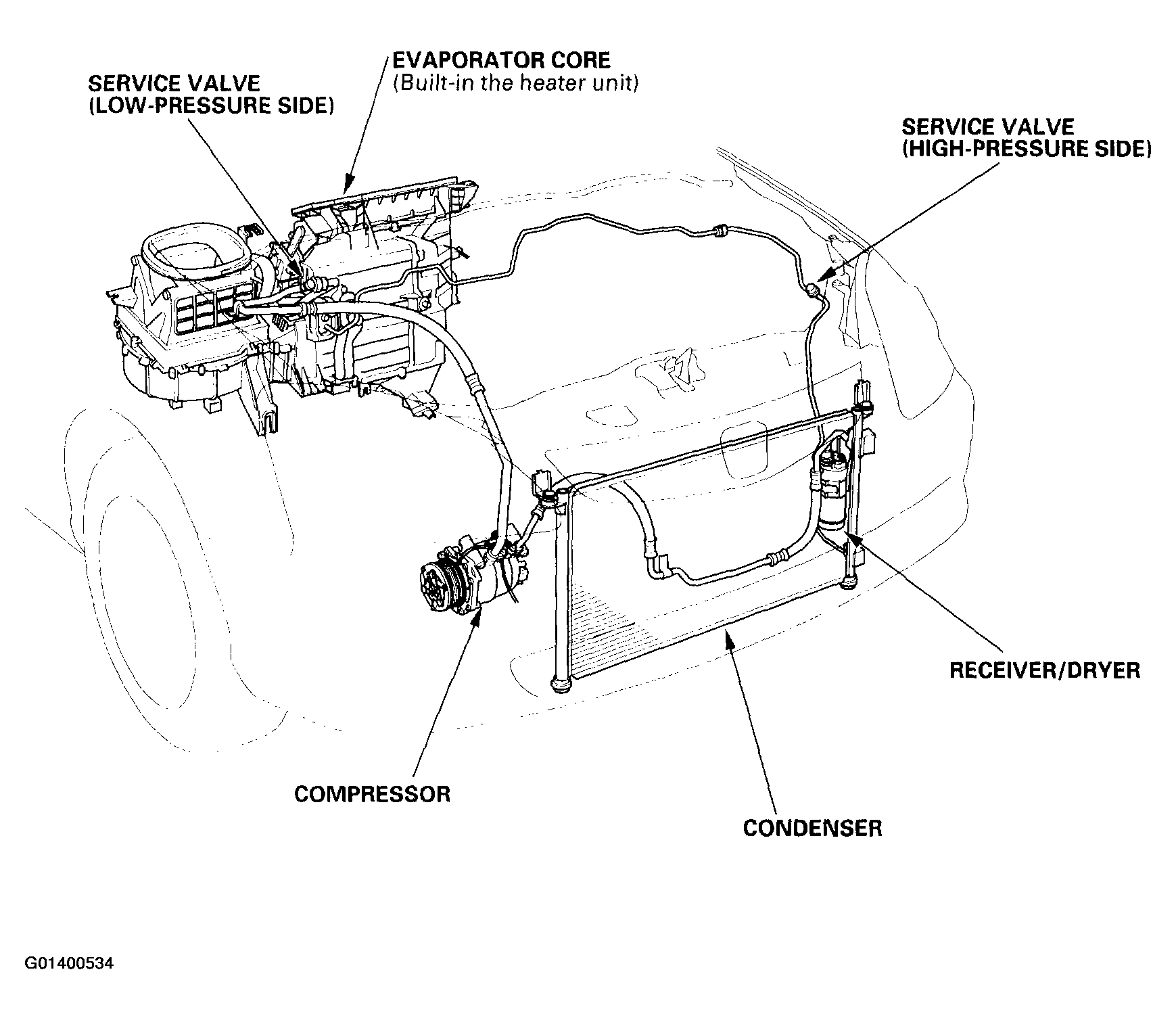

Fig 1: Locating Heating/Air Conditioning Components (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

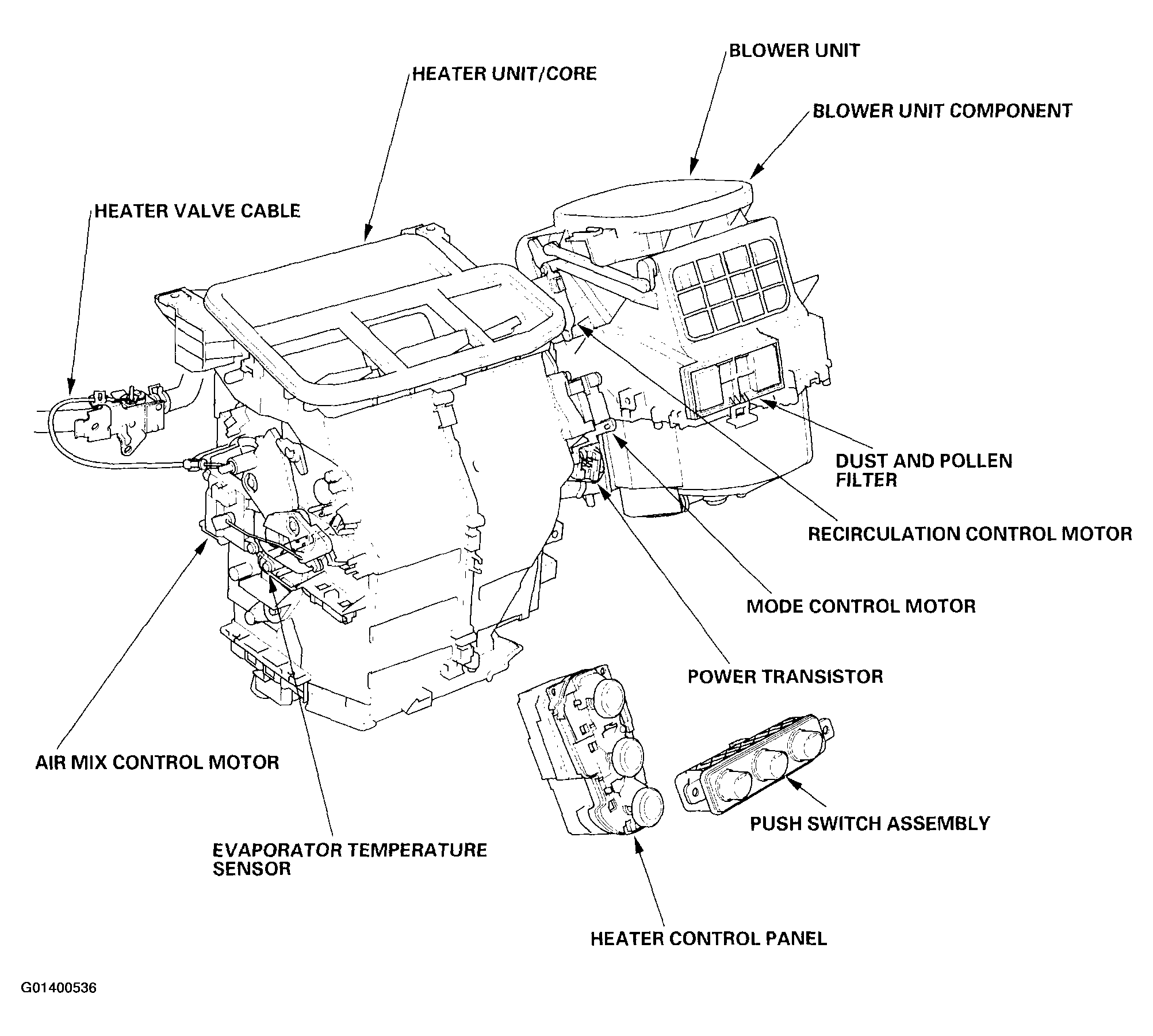

Fig 2: Locating Heating/Air Conditioning Components (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

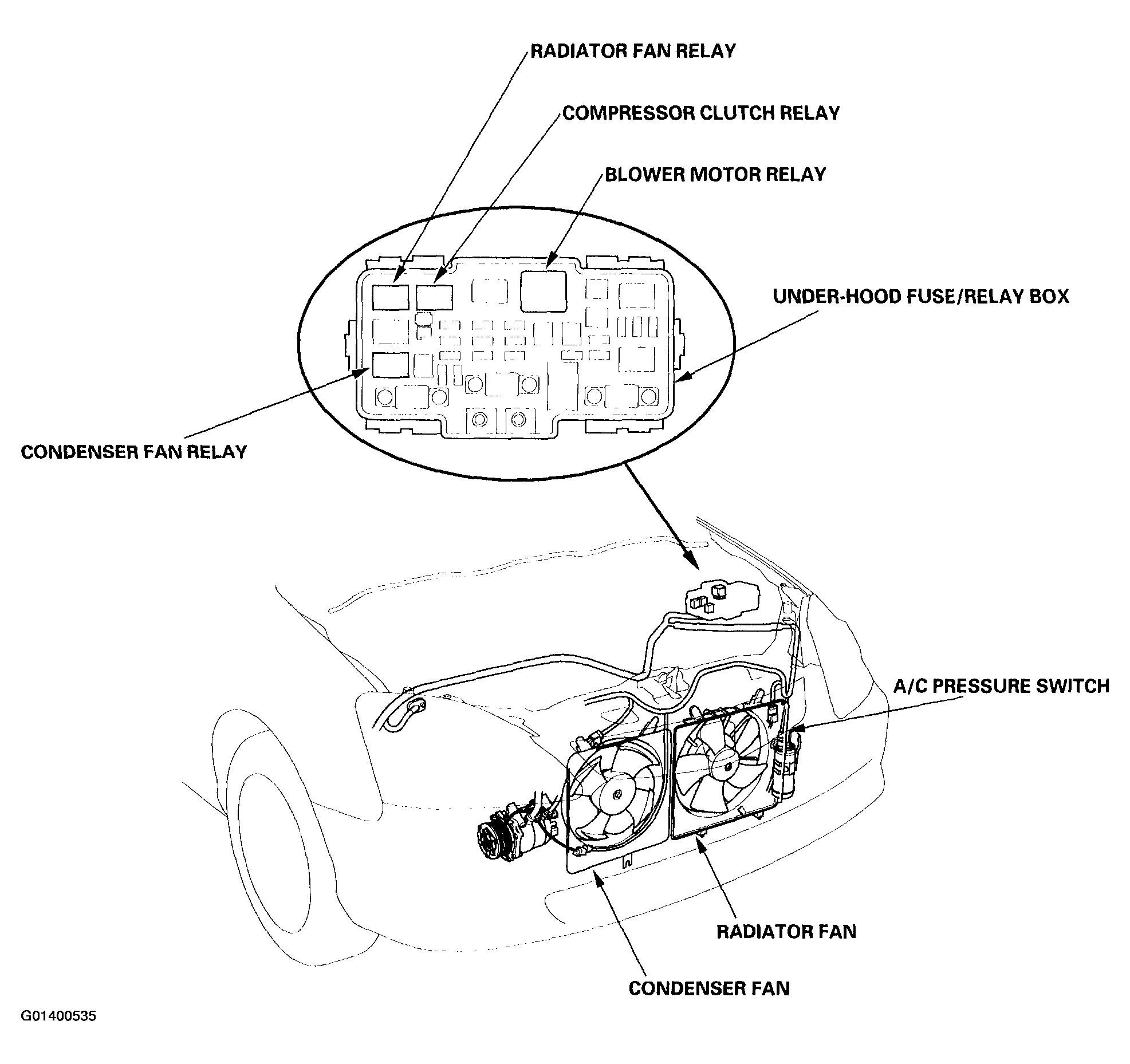

Fig 3: Locating Heating/Air Conditioning Components (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
