Blower Unit Component Replacement

Note these items when overhauling the blower unit:

• The recirculation control motor (A), the power transistor (B), the blower motor (C), and the dust and pollen filters (D) can be replaced without removing the blower unit.
• Before reassembly, make sure that the recirculation control linkage and doors move smoothly.
• After reassembly, make sure the recirculation control motor runs smoothly (see RECIRCULATION CONTROL MOTOR TEST ).

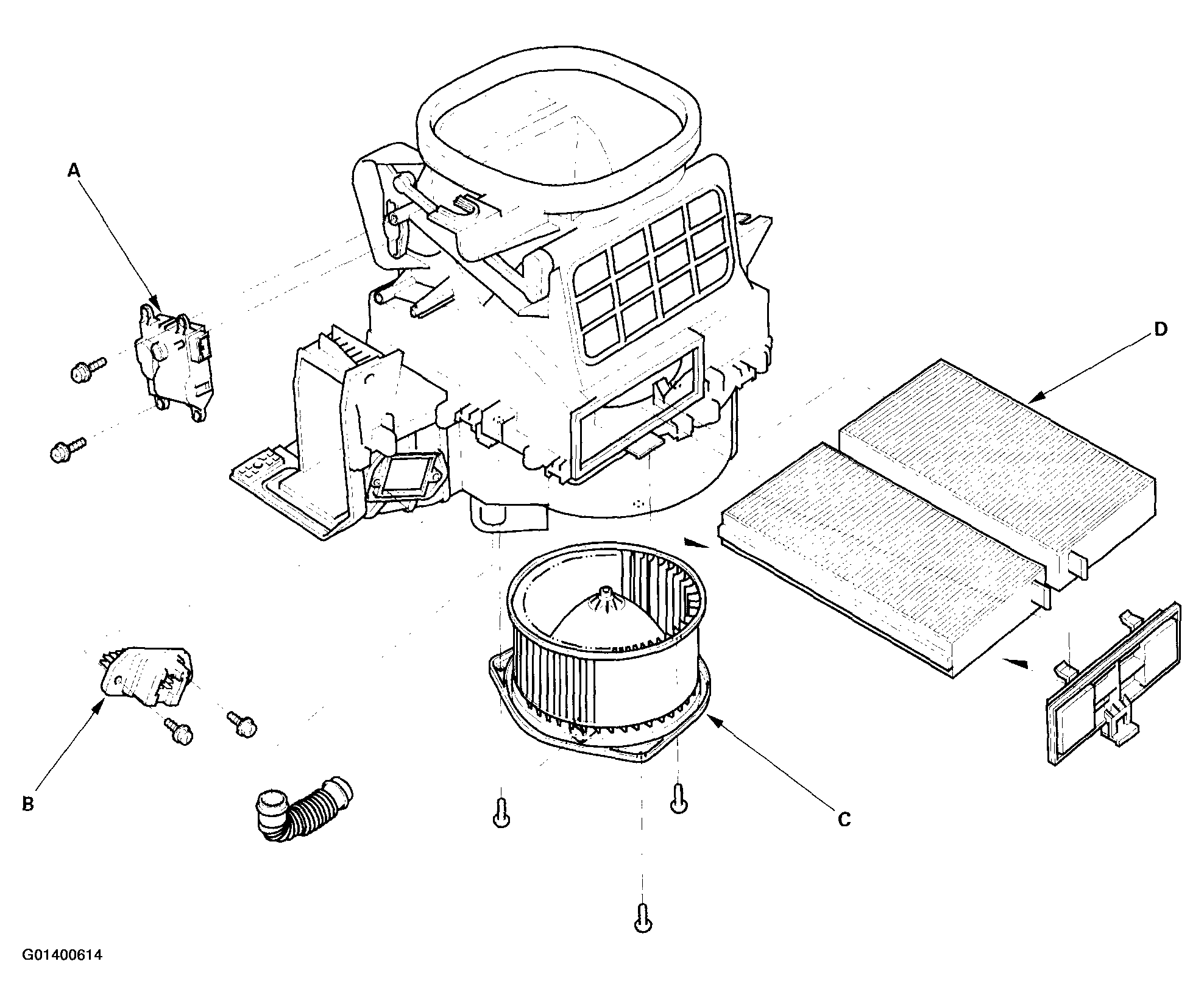

  Fig 1: Removing Recirculation Control Motor, The Power Transistor, The Blower Motor, And The Dust And Pollen Filters

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
